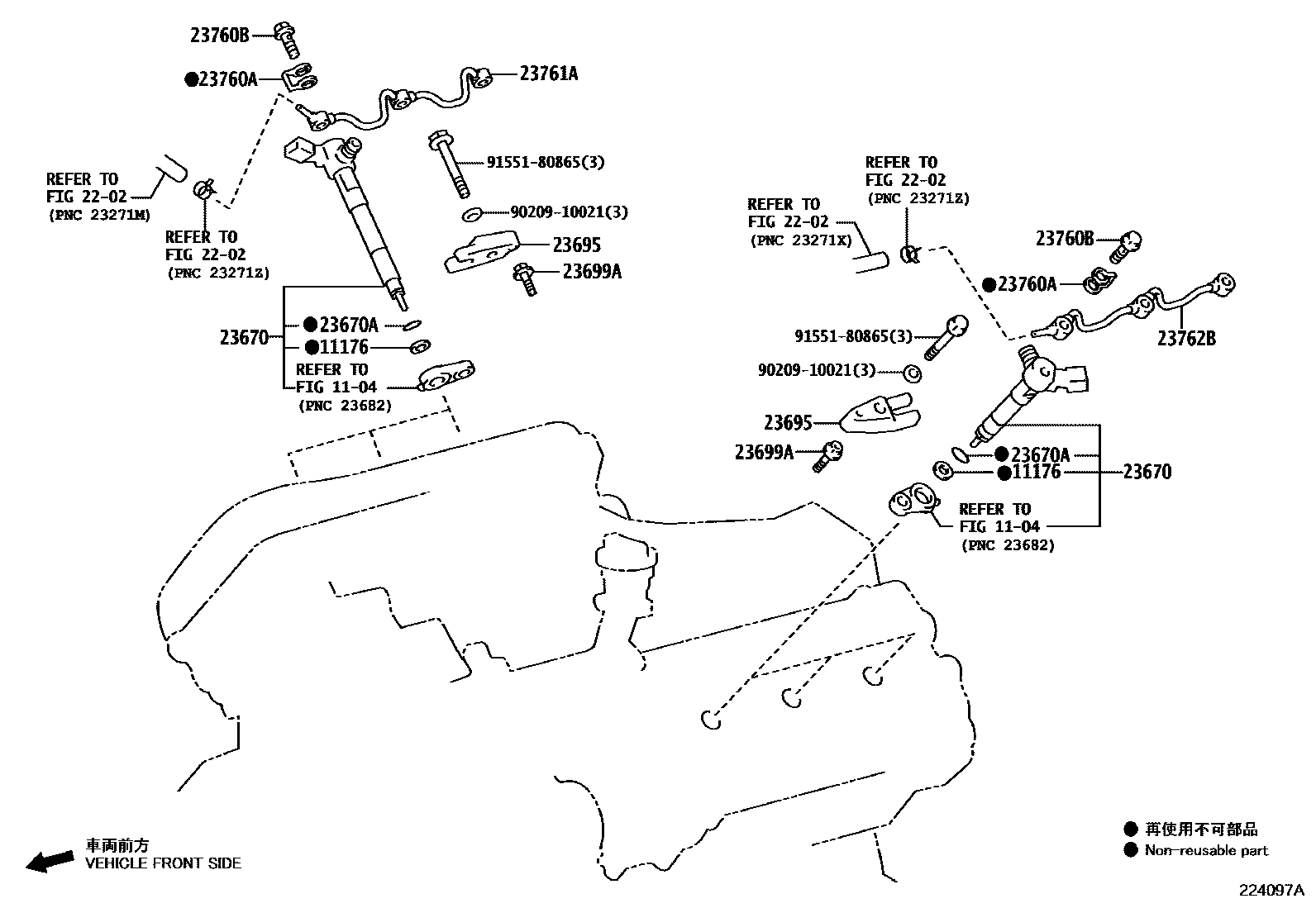

INJECTION NOZZLE

0001 1 0002 1W(EXHAUST FUEL ADDITION INJEC

1104

11176SEAT, INJECTION NOZZLE

main11176-33010iF33AFTV..FJA310202112-202411

2202

23670INJECTOR ASSY

main23670-59065iF33AFTV..FJA310202112-202307

sub23670-59066

main23670-59066iF33AFTV..FJA310202307-202411

23670ARING, O(FOR INJECTOR ASSY)

main96721-19017iF33AFTV..FJA310202112-202411

23695CLAMP, NOZZLE HOLDER, NO.1

main23695-11010iF33AFTV..FJA310202112-202411

23699ASEAT, NOZZLE HOLDER CLAMP

main23699-11010iF33AFTV..FJA310202112-202411

23760AGASKET

main90430-06013iF33AFTV..FJA310202112-202411

23760BBOLT, UNION(FOR NOZZLE LEAKAGE PIPE)

main90401-06002iF33AFTV..FJA310202112-202411

23761APIPE, NOZZLE LEAKAGE, NO.1

main23761-52010iF33AFTV..FJA310202112-202411

23762BPIPE, NOZZLE LEAKAGE, NO.2

main23762-52010iF33AFTV..FJA310202112-202411

9020910021

main90209-10021

9155180865

main91551-80865

13 parts on this diagram · 2 diagrams in section
