MANIFOLD
1703
17106PIPE SUB-ASSY, EXHAUST CROSSOVER
17111MANIFOLD, INTAKE
17112MANIFOLD, INTAKE, NO.2
17118STAY, MANIFOLD
17119STAY, MANIFOLD, NO.2
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17169INSULATOR, EXHAUST MANIFOLD HEAT, NO.3
EXH.EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS&EGR),*680
EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)
17173GASKET, EXHAUST MANIFOLD TO HEAD
17173BGASKET, EXHAUST MANIFOLD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2
17179GASKET, EXHAUST MANIFOLD, NO.2
17198GASKET, EXHAUST MANIFOLD, NO.2
17451BGASKET, EXHAUST PIPE
17853BINSULATOR, INTAKE MANIFOLD
2201
2502
25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD
EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)
sub25051-62030
EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)
sub25051-62040
EXH.EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS&EGR),*680
EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)
25617CPLATE, EGR HOLE COVER
25628BGASKET, EGR INLET
9010508467
main90105-08467
9010508538
main90105-08538
9012606028
main90126-06028
9012608009
main90126-08009
9017908119
main90179-08119
9038908142
main90389-08142
9155281025
main91552-81025
9167180616
main91671-80616
9167180820
main91671-80820
9167180830
main91671-80830
9415180600
main94151-80600

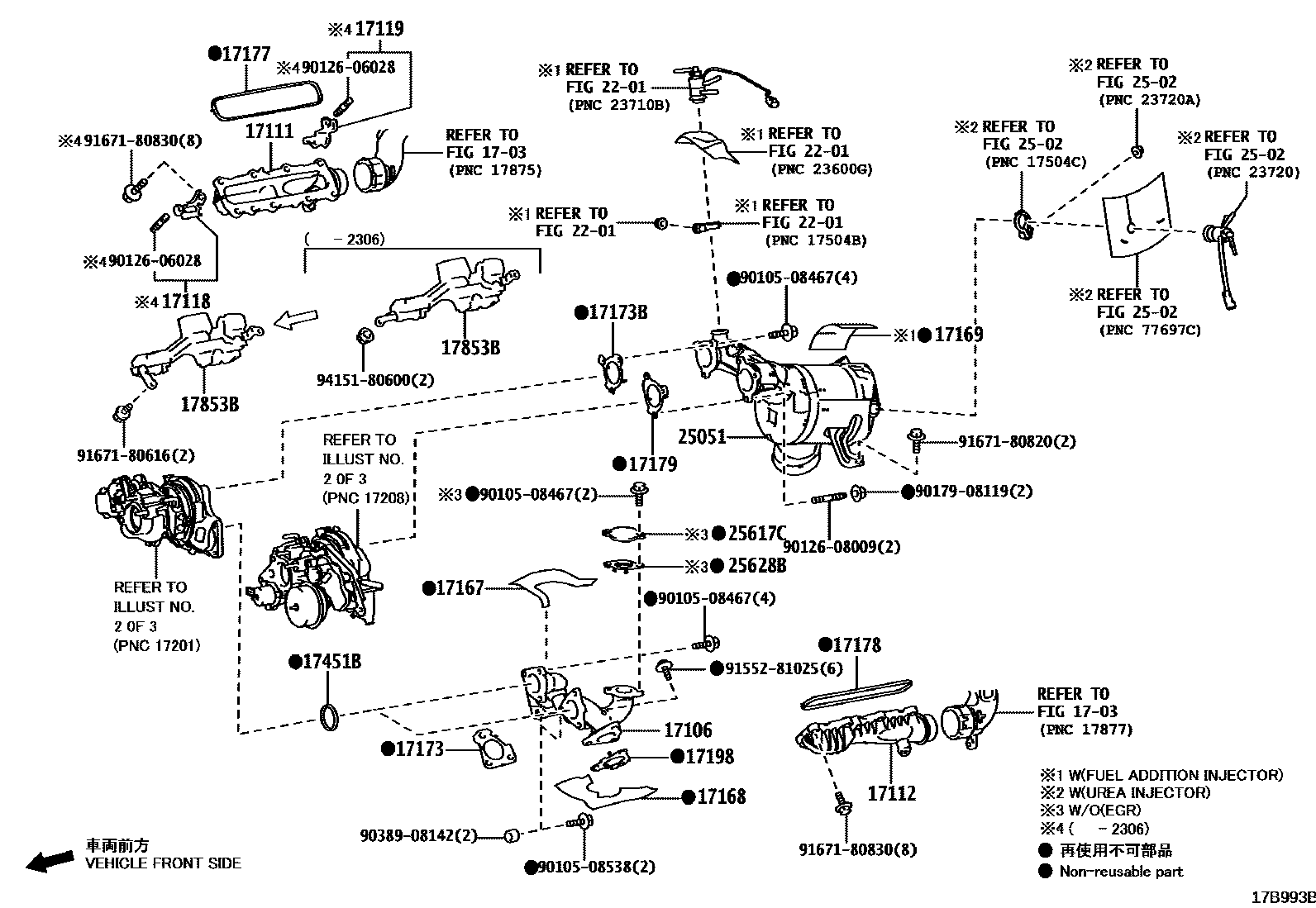

33 parts on this diagram · 8 diagrams in section
