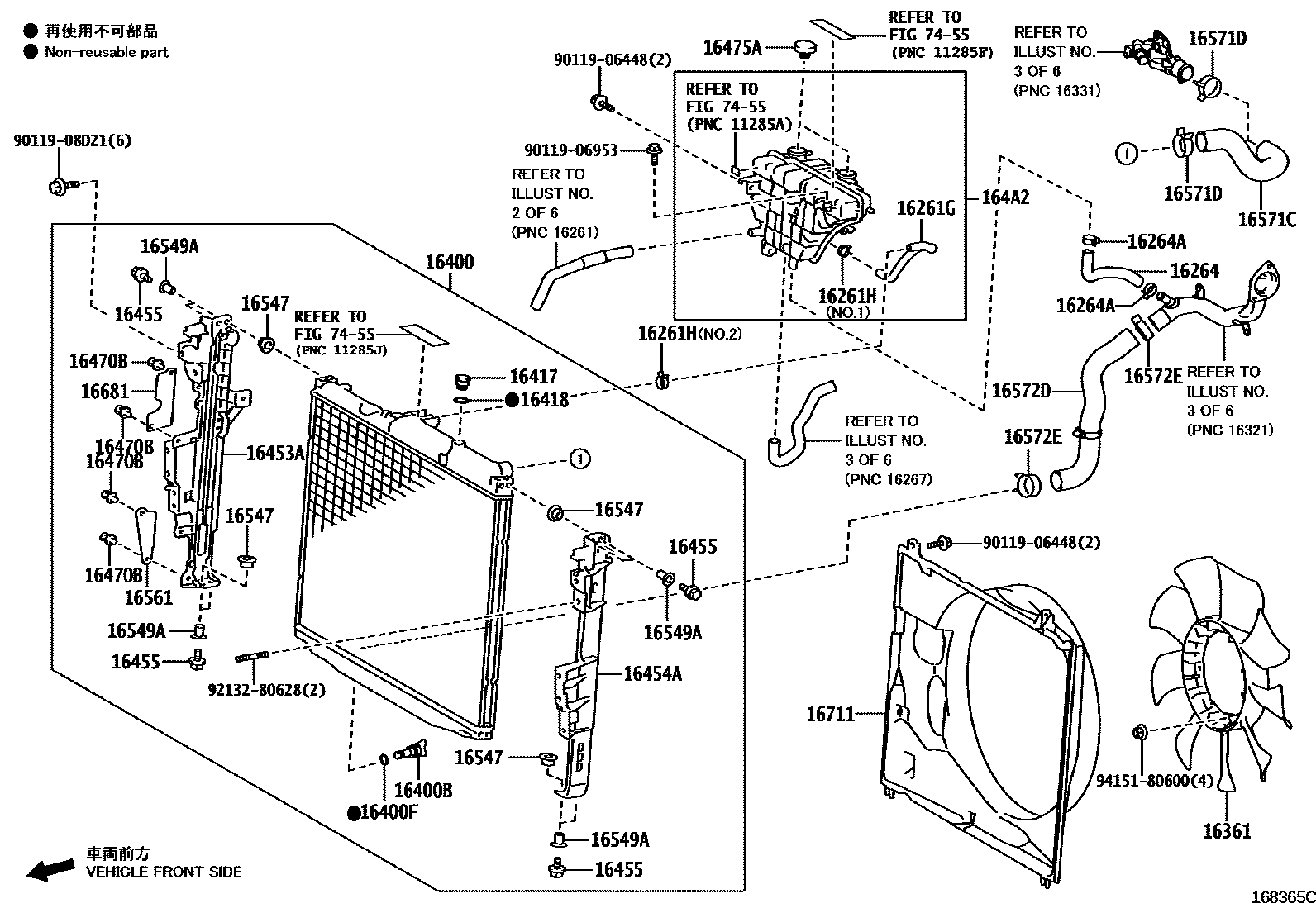

RADIATOR & WATER OUTLET

0001 1RADIATOR 0002 1INTERCOOLER COOLING RADIATOR 0003 1W(EXHAUST FUEL ADDITION INJEC0004 1W/O(EXHAUST FUEL ADDITION INJ0005 1TURBO PIPING 0006 1W(EGR PIPING) 0007 1W/O(EGR PIPING) 0008 1W(UREA INJECTOR) 0009 1W(EXHAUST FUEL ADDITION INJEC0010 1RADIATOR SIDE 0011 1RADIATOR SIDE 0012 1INTERCOOLER COOLING PIPE 0013 1INTERCOOLER COOLING PIPE 0014 1ENGINE SIDE(1/2) 0016 1ENGINE SIDE(2/2)

16261HOSE, WATER BY-PASS

main16261-70170iF33AFTV..FJA310202112-202411

16261GHOSE, WATER BY-PASS, NO.1

main16261-70160iF33AFTV..FJA310202112-202411

16261HCLIP(FOR WATER BY-PASS HOSE NO.1)

main96136-51901iF33AFTV..FJA310202112-202411

NO.2:REFER ILLUST.

main96136-51901iF33AFTV..FJA310202112-202202

NO.1:REFER ILLUST.

main96138-41901iV35AFTS..VJA310202203-202411

NO.1:REFER ILLUST.

16264HOSE, WATER BY-PASS, NO.2

main16264-52030iF33AFTV..FJA310202112-202411

main16264-70160iV35AFTS..VJA310,VJH310202112-202411

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main96138-42501iF33AFTV..FJA310202112-202411

main96138-52501iV35AFTS..VJA310,VJH310202112-202411

16361FAN

main16361-52030iF33AFTV..FJA310202112-202411

main16361-70090iV35AFTS..VJA310,VJH310202112-202411

16400RADIATOR ASSY

main16400-52070iF33AFTV..FJA310202112-202411

main16400-70760iV35AFTS..VJA310202112-202411

main16400-70770iV35AFTS..VJH310202411

16400BPLUG, RADIATOR DRAIN COCK

main16417-30170iF33AFTV..FJA310202112-202411

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-15520iF33AFTV..FJA310202112-202411

16417COCK

main16417-70730iF33AFTV..FJA310202112-202411

16418PACKING

main16418-70730iV35AFTS..VJA310202112-202411

16453APLATE, RADIATOR SIDE SUPPORT, RH

main16453-70731iF33AFTV..FJA310202112-202411

16454APLATE, RADIATOR SIDE SUPPORT, LH

main16454-70730iF33AFTV..FJA310202112-202411

16455BOLT, RADIATOR SIDE SUPPORT PLATE

main16455-50370iF33AFTV..FJA310202112-202411

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-07215iV35AFTS..VJA310202112-202411

16475ACAP, RESERVE TANK

main16475-28140iV35AFTS..VJA310,VJH310202112-202411

164A2TANK, RESERVE SEALED W/O CAP

main164A2-70020iF33AFTV..FJA310202112-202411

16547BUSH, RADIATOR SUPPORT, NO.1

main16547-70730iF33AFTV..FJA310202112-202411

16549ACOLLAR, RADIATOR SUPPORT, NO.1

main16549-70730iF33AFTV..FJA310202112-202411

16561SEAL, RADIATOR TO SUPPORT, NO.1

main16561-70030iF33AFTV..FJA310202112-202411

16571CHOSE, RADIATOR, NO.1

main16571-52030iF33AFTV..FJA310202112-202411

main16571-70430iV35AFTS..VJA310202112-202411

16571DCLIP, RADIATOR HOSE, NO.1

main96136-54801iV35AFTS..VJA310,VJH310202112-202411

16572DHOSE, RADIATOR, NO.2

main16572-52050iF33AFTV..FJA310202112-202411

main16572-70360iV35AFTS..VJA310202112-202411

16572ECLIP, RADIATOR HOSE, NO.2

main96136-54801iV35AFTS..VJA310,VJH310202112-202411

16681PLATE, RADIATOR UPPER AIR GUIDE

main16681-70010iV35AFTS..VJA310,VJH310202112-202411

16711SHROUD, FAN

main16711-52031iF33AFTV..FJA310202112-202411

main16711-70281iV35AFTS..VJA310202112-202411

main16711-70310iV35AFTS..VJH310202411

7455

9011906448

main90119-06448

9011906953

main90119-06953

9011908D21

main90119-08D21

9213280628

main92132-80628

9415180600

main94151-80600

32 parts on this diagram · 15 diagrams in section
