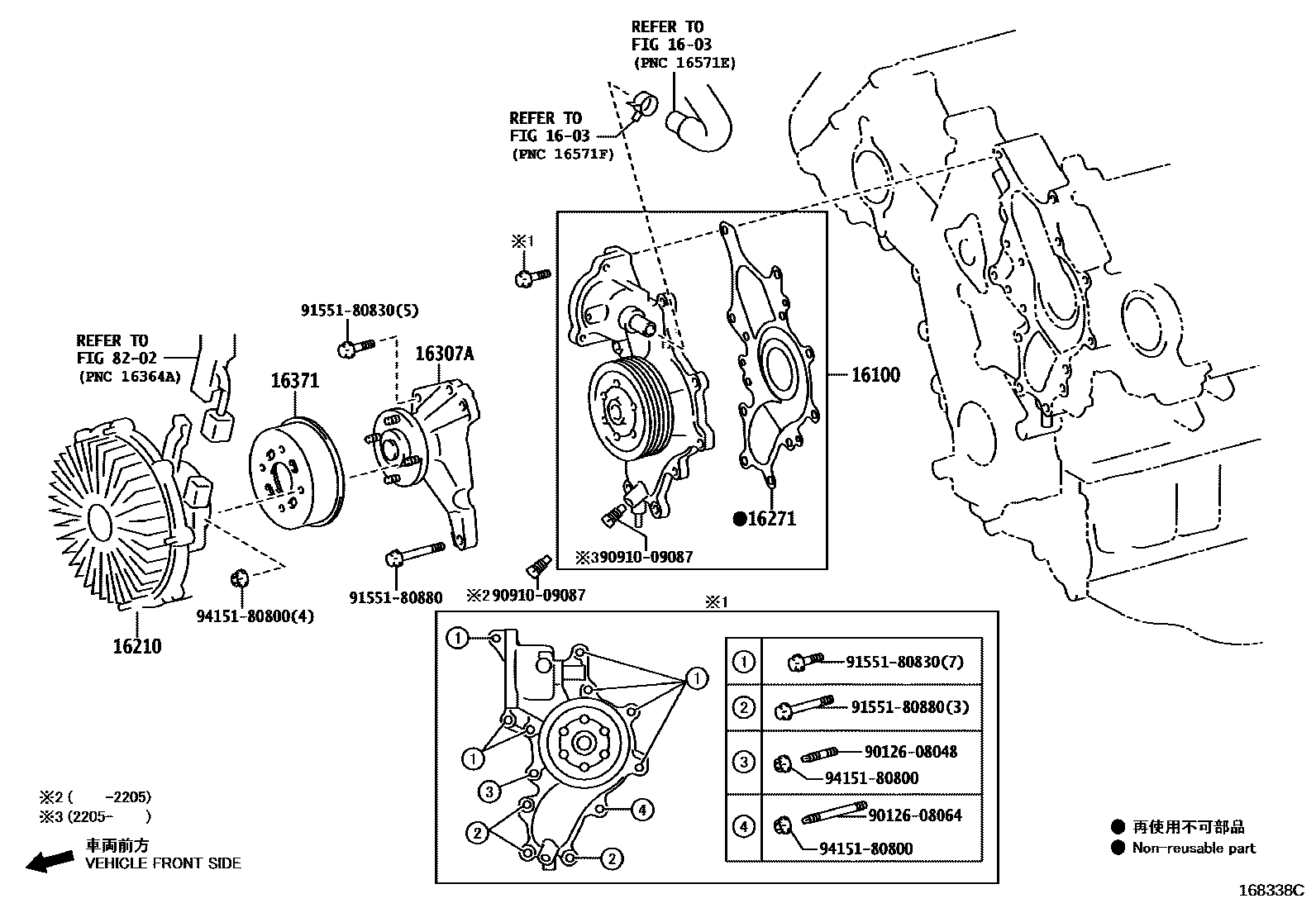

WATER PUMP

0001 1 0002 1

1603

16100PUMP ASSY, ENGINE WATER

main16100-59375iF33AFTV..FJA310¥11,000202112-202205

sub16100-69555¥11,000

main16100-69555iF33AFTV..FJA310¥11,000202205-202411

main16100-79525iV35AFTS..VJA310,VJH310¥12,000202112-202411

16210COUPLING ASSY, FLUID

main16210-52030iF33AFTV..FJA310¥25,500202112-202411

main16210-70110iV35AFTS..VJA310¥28,100202112-202407

sub16210-70111¥25,500

main16210-70111iV35AFTS..VJA310¥25,500202408-202411

16271GASKET, WATER PUMP

main16271-52010iF33AFTV..FJA310¥2,550202112-202411

main16271-70020iV35AFTS..VJA310,VJH310¥370202112-202411

NO.2

main16271-70030iV35AFTS..VJA310,VJH310¥1,740202112-202411

NO.1

16307ABRACKET SUB-ASSY, FAN

main16307-52010iF33AFTV..FJA310¥13,300202112-202411

16371PULLEY, FAN

main16371-0W010iV35AFTS..VJA310¥2,560202112-202411

main16371-51020iF33AFTV..FJA310¥1,990202112-202411

8202

9012608048

main90126-08048¥80

9012608064

main90126-08064¥120

9091009087

main90910-09087¥230

9155180830

main91551-80830¥80

9155180880

main91551-80880¥120

9415180800

main94151-80800¥80

13 parts on this diagram · 2 diagrams in section
