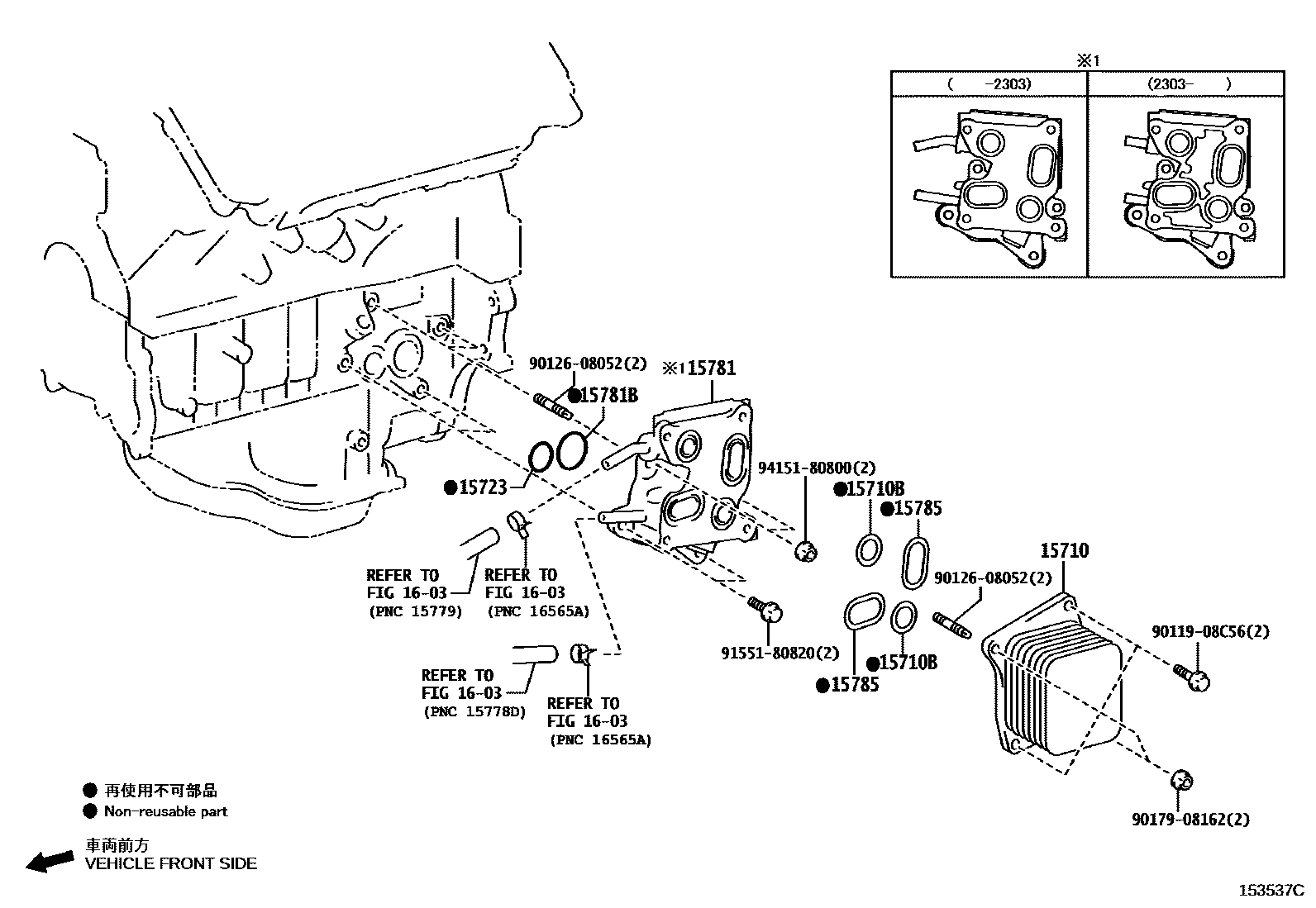

ENGINE OIL COOLER

0001 1 0002 1

15710COOLER ASSY, OIL

main15710-52020iF33AFTV..FJA310202112-202411

main15710-70060iV35AFTS..VJA310,VJH310202112-202411

15710BRING, O(FOR OIL COOLER)

main96762-31025iF33AFTV..FJA310202112-202411

15723RING, O

main12151-62010iF33AFTV..FJA310202306-202411

main96743-35035iF33AFTV..FJA310202112-202305

sub12151-62010

15781BRACKET, OIL COOLER, NO.1

main15781-52010iF33AFTV..FJA310202112-202303

sub15781-62010

sub15778-62040

main15781-62010iF33AFTV..FJA310202303-202411

15781BRING,O(FOR OIL COOLER BRACKET NO.1)

main12152-62010iF33AFTV..FJA310202306-202411

main96743-35025iF33AFTV..FJA310202112-202305

sub12152-62010

15785GASKET, OIL COOLER

main15785-52010iF33AFTV..FJA310202112-202411

main15785-70010iV35AFTS..VJA310202112-202411

1603

9011908C56

main90119-08C56

9012608052

main90126-08052

9017908162

main90179-08162

9155180820

main91551-80820

9415180800

main94151-80800

12 parts on this diagram · 2 diagrams in section
