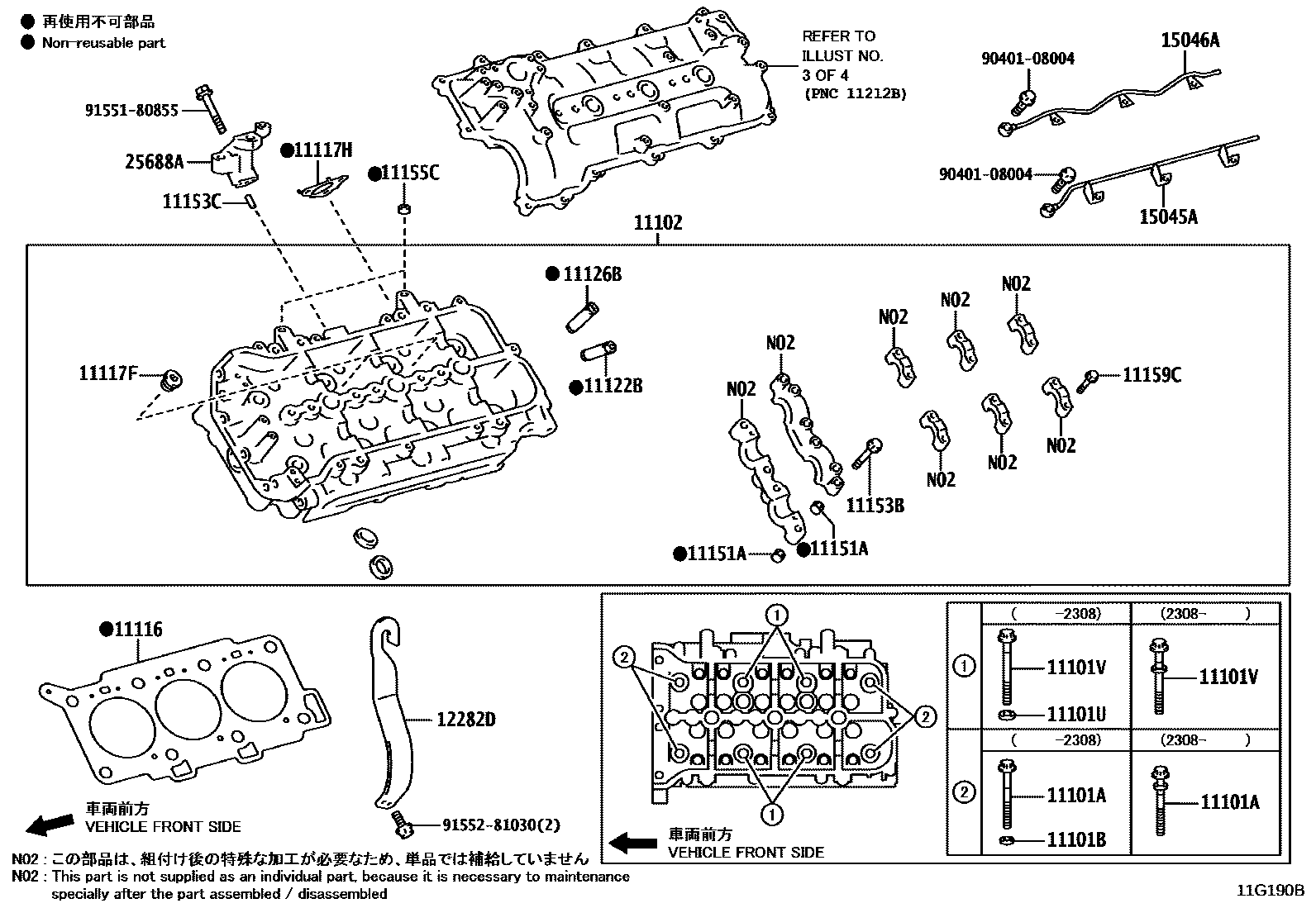

CYLINDER HEAD
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101USPACER(FOR CYLINDER HEAD SET BOLT)
11116GASKET, CYLINDER HEAD, NO.2
11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2
11117HGASKET(FOR WATER HOLE)
11122BUSH, INTAKE VALVE GUIDE
STD
O/S 0.05
11122BBUSH, INTAKE VALVE GUIDE, NO.2
STD
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
11126BBUSH, EXHAUST VALVE GUIDE, NO.2
STD
O/S 0.05
11151PIN, RING(FOR CAMSHAFT BEARING CAP SETTING RH)
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=8,OD=11
11153BBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.2)
11153CPIN, STRAIGHT(FOR CAMSHAFT HOUSING LH)
11155CPIN, RING NO.2
11159CBOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
12282DHANGER, ENGINE, NO.2
15045APIPE SUB-ASSY, CAMSHAFT OIL FEED, NO.3
15046APIPE SUB-ASSY, CAMSHAFT OIL FEED, NO.4
25688ABRACKET, CLAMP STAY, NO.2
9040108004
main90401-08004
9155180855
main91551-80855
9155281030
main91552-81030
26 parts on this diagram · 8 diagrams in section
