HEATING & AIR CONDITIONING - COOLER PIPING

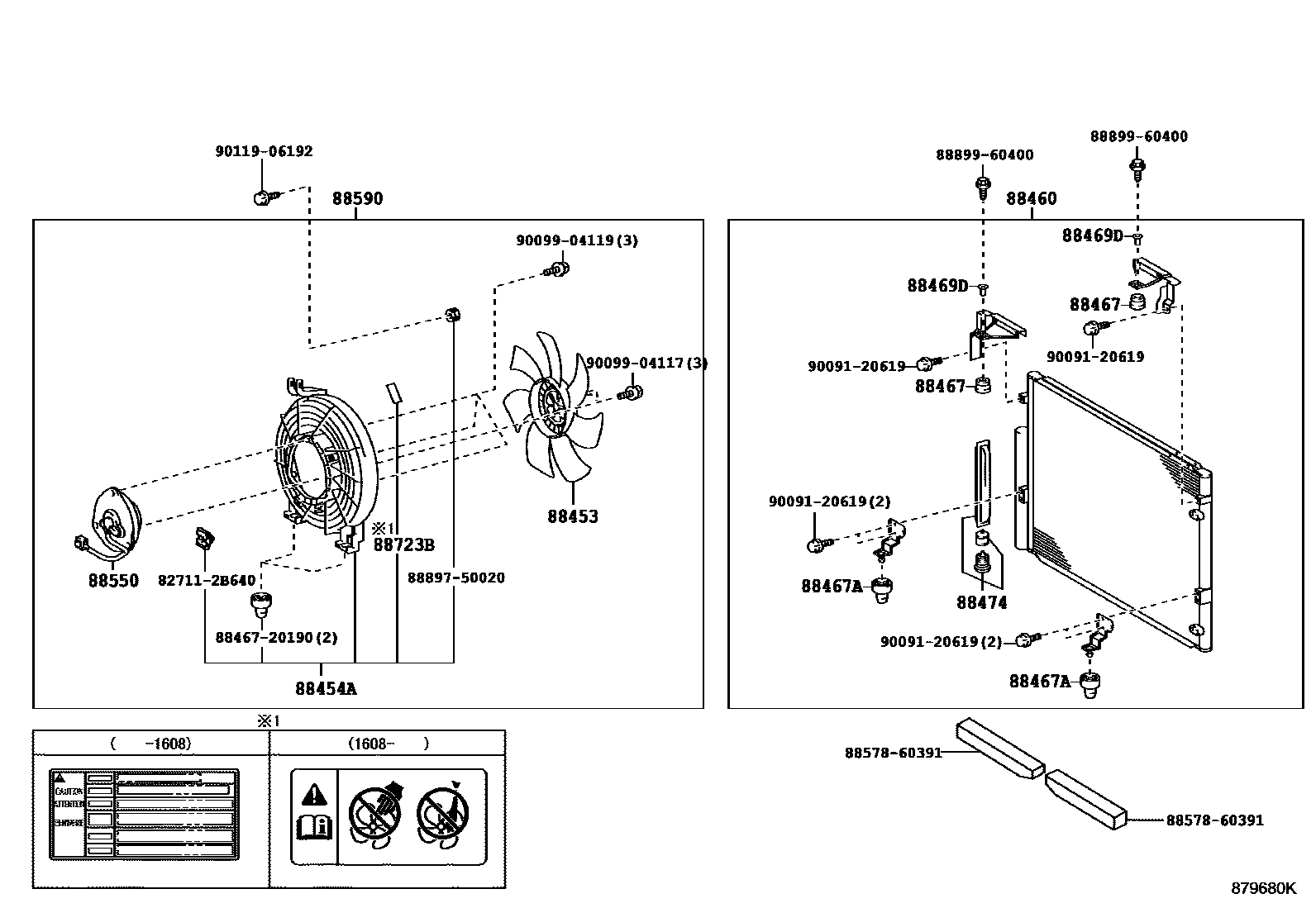

0001 1CONDENSER & FUN SHROUD 0002 1FRONT 0003 1REAR,W(COOL BOX) 0004 1REAR,W/O(COOL BOX)

88453FAN, COOLING (FOR CONDENSER)

main88453-60020iURJ200200709-202104

88454ASHROUD, FAN

main88454-60050iURJ200200709-201209

main88454-60051iURJ200201209-201608

sub88454-60052

main88454-60052iURJ200201608-202104

88460CONDENSER ASSY, COOLER

main88460-60400iURJ200200709-202008

main88460-60560iURJ200202008-202104

88467CUSHION, COOLER CONDENSER, NO.1

main88467-12180iURJ200200709-202008

88467ACUSHION, COOLER CONDENSER, NO.2

main88467-60010iURJ200200709-202008

88469DCOLLAR, CONDENSER BRACKET, NO.1

main88469-52010iURJ200200709-202008

88474DRYER, COOLER

main88474-12030iURJ200200709-202008

main88474-17010iURJ200202008-202104

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-60110iURJ200200709-202104

88590BLOWER ASSY, W/SHROUD

main88590-60080iURJ200200709-201208

sub88590-60081

main88590-60081iURJ200201209-201607

sub88590-60082

main88590-60082iURJ200201608-202104

88723BLABEL, COOLER SERVICE CAUTION

main16793-28020iURJ200200709-201209

sub16793-36040

main16793-31070iURJ200201608-202104

main16793-38010iURJ200201209-201608

sub16793-31070

827112B640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B640

8846720190CUSHION, COOLER CONDENSER, NO.1

main88467-20190

8857860391PAKING, COOLER AIR DUCT

main88578-60391

8889750020VALVE, COOLER MAGNET

main88897-50020

8889960400COVER, EVAPORATOR

main88899-60400

9009120619

main90091-20619

9009904117

main90099-04117

9009904119

main90099-04119

9011906192

main90119-06192

19 parts on this diagram · 4 diagrams in section
