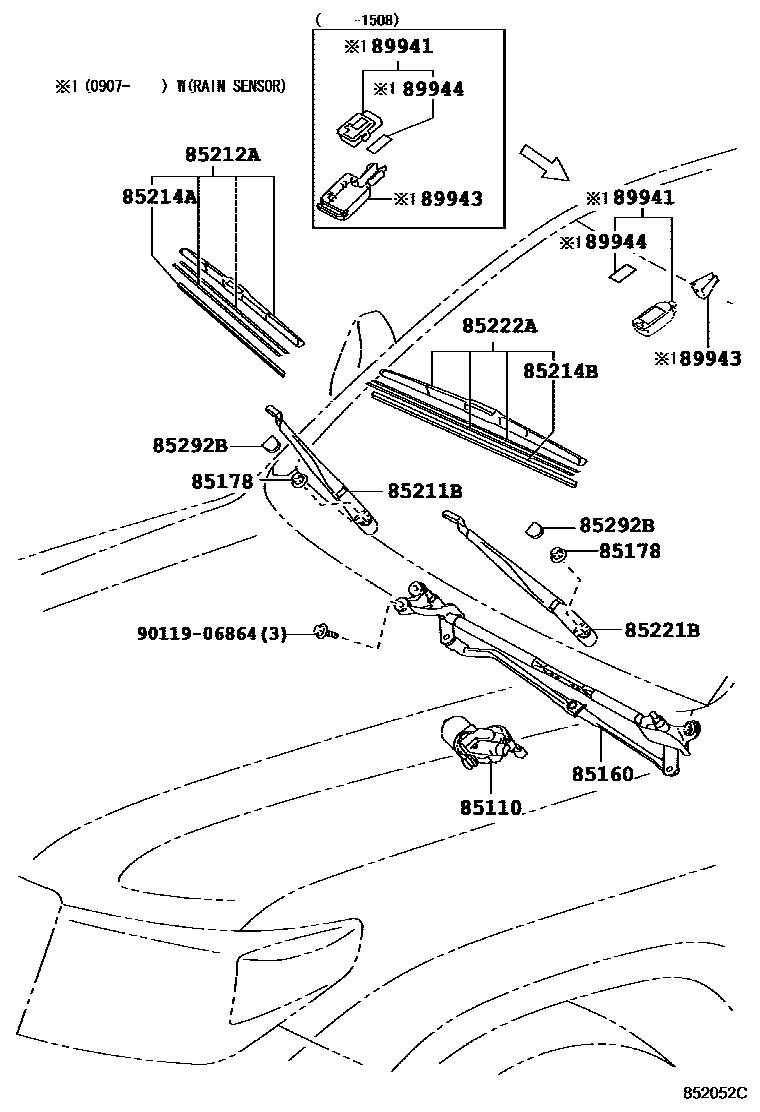

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-60400iURJ200200709-202104

85160LINK ASSY, WINDSHIELD WIPER

main85150-60320iURJ200200709-201606

sub85150-60321

main85150-60321iURJ200201607-202104

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006iURJ200200709-202104

85211BARM, FRONT WIPER, RH

main85211-60260iURJ200200709-202104

85212ABLADE, FR WIPER, RH

main85222-53071iURJ200200709-202104

85214ARUBBER, WIPER, RH

main85214-53080iURJ200200709-202104

85214BRUBBER, WIPER, LH

main85214-30380iURJ200200709-202104

85221BARM, FRONT WIPER, LH

main85221-60280iURJ200200709-202104

85222ABLADE, FR WIPER, LH

main85222-42110iURJ200200709-202104

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010iURJ200200709-202104

89941SENSOR, RAIN

main89941-52010

main89941-50080

main89941-50081

89943COVER, RAIN SENSOR

main89943-76010

main89943-60030

89944TAPE, RAIN SENSOR

main89944-42010

main89944-50020

main89944-50021

9011906864

main90119-06864

14 parts on this diagram · 1 diagram in section
