AIR BAG

72277APROTECTOR, SEAT SLIDE POSITION SENSOR

main72277-33021iURJ200200709-201508

89170ACOMPUTER ASSY, AIRBAG

main89170-60290iURJ200200709-201201

main89170-60740iURJ200201201-201307

sub89170-60B00

main89170-60B00iURJ200201308-201508

main89170-60B50iURJ200201508-201708

main89170-60F20iURJ200201708-202104

89173ASENSOR, AIRBAG, FRONT RH

main89173-69205iURJ200200709-201201

main89173-69225iURJ200201508-202104

main89173-79055iURJ200201201-201508

89174ASENSOR, AIRBAG, FRONT LH

main89173-69205iURJ200200709-201201

main89173-69225iURJ200201508-202104

main89173-79055iURJ200201201-201508

89178ASENSOR, SEAT POSITION AIRBAG

main89178-33050iURJ200200709-201508

89833SENSOR, AIRBAG, REAR RH

main89833-60040iURJ200200709-201201

main89833-60060iURJ200201201-201508

main89833-60071iURJ200201508-202104

89834SENSOR, AIRBAG, REAR LH

main89831-60020iURJ200200709-201201

main89831-60060iURJ200201201-201508

main89831-60070iURJ200201508-202104

89837ASENSOR, REAR FLOOR SIDE AIRBAG

main89837-60010iURJ200200709-201201

main89837-60030iURJ200201201-202104

89839ACOVER, REAR FLOOR SIDE AIRBAG SENSOR

main89839-60010iURJ200200709-202104

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-60010iURJ200200709-201201

main89831-60040iURJ200201201-201508

main89831-60050iURJ200201508-202104

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-60010iURJ200200709-201201

main89831-60040iURJ200201201-201508

main89831-60050iURJ200201508-202104

9011906978

main90119-06978

9011908C89

main90119-08C89

9046709077

main90467-09077

9155380618

main91553-80618

9155380620

main91553-80620

9155380622

main91553-80622

9415180640

main94151-80640

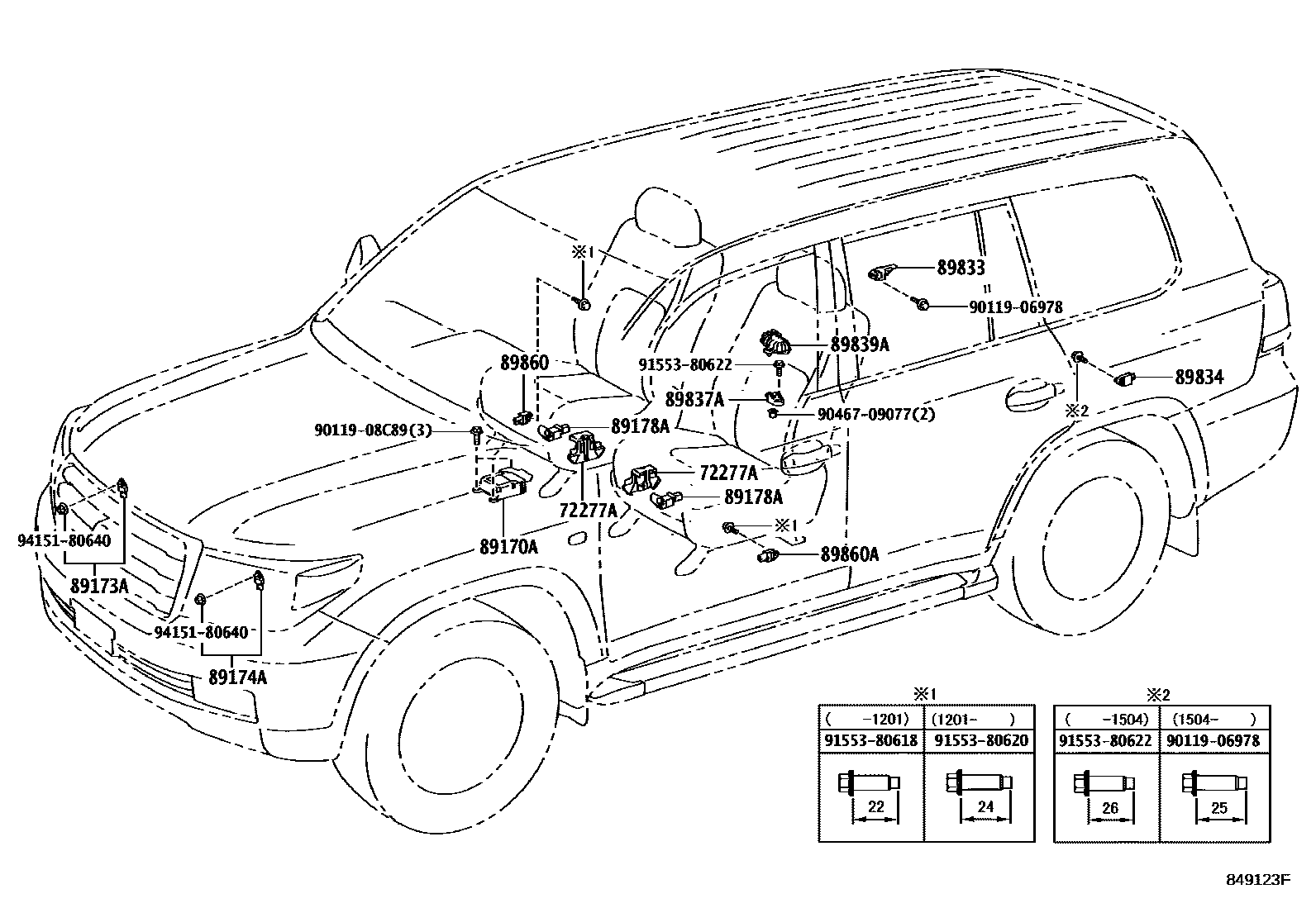

18 parts on this diagram · 1 diagram in section
