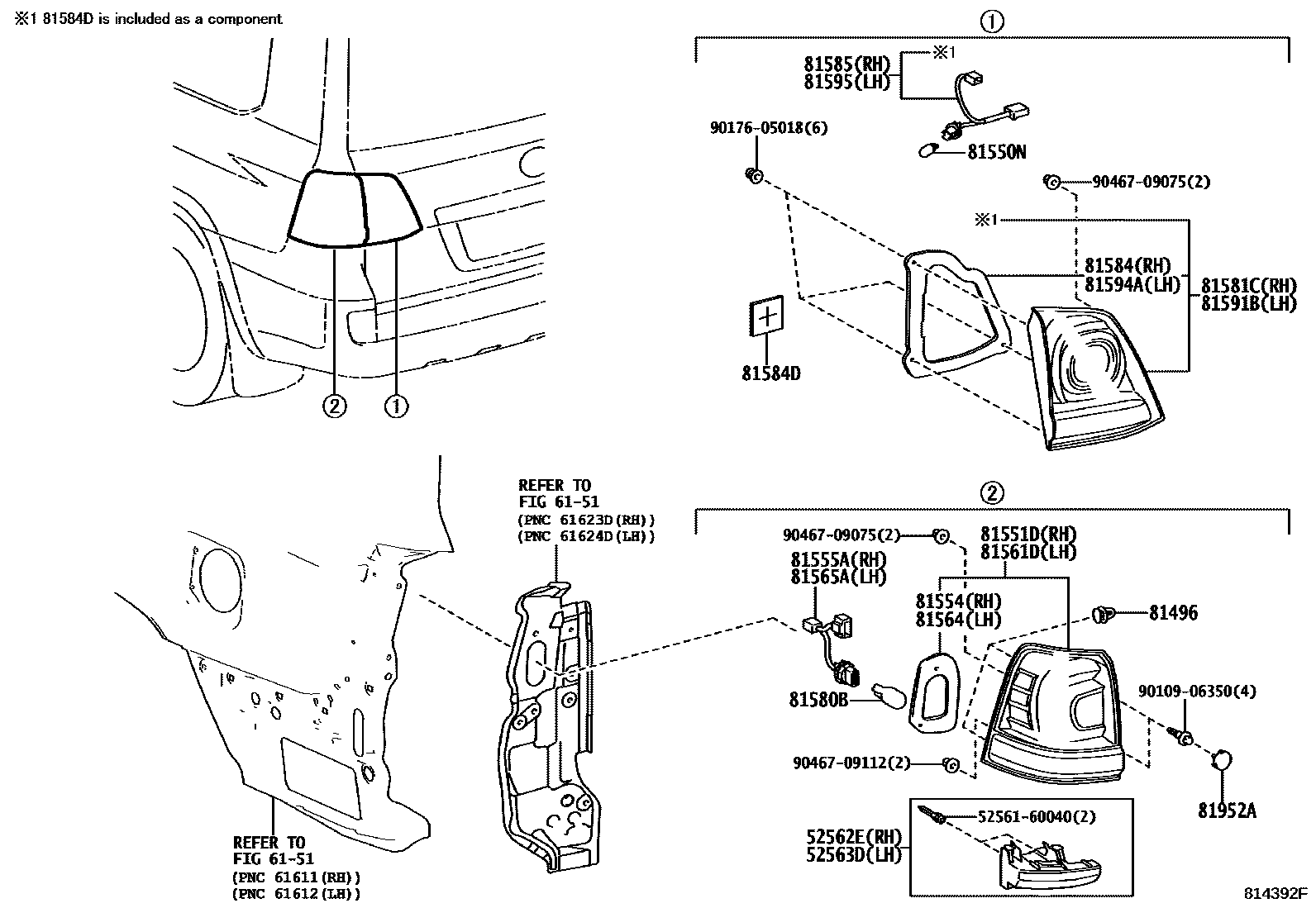

REAR COMBINATION LAMP

0001 1 0002 1 0003 1

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-60040iURJ200200709-202104

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-60040iURJ200200709-202104

6151

81496GUIDE, REAR COMBINATION LAMP

main81496-28010iURJ200200709-202104

81550NBULB, BACK UP LAMP

main90981-11059iURJ200200709-202104

12V 16W

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-60830iURJ200200709-201201

main81551-60A90iURJ200201201-201508

main81551-60B90iURJ200201508-202104

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-60B70iURJ200201508-202104

main81554-60820iURJ200200709-201201

81555ASOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-60830iURJ200200709-201201

main81555-60A90iURJ200201201-201508

main81555-60B90iURJ200201508-202104

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-60760iURJ200200709-201201

main81561-60A70iURJ200201201-201508

main81561-60B90iURJ200201508-202104

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81562-60B70iURJ200201508-202104

main81564-60750iURJ200200709-201201

81565ASOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-60830iURJ200200709-201201

main81555-60A90iURJ200201201-201508

main81555-60B90iURJ200201508-202104

81580BBULB (FOR REAR LAMP)

main90981-15021iURJ200200709-201201

12V 21W,AMBER

81581CLENS AND BODY, REAR LAMP, RH

main81581-60200iURJ200200709-201201

main81581-60300iURJ200201201-201508

main81581-60390iURJ200201508-201601

sub81581-60391

main81581-60391iURJ200201601-202104

81584PACKING, REAR LAMP RH

main81584-60180iURJ200200709-201508

main81584-60370iURJ200201508-202104

81584DGASKET, REAR LAMP

main81584-24050iURJ200201508-202104

main81584-60190iURJ200200709-201201

81585SOCKET & WIRE, REAR LAMP

main81585-60200iURJ200200709-201201

main81585-60300iURJ200201201-201508

main81585-60360iURJ200201508-202104

81591BLENS AND BODY, REAR LAMP, LH

main81591-60230iURJ200200709-201201

main81591-60330iURJ200201201-201508

main81591-60390iURJ200201508-201601

sub81591-60391

main81591-60391iURJ200201601-202104

81594AGASKET, REAR LAMP LH

main81594-60210iURJ200200709-201508

main81594-60360iURJ200201508-202104

81595SOCKET & WIRE, REAR LAMP, LH

main81585-60200iURJ200200709-201201

main81585-60300iURJ200201201-201508

main81585-60360iURJ200201508-202104

81952ACOVER, REAR LAMP, RH

main81952-22010iURJ200200709-201201

5256160040RETAINER, REAR BUMPER, UPPER CENTER

main52561-60040

9010906350

main90109-06350

9017605018

main90176-05018

9046709075

main90467-09075

9046709112

main90467-09112

25 parts on this diagram · 3 diagrams in section
