MOULDING
5353
60117COVER SUB-ASSY, FRONT PILLAR, UPR RH
60118COVER SUB-ASSY, FRONT PILLAR, UPR LH
6751
6755
75547BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.3
75551MOULDING, ROOF DRIP SIDE FINISH, RH
NO PAINT REQ.
75552MOULDING, ROOF DRIP SIDE FINISH, LH
NO PAINT REQ.
75553AMOULDING, ROOF DRIP SIDE FINISH, REAR RH
75554AMOULDING, ROOF DRIP SIDE FINISH, REAR LH
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
75596COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, RH
ROOF RACK-ROOF RAIL ONLY(FOR CROSS BAR)
75597COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, LH
ROOF RACK-ROOF RAIL ONLY(FOR CROSS BAR)
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75740MOULDING ASSY, REAR DOOR BELT, LH
75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH
NO PAINT REQ.
NO PAINT REQ.
75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH
NO PAINT REQ.
NO PAINT REQ.
75792CLIP, DOOR WINDOW FRAME MOULDING
75850AMOULDING ASSY, BODY ROCKER PANEL, RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
ATTITUDE BLACK MC.,218
SPARKLING BLACK PEARL CS.,220
DK. RED M.M.,3Q3
BEIGE M.M.,4R3
COPPER BROWN MC.,4S6
GREEN M.M.,6V2
GRAYISH BLUE ME.,8R3
LT.BLUE M.M.,8S1
DARK BLUE MC.,8P8
75860AMOULDING ASSY, BODY ROCKER PANEL, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
ATTITUDE BLACK MC.,218
SPARKLING BLACK PEARL CS.,220
DK. RED M.M.,3Q3
BEIGE M.M.,4R3
COPPER BROWN MC.,4S6
GREEN M.M.,6V2
GRAYISH BLUE ME.,8R3
LT.BLUE M.M.,8S1
DARK BLUE MC.,8P8
75867ACLIP, ROCKER PANEL MOULDING
75868BCLIP, ROCKER PANEL MOULDING, NO.2
7652
76923BRETAINER, SIDE MUDGUARD
9016660003
main90166-60003
9018906065
main90189-06065

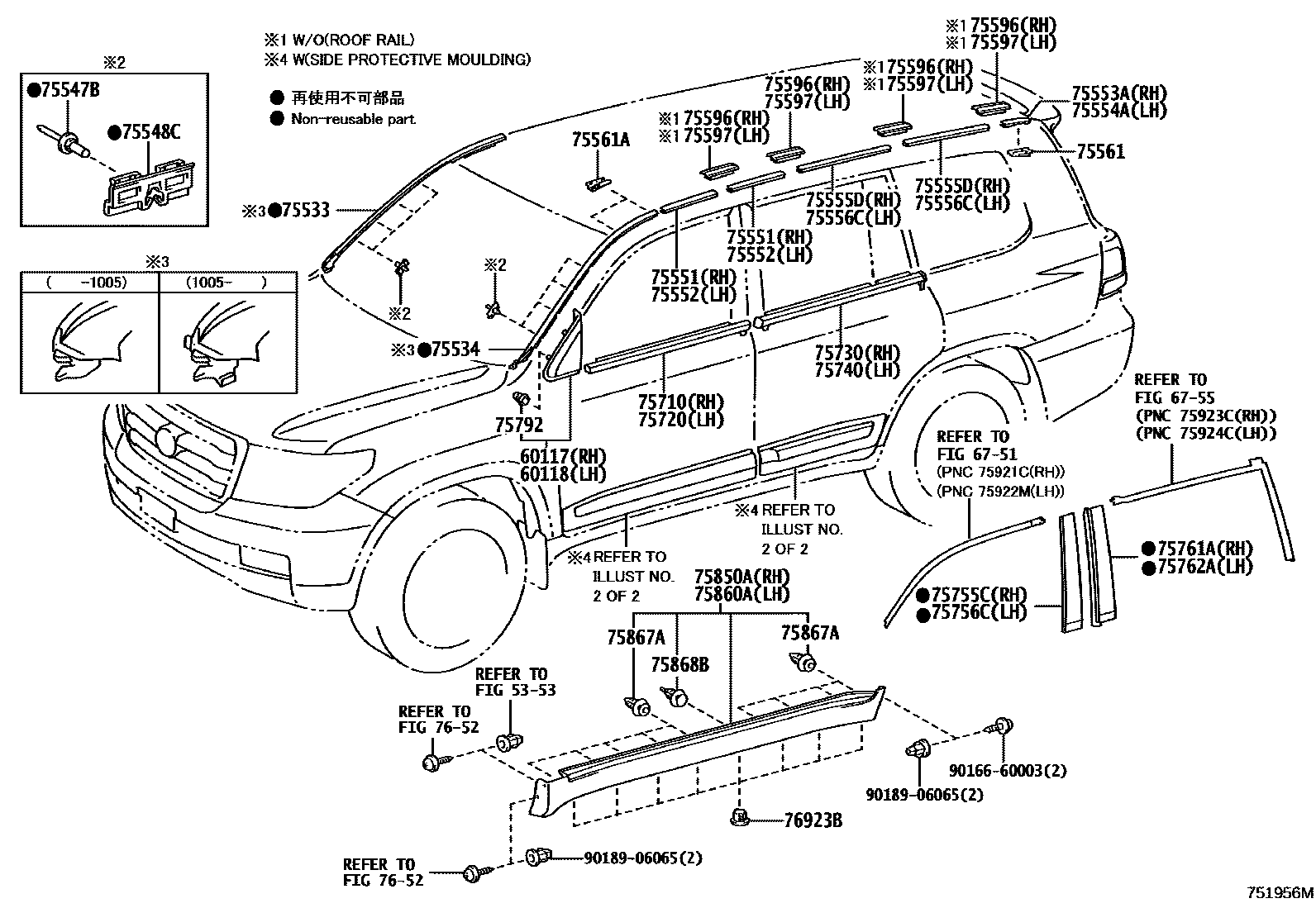

36 parts on this diagram · 3 diagrams in section
