E
EPC Data

SEAT BELT

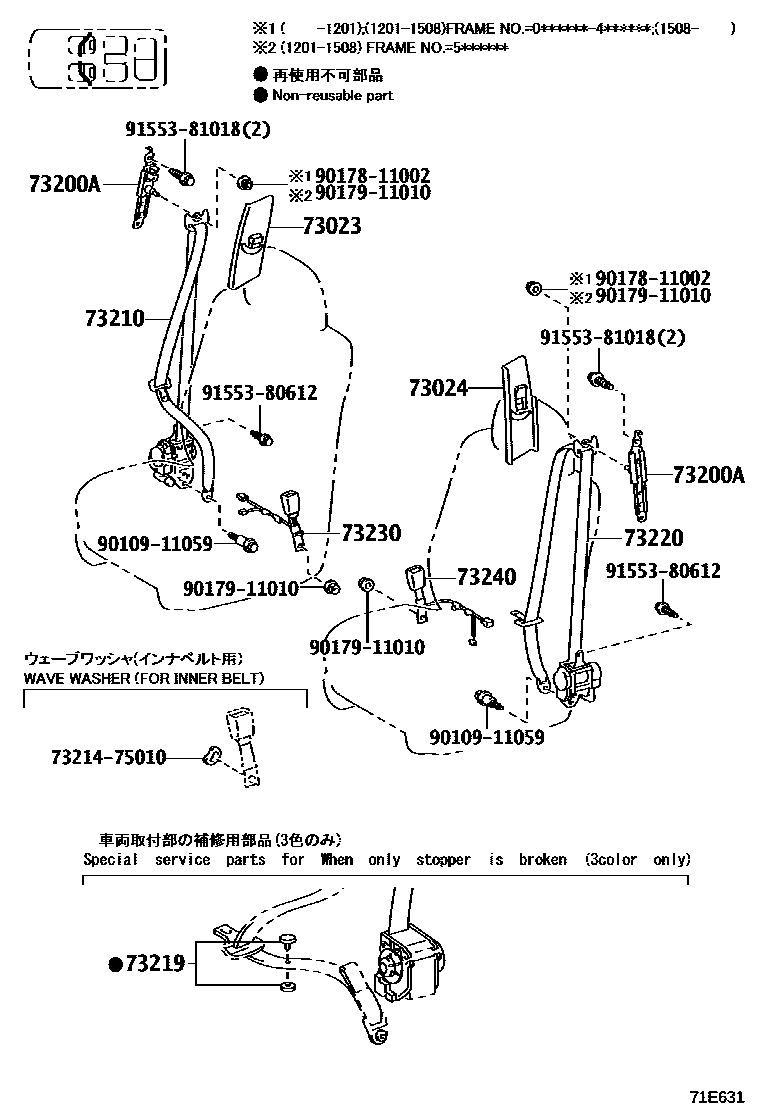

Parts diagram
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
main73023-30010-A3i201201-201508
SHELL,TRIM0#
sub73023-30010
main73023-30010-A5i201508-201708
FLAXEN,TRIM0#
sub73023-30010
main73023-30010-B2i200709-201201
LT.GRAY,TRIM1#
sub73023-30010
main73023-30010-B2i201201-201508
LT.GRAY,TRIM2#
sub73023-30010
main73023-30010-B2i201508-202104
LT.GRAY,TRIM23,42,46
sub73023-30010
main73023-30010-C0i201508-202104
BLACK,TRIM25,42
sub73023-30010
main73023-30010-E1i200709-201201
SAND BEIGE,TRIM4#
sub73023-30010
main73023-30010-E2i201708-202104
NEUTRAL BEIGE,TRIM47
sub73023-30010
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
main73024-30010-A3i201201-201508
SHELL,TRIM0#
sub73024-30010
main73024-30010-A5i201508-201708
FLAXEN,TRIM0#
sub73024-30010
main73024-30010-B2i200709-201201
LT.GRAY,TRIM1#
sub73024-30010
main73024-30010-B2i201201-201508
LT.GRAY,TRIM2#
sub73024-30010
main73024-30010-B2i201508-202104
LT.GRAY,TRIM23,42,46
sub73024-30010
main73024-30010-C0i201508-202104
BLACK,TRIM25,42
sub73024-30010
main73024-30010-E1i200709-201201
SAND BEIGE,TRIM4#
sub73024-30010
main73024-30010-E2i201708-202104
NEUTRAL BEIGE,TRIM47
sub73024-30010
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-12070i201301-202104
main73200-53010i200709-201301
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-60680-B0i200709-200907
MD.GRAY,TRIM1#
sub73210-60680
sub73210-60681
sub73210-60A50
main73210-60680-B1i200907-201008
MD.GRAY,TRIM1#
sub73210-60680
sub73210-60681
sub73210-60A50
main73210-60680-E0i200709-201008
SAND BEIGE,TRIM4#
sub73210-60680
sub73210-60681
sub73210-60A50
main73210-60681-B2i201008-201201
LT.GRAY/BLACK,TRIM1#
sub73210-60A50
main73210-60681-E0i201008-201201
SAND BEIGE,TRIM4#
sub73210-60A50
main73210-60850-A0i201201-201212
IVORY,TRIM0#
sub73210-60851
sub73210-60A80
main73210-60850-B0i201201-201212
BLACK,TRIM2#
sub73210-60851
sub73210-60A80
main73210-60851-A3i201301-201508
IVORY/SHELL,TRIM0#
sub73210-60A90
main73210-60851-C0i201301-201508
BLACK,TRIM2#
sub73210-60A90
main73210-60860-A1i201508-201708
FLAXEN,TRIM0#
sub73210-60861
sub73210-60B00
main73210-60860-C0i201508-201708
BLACK,TRIM2#,4#
sub73210-60861
sub73210-60B00
main73210-60861-C0i201708-201812
BLACK,TRIM2#,42,46
sub73210-60862
main73210-60861-E0i201708-201812
NEUTRAL BEIGE,TRIM47
sub73210-60862
main73210-60862-C0i201901-201908
BLACK,TRIM2#,42,46
main73210-60862-C0i201908-202104
BLACK,TRIM2#,4#
main73210-60862-E0i201901-201908
NEUTRAL BEIGE,TRIM47
73219STOPPER, TONGUE PLATE
main73219-02010i200709-202104
BLACK
main73219-02020i200709-202104
GRAY
main73219-02030i200709-202104
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-60560-B0i200709-200907
MD.GRAY,TRIM1#
sub73220-60560
sub73220-60564
main73220-60560-B1i200907-201008
BLACK,TRIM1#
sub73220-60560
sub73220-60564
main73220-60560-E0i200709-201008
SAND BEIGE,TRIM4#
sub73220-60560
sub73220-60564
main73220-60561-A2i201201-201212
IVORY,TRIM0#
sub73220-60563
main73220-60561-B2i201201-201212
LT.GRAY/BLACK,TRIM2#
sub73220-60563
main73220-60561-B2i201008-201201
LT.GRAY/BLACK,TRIM1#
sub73220-60563
main73220-60561-E0i201008-201201
SAND BEIGE,TRIM4#
sub73220-60563
main73220-60562-A5i201301-201302
IVORY/SHELL,TRIM0#
sub73220-60563
main73220-60562-C0i201301-201302
BLACK,TRIM2#
sub73220-60563
main73220-60563-A5i201303-201308
IVORY/SHELL,TRIM0#
sub73220-60564
main73220-60563-C0i201303-201308
BLACK,TRIM2#
sub73220-60564
main73220-60564-A5i201311-201508
IVORY/SHELL,TRIM0#
sub73220-60564
main73220-60564-C0i201309-201508
BLACK,TRIM2#
sub73220-60564
main73220-60670-A1i201508-201708
FLAXEN,TRIM0#
sub73220-60671
main73220-60670-C0i201508-201708
BLACK,TRIM2#,4#
sub73220-60671
main73220-60671-C0i201708-201908
BLACK,TRIM2#,42,46
main73220-60671-C0i201908-202104
BLACK,TRIM2#,4#
main73220-60671-E0i201708-201908
NEUTRAL BEIGE,TRIM47
73230BELT ASSY, FRONT SEAT INNER, RH
main73240-60310-B0i200709-201008
MD.GRAY,TRIM1#
sub73240-60310
main73240-60310-C0i201008-201201
BLACK,TRIM1#
sub73240-60310
main73240-60310-E0i200709-201201
SAND BEIGE,TRIM4#
sub73240-60310
main73240-60320-A2i201201-201508
SHELL,TRIM0#
sub73240-60320
main73240-60320-C0i201201-201508
BLACK,TRIM2#
sub73240-60320
main73240-60590-A1i201508-201708
FLAXEN,TRIM0#
main73240-60590-C0i201508-202104
BLACK,TRIM2#,4#
main73240-60590-C0i201708-201908
BLACK,TRIM2#,42,46
main73240-60590-E0i201708-201908
NEUTRAL BEIGE,TRIM47
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-60480-B0i200709-201008
MD.GRAY,TRIM1#
sub73230-60480
main73230-60480-C0i201008-201201
BLACK,TRIM1#
sub73230-60480
main73230-60480-E0i200709-201201
SAND BEIGE,TRIM4#
sub73230-60480
main73230-60490-A2i201201-201508
SHELL,TRIM0#
sub73230-60490
main73230-60490-C0i201201-201508
BLACK,TRIM2#
sub73230-60490
main73230-60700-A1i201508-201708
FLAXEN,TRIM0#
main73230-60700-C0i201508-202104
BLACK,TRIM2#,4#
main73230-60700-C0i201708-201908
BLACK,TRIM2#,42,46
main73230-60700-E0i201708-201908
NEUTRAL BEIGE,TRIM47
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010
9010911059
main90109-11059
9017811002
main90178-11002
9017911010
main90179-11010
9155380612
main91553-80612
9155381018
main91553-81018

14 parts on this diagram · 3 diagrams in section
