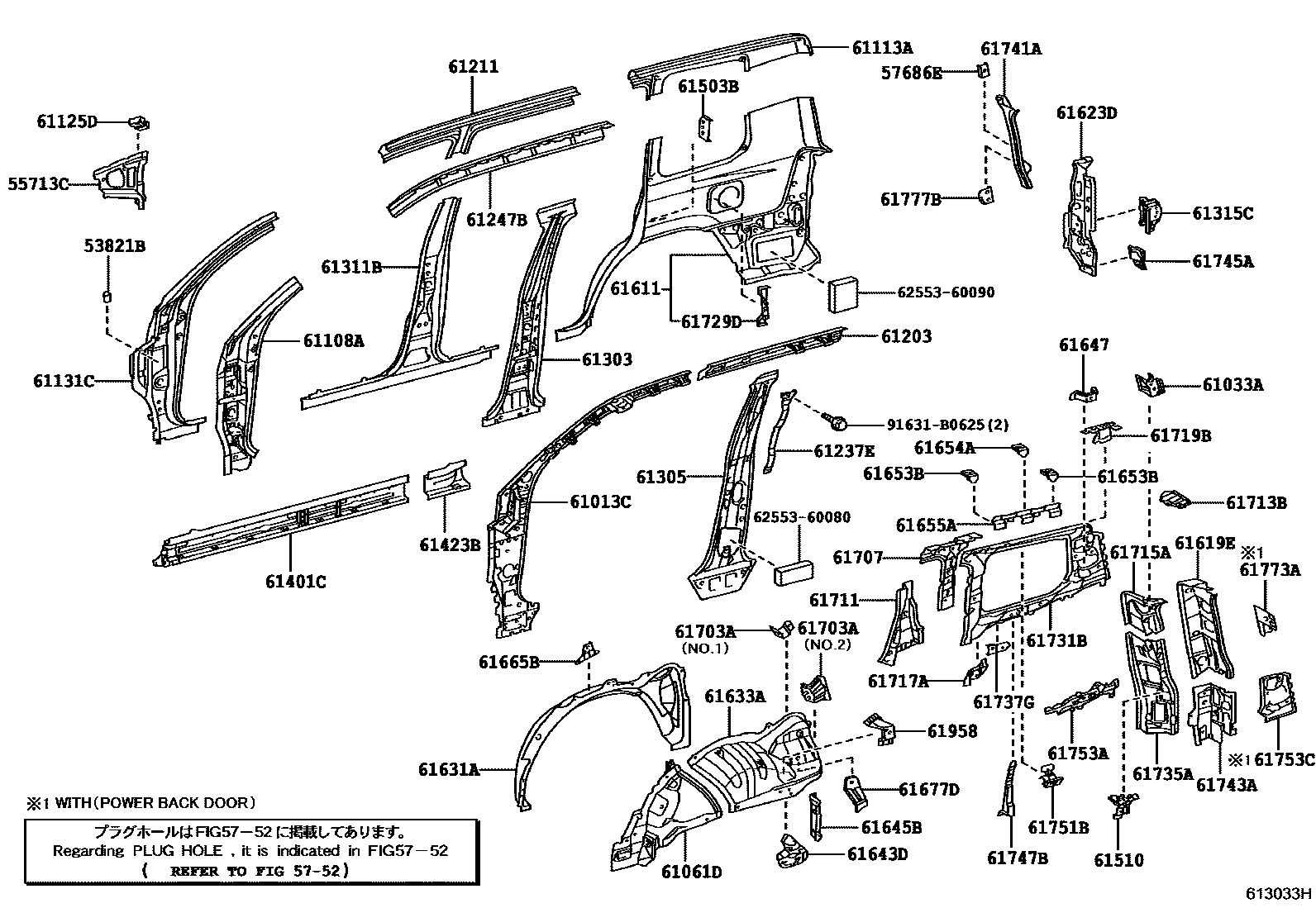

SIDE MEMBER

0001 1RH SIDE 0002 1LH SIDE

53821BBRACKET, FRONT FENDER, REAR RH

main53821-60040iURJ200200709-202104

55713CPANEL, COWL TOP SIDE, RH

main55713-60070iURJ200200709-201107

sub55713-60071

main55713-60071iURJ200201108-202104

5752

57686EBRACKET, FUEL TANK MOUNTING, REAR RH

main61771-60040iURJ200200709-202104

61013CPANEL SUB-ASSY, SIDE, INNER RH

main61013-60030iURJ200200709-201508

main61013-60060iURJ200201508-202104

61033AREINFORCE SUB-ASSY, BACK DOOR OPENING SIDE

main61033-60160iURJ200200709-202104

61061DGUSSET SUB-ASSY, QUARTER WHEEL HOUSE, NO.1, RH

main61061-60100iURJ200200709-201508

main61061-60120iURJ200201508-202104

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-60080iURJ200200709-202104

61113APANEL, SIDE, OUTER NO.2 RH

main61113-60030iURJ200200709-202104

61125DGUSSET, SIDE PANEL

main61125-60030iURJ200200709-202104

61131CPILLAR, FRONT BODY, OUTER RH

main61131-60240iURJ200200709-202104

61203RAIL SUB-ASSY, ROOF SIDE, INNER RH

main61203-60020iURJ200200709-202104

61211RAIL, ROOF SIDE, OUTER RH

main61211-60070iURJ200200709-202104

61237EBRACKET, ASSIST GRIP, NO.1

main61237-60020iURJ200200709-202104

61247BREINFORCEMENT, ROOF SIDE RAIL, INNER RH

main61247-60080iURJ200200709-202104

61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH

main61303-60090iURJ200200709-202104

61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH

main61305-60130iURJ200200709-202104

61311BPILLAR, CENTER BODY, OUTER RH

main61311-60170iURJ200200709-202104

61315CRETAINER, DOOR LOCK STRIKER, RH

main61087-60020iURJ200200709-202104

61401CPANEL SUB-ASSY, ROCKER, OUTER RH

main61401-60060iURJ200200709-202104

61423BREINFORCEMENT, ROCKER PANEL, NO.3 RH

main61427-60010iURJ200200709-202104

61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH

main61503-60130iURJ200200709-202104

61510PANEL ASSY, REAR UPPER SIDE, RH

main61055-60010iURJ200200709-202104

61611PANEL, QUARTER, RH

main60161-60870iURJ200200909-201509

sub60161-60871

main60161-60871iURJ200201509-202104

main60161-60890iURJ200200709-200909

sub60161-60891

61619EREINFORCEMENT, QUARTER PANEL

main61619-60090iURJ200200709-202104

61623DEXTENSION, QUARTER PANEL, FRONT RH

main61623-60030iURJ200200709-201503

sub61623-60100

main61623-60031iURJ200201503-202104

sub61623-60080

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-60080iURJ200200709-202104

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61633-60120iURJ200200709-202104

61643DPATCH, QUARTER WHEEL HOUSE, NO.1 RH

main61643-60040iURJ200200709-202104

61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-60060iURJ200200709-202104

61647RETAINER, REAR SEATBACK PIVOT, LOWER

main61647-60030iURJ200201508-202104

main61647-60050iURJ200200709-201508

61653BBRACKET, DECK SIDE TRIM

main61653-60010iURJ200200709-202104

61654ABRACKET, DECK SIDE TRIM, NO.2

main61654-60010iURJ200200709-202104

61655ABRACKET, DECK SIDE TRIM, NO.3

main61655-60040iURJ200200709-202104

61665BREINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, RH

main61665-60080iURJ200200709-202104

61677DBRACKET, REAR SUSPENSION BUMPER, RH

main61677-60070iURJ200200709-202104

61703ABRACKET,FUEL TANK FILLTER PIPE PROTECTOR

main77675-60080iURJ200200709-202104

NO.1:REFER ILLUST.

main77676-60040iURJ200200709-202104

NO.2:REFER ILLUST.

61707PANEL SUB-ASSY, QUARTER, INNER RH

main61707-60040iURJ200200709-202104

61711PANEL, ROOF SIDE, OUTER RH

main61711-60070iURJ200200709-202104

61713BREINFORCE, ROOF SIDE, OUTER RH

main61713-60020iURJ200200709-202104

61715AEXTENSION, ROOF SIDE, INNER UPPER RH

main61715-60110iURJ200200709-202104

61717AREINFORCEMENT, QUARTER PANEL EXTENSION, RH

main61717-60070iURJ200200709-202104

61719BBRACKET, ROOF SIDE, INNER

main61719-60030iURJ200200709-202104

61729DPLATE, FUEL INLET BOX

main61729-60060iURJ200200709-202104

61731BPANEL, ROOF SIDE, INNER RH

main61731-60300iURJ200201508-202104

main61731-60320iURJ200200709-201508

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-60060iURJ200200709-202104

61737GREINFORCEMENT, ROOF SIDE, INNER RH

main61737-60050iURJ200200709-202104

61741AREINFORCEMENT, BACK DOOR OPENING, UPPER RH

main61741-60080iURJ200200709-201012

sub61741-60081

main61741-60081iURJ200201101-202104

61743AREINFORCEMENT, BACK DOOR OPENING SIDE, RH

main61743-60130iURJ200200709-201012

sub61743-60131

main61743-60131iURJ200201101-201810

sub61743-60160

main61743-60160iURJ200201811-202104

61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH

main61745-60030iURJ200200709-201508

main61745-60060iURJ200201508-202104

61747BREINFORCEMENT, ROOF SIDE, INNER REAR, RH

main61747-60060iURJ200200709-202104

61751BRETAINER, QUARTER TRIM, UPPER

main61751-60040iURJ200200709-202104

61753ARETAINER, QUARTER TRIM, LOWER

main61753-60010iURJ200200709-202104

61753CRETAINER, QUARTER TRIM, LOWER

61773APATCH, BACK DOOR OPENING, LOWER RH

61777BREINFORCE, BACK DOOR SIDE STOPPER FEMALE, RH

main61777-60030iURJ200200709-202104

61958BRACKET, REAR SEAT LEG, NO.1 RH

main61958-60080iURJ200200709-202104

6255360080TRIM, FLOOR SIDE

main62553-60080

6255360090TRIM, FLOOR SIDE

main62553-60090

91631B0625

main91631-B0625

60 parts on this diagram · 2 diagrams in section
