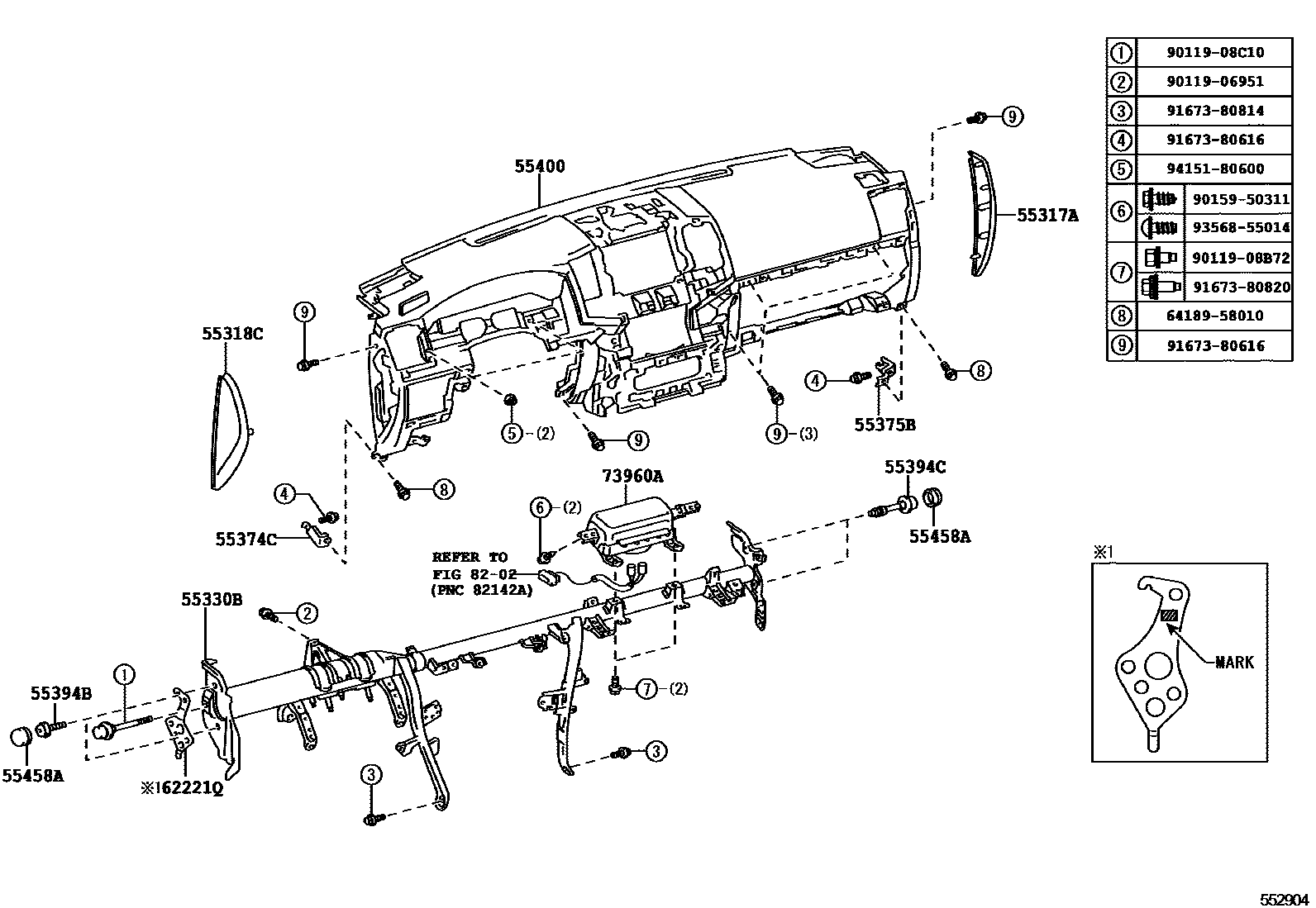

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1DRIVER SIDE 0004 1CENTER 0005 1CENTER 0006 1PASSENGER SIDE 0007 1PASSENGER SIDE

55317APANEL, INSTRUMENT SIDE, RH

main55317-60020-C0iURJ200200709-200807

BLACK,TRIM1#

sub55317-60021

main55317-60020-E0iURJ200200709-200807

DK. BROWN,TRIM4#

sub55317-60021

main55317-60021-A1iURJ200201201-201508

SHELL,TRIM0#

sub55317-60021

main55317-60021-A3iURJ200201508-201708

FLAXEN,TRIM0#

sub55317-60021

main55317-60021-C0iURJ200201201-201508

BLACK,TRIM2#

sub55317-60021

main55317-60021-C0iURJ200200808-201201

BLACK,TRIM1#

sub55317-60021

main55317-60021-C0iURJ200201508-201708

BLACK,TRIM2#,4#

sub55317-60021

main55317-60021-C0iURJ200201708-202104

BLACK,TRIM2#,42,46

sub55317-60021

main55317-60021-E0iURJ200200808-201201

DK. BROWN,TRIM4#

sub55317-60021

main55317-60021-E1iURJ200201708-202104

NEUTRAL BEIGE,TRIM47

sub55317-60021

55318CPANEL, INSTRUMENT SIDE, LH

main55318-60050-C0iURJ200200709-200807

BLACK,TRIM1#

sub55318-60051

main55318-60050-E0iURJ200200709-200807

DK. BROWN,TRIM4#

sub55318-60051

main55318-60051-A1iURJ200201201-201508

SHELL,TRIM0#

sub55318-60051

main55318-60051-A3iURJ200201508-201708

FLAXEN,TRIM0#

sub55318-60051

main55318-60051-C0iURJ200201201-201508

BLACK,TRIM2#

sub55318-60051

main55318-60051-C0iURJ200200808-201201

BLACK,TRIM1#

sub55318-60051

main55318-60051-C0iURJ200201508-201708

BLACK,TRIM2#,4#

sub55318-60051

main55318-60051-C0iURJ200201708-202104

BLACK,TRIM2#,42,46

sub55318-60051

main55318-60051-E0iURJ200200808-201201

DK. BROWN,TRIM4#

sub55318-60051

main55318-60051-E1iURJ200201708-202104

NEUTRAL BEIGE,TRIM47

sub55318-60051

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-60210iURJ200200709-201201

main55330-60310iURJ200201508-202104

main55330-60350iURJ200201201-201508

55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1

main55374-60090iURJ200200709-202104

55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2

main55375-60090iURJ200200709-202104

55394BBOLT, INSTRUMENT PANEL

main55394-50010iURJ200200709-202104

55394CBOLT, INSTRUMENT PANEL

main55394-33041iURJ200200709-202104

55400PAD ASSY, INSTRUMENT PANEL SAFETY

main55400-60030-C0iURJ200200709-201201

BLACK,TRIM1#

sub55400-60031

main55400-60030-C0iURJ200201201-201508

BLACK,TRIM2#

sub55400-60031

main55400-60030-C0iURJ200201508-201512

BLACK,TRIM2#,4#

sub55400-60031

main55400-60030-E0iURJ200200709-201201

DK. BROWN,TRIM4#

sub55400-60031

main55400-60030-E1iURJ200201201-201508

ORCHID BROWN,TRIM0#

sub55400-60031

main55400-60030-E2iURJ200201508-201512

ORCHID BROWN,TRIM0#

sub55400-60031

main55400-60031-C0iURJ200201708-202104

BLACK,TRIM2#,42,46

main55400-60031-C0iURJ200201601-201708

BLACK,TRIM2#,4#

main55400-60031-E2iURJ200201601-201708

ORCHID BROWN,TRIM0#

main55400-60031-E3iURJ200201708-202104

ORCHID BROWN,TRIM47

55458ACAP, INSTRUMENT PANEL SAFETY PAD

main55458-50100iURJ200200709-202104

62221QSPACER, FRONT PILLAR, NO.1 RH

main62221-60070iURJ200200709-202104

MARK 1L

main62221-60080iURJ200200709-202104

MARK 2L

main62221-60090iURJ200200709-202104

MARK 3L

main62221-60100iURJ200200709-202104

MARK 4L

main62221-60110iURJ200200709-202104

MARK 5L

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-60170iURJ200200709-202104

8202

6418958010CLAMP, BACK PANEL SILENCER

main64189-58010

9011906951

main90119-06951

9011908B72

main90119-08B72

9011908C10

main90119-08C10

9015950311

main90159-50311

9167380616

main91673-80616

9167380814

main91673-80814

9167380820

main91673-80820

9356855014

main93568-55014

9415180600

main94151-80600

22 parts on this diagram · 7 diagrams in section
