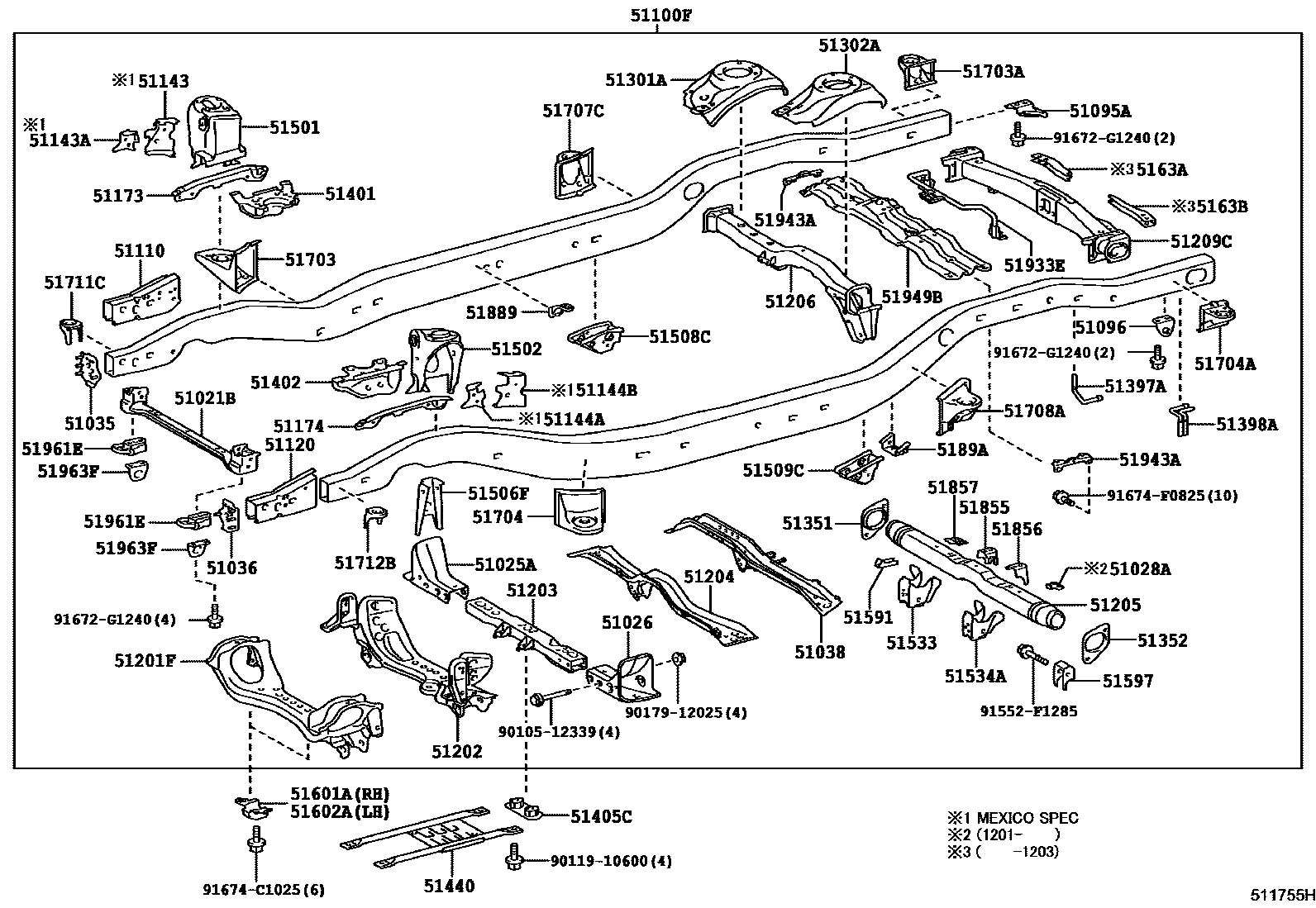

FRAME

51021BCROSSMEMBER SUB-ASSY, FRAME AUXILIARY

main51021-60020iURJ200200709-201211

sub51021-60021

main51021-60021iURJ200201212-202104

51025ABRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, RH

main51025-60020iURJ200200709-201410

sub51025-60021

main51025-60021iURJ200201411-202104

51026BRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, LH

main51026-60020iURJ200200709-202104

51028ABRACKET SUB-ASSY, FRAME NO.4 CROSSMEMBER, LH

main5125B-60020iURJ200201201-202104

51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH

main5103C-60010iURJ200200709-202104

51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH

main5103D-60010iURJ200200709-202104

51038MEMBER SUB-ASSY, FUEL TANK SUPPORT

main51039-60010iURJ200200709-202104

51095AHOOK SUB-ASSY, TRANSPORT, REAR RH

main51095-60020iURJ200200709-202104

51096HOOK SUB-ASSY, TRANSPORT, REAR LH

main51968-60020iURJ200200709-202104

51100FFRAME SUB-ASSY

main51001-60J20iURJ200200709-201201

sub51001-60J21

main51001-60J21iURJ200201201-201604

sub51001-60J22

main51001-60J22iURJ200201605-202104

51110EXTENSION ASSY, SIDE RAIL, RH

main51110-60010iURJ200200709-202104

51120EXTENSION ASSY, SIDE RAIL, LH

main51120-60020iURJ200200709-202104

51143REINFORCEMENT, SIDE RAIL, REAR RH

main51162-60020

main51158-60060

51143AREINFORCEMENT, SIDE RAIL, FRONT RH

51144AREINFORCEMENT, SIDE RAIL, FRONT LH

51144BREINFORCEMENT, SIDE RAIL, REAR LH

51173REINFORCEMENT, FRONT INNER CHANNEL, RH

main51147-60030iURJ200200709-202104

51174REINFORCEMENT, FRONT INNER CHANNEL, LH

main51148-60010iURJ200200709-202104

51201FCROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-60180iURJ200200709-202104

51202CROSSMEMBER SUB-ASSY, FRAME, NO.1

main51202-60290iURJ200200709-201407

sub51202-60291

main51202-60291iURJ200201408-202104

51203CROSSMEMBER SUB-ASSY, FRAME, NO.2

main51203-60250iURJ200200709-201209

sub51203-60251

main51203-60251iURJ200201210-202104

51204CROSSMEMBER SUB-ASSY, FRAME, NO.3

main51240-60020iURJ200200709-201504

sub51240-60021

main51240-60021iURJ200201505-202104

51205CROSSMEMBER SUB-ASSY, FRAME, NO.4

main51251-60130iURJ200200709-202104

51206CROSSMEMBER SUB-ASSY, FRAME, NO.5

main51206-60040iURJ200200709-201604

sub51206-60041

main51206-60041iURJ200201605-202104

51209CCROSSMEMBER SUB-ASSY, FRAME, REAR

main51209-60200iURJ200200709-202104

51301ABRACKET SUB-ASSY, REAR SPRING, REAR RH

main51301-60040iURJ200200709-202104

51302ABRACKET SUB-ASSY, REAR SPRING, REAR LH

main51302-60050iURJ200200709-202104

51351GUSSET, CROSSMEMBER, NO.5 RH

main51351-60050iURJ200200709-202104

51352GUSSET, CROSSMEMBER, NO.5 LH

main51352-60010iURJ200200709-202104

51397ABRACKET, EXHAUST PIPE CLAMP, NO.3

main51397-60020iURJ200200709-202104

51398ABRACKET, EXHAUST PIPE CLAMP, NO.4

main51398-60020iURJ200200709-202104

51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51401-60080iURJ200200709-202104

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-60080iURJ200200709-202104

51405CCOVER SUB-ASSY, ENGINE UNDER, NO.1

main51225-60010iURJ200200709-202104

51440PROTECTOR ASSY, OIL PAN

main51440-60080iURJ200200709-202104

51501SUPPORT SUB-ASSY, SUSPENSION ARM, RH

main51501-60040iURJ200200709-202104

51502SUPPORT SUB-ASSY, SUSPENSION ARM, LH

main51502-60040iURJ200200709-202104

51506FSUPPORT SUB-ASSY, UPPER CONTROL ARM, LH

main51506-60070iURJ200200709-202104

51508CBRACKET SUB-ASSY, LOWER CONTROL LINK, RH

main5150C-60010iURJ200200709-202104

51509CBRACKET SUB-ASSY, LOWER CONTROL LINK, LH

main5150D-60010iURJ200200709-202104

51533BRACKET, UPPER CONTROL LINK, RH

main51533-60050iURJ200200709-202104

51534ABRACKET, UPPER CONTROL LINK, LH

main51534-60040iURJ200200709-202104

51591SUPPORT, STABILIZER

main51591-60020iURJ200200709-202104

51597BRACKET, REAR STABILIZER SUPPORT, FRONT

main51598-60010iURJ200200709-202104

51601ASTOPPER SUB-ASSY, FRONT SUSPENSION REBOUND, RH

main51601-60010iURJ200200709-202104

51602ASTOPPER SUB-ASSY, FRONT SUSPENSION REBOUND, LH

main51602-60010iURJ200200709-202104

5163AREINFORCEMENT, FRAME REAR BUMPER, RH

main5163A-60010iURJ200200709-201203

5163BREINFORCEMENT, FRAME REAR BUMPER, LH

main5163B-60010iURJ200200709-201203

51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH

main51703-60100iURJ200200709-202104

51703ABRACKET SUB-ASSY, CAB REAR MOUNTING, RH

main51705-60160iURJ200200709-202104

51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH

main51704-60090iURJ200200709-202104

51704ABRACKET SUB-ASSY, CAB REAR MOUNTING, LH

main51705-60160iURJ200200709-202104

51707CBRACKET SUB-ASSY, CAB MOUNTING, NO.4 RH

main51707-60100iURJ200200709-202104

51708ABRACKET SUB-ASSY, CAB MOUNTING, NO.4 LH

main51708-60080iURJ200200709-202104

51711CBRACKET, CAB MOUNTING, NO.1 RH

main51711-60080iURJ200200709-202104

51712BBRACKET, CAB MOUNTING, NO.1 LH

main51711-60080iURJ200200709-202104

51855BRACKET, FLOOR CROSSMEMBER,NO.1

main5126A-60010iURJ200200709-202104

51856BRACKET,FLOOR CROSSMEMBER,NO.2

main5126B-60010iURJ200200709-202104

51857BRACKET, FLOOR CROSSMEMBER,NO.3

main51681-60010iURJ200200709-201209

sub51681-60011

main51681-60011iURJ200201210-202104

51889STOPPER, FUEL TANK MOUNTING

main51889-60010iURJ200200709-201209

sub51889-60011

main51889-60011iURJ200201210-202104

5189ABRACKET, FUEL TANK PROTECTOR

main5189A-60010iURJ200200709-201209

sub5189A-60011

main5189A-60011iURJ200201210-202104

51933ESTOPPER, SPARE WHEEL, NO.1

main51904-60090iURJ200200709-201311

sub51904-60091

main51904-60091iURJ200201312-201604

sub51904-60092

main51904-60092iURJ200201605-202104

51943ABRACKET, SPARE WHEEL CARRIER

main51941-60140iURJ200200709-202104

51949BCROSSMEMBER, SPARE WHEEL CARRIER

main51949-60030iURJ200200709-202104

51961EHOOK, FRONT

main51960-60010iURJ200200709-200907

sub51960-60020

main51960-60020iURJ200200907-202104

51963FHOOK, TRANSPORT

main51963-60060iURJ200200709-202104

9010512339

main90105-12339

9011910600

main90119-10600

9017912025

main90179-12025

91552F1285

main91552-F1285

91672G1240

main91672-G1240

91674C1025

main91674-C1025

91674F0825

main91674-F0825

73 parts on this diagram · 1 diagram in section
