DISC WHEEL & WHEEL CAP

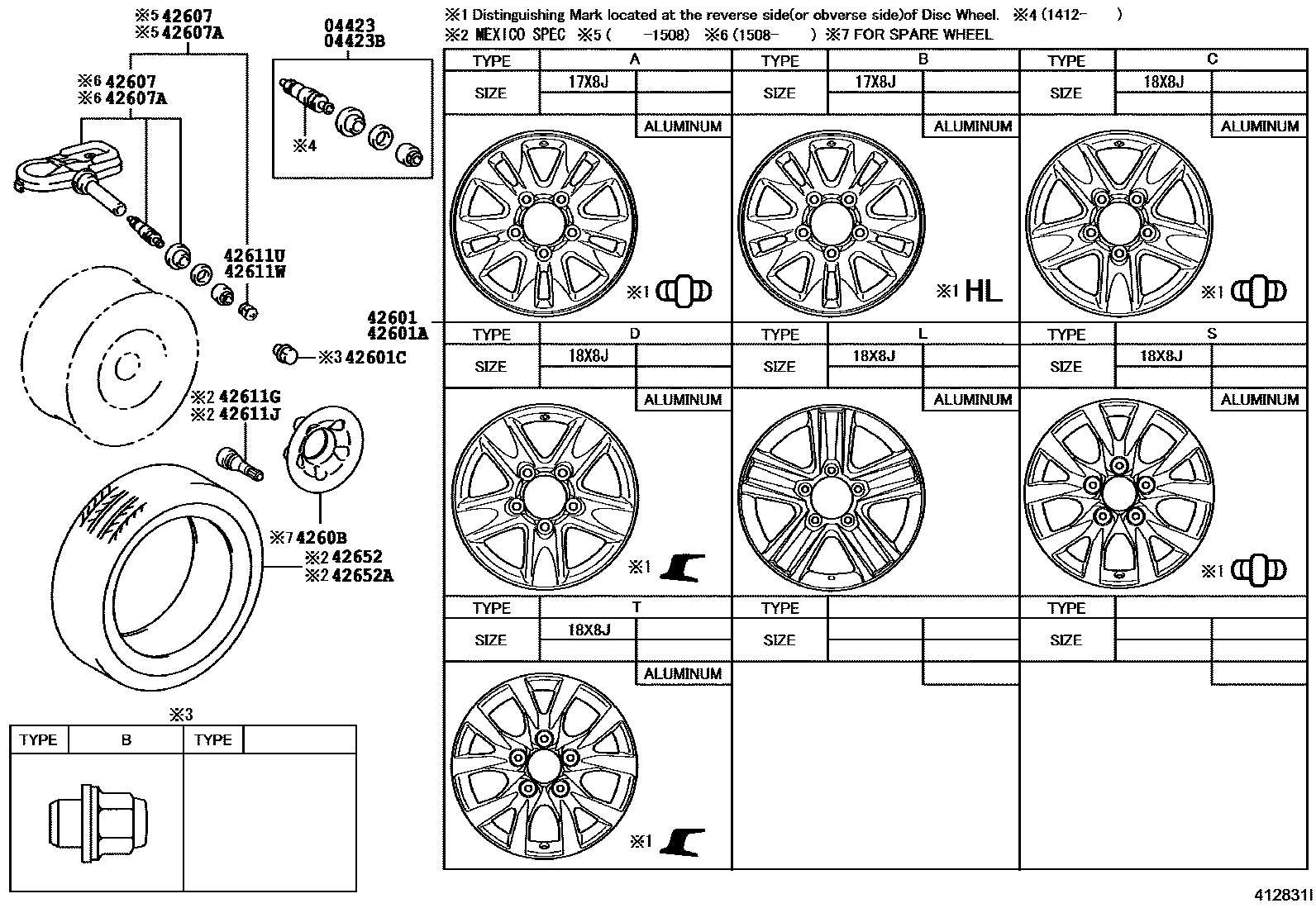

Parts diagram
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
main04423-33030i200709-201411
sub04423-33060
main04423-33060i201412-202104
04423BFITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SPARE)
main04423-33030i200709-201411
sub04423-33060
main04423-33060i201412-202104
42601WHEEL, DISC
main42611-60650i200709-201201
18X8J, #,TYPE C:REFER ILLUST.
sub42611-60651
main42611-60670i200709-201201
18X8J, #,TYPE D:REFER ILLUST.
sub42611-60651
main42611-60A50i201201-201508
18X8J, #,TYPE L:REFER ILLUST.
main42611-60C20i201508-201703
18X8J, #,TYPE S:REFER ILLUST.
sub42611-60C21
main42611-60C21i201704-202012
18X8J, #,TYPE S:REFER ILLUST.
main42611-60C30i201508-202012
18X8J, #,TYPE T:REFER ILLUST.
main42611-60G70i202012-202104
18X8J, #,TYPE S:REFER ILLUST.
sub42611-60C21
main42611-60G80i202012-202104
18X8J, #,TYPE T:REFER ILLUST.
sub42611-60C30
42601AWHEEL, DISC (FOR SPARE)
main42611-60650i200709-201201
18X8J, #,TYPE C:REFER ILLUST.
sub42611-60651
main42611-60670i200709-201201
18X8J, #,TYPE D:REFER ILLUST.
sub42611-60651
main42611-60A50i201201-201508
18X8J, #,TYPE L:REFER ILLUST.
main42611-60C20i201508-201703
18X8J, #,TYPE S:REFER ILLUST.
sub42611-60C21
main42611-60C21i201704-202012
18X8J, #,TYPE S:REFER ILLUST.
main42611-60C30i201508-202012
18X8J, #,TYPE T:REFER ILLUST.
main42611-60G70i202012-202104
18X8J, #,TYPE S:REFER ILLUST.
sub42611-60C21
main42611-60G80i202012-202104
18X8J, #,TYPE T:REFER ILLUST.
sub42611-60C30
42601CNUT, HUB (FOR AXLE)
main90942-01103i200709-202104
TYPE B:REFER ILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
main42607-33011i200709-201508
sub42607-33012
main42607-48010i201508-202104
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
main42607-33011i200709-201508
sub42607-33012
main42607-48010i201508-202104
4260BCOVER SUB-ASSY, WHEEL HUB
main4260B-60410i201508-202104
42611GVALVE (FOR TUBELESS TIRE)
42611JVALVE (FOR TUBELESS TIRE SPARE)
42611UCAP, TIRE VALVE
main90942-05039i200709-202104
42611WCAP, TIRE VALVE (FOR SPARE)
main90942-05039i200709-202104
42652TIRE
main42652-60B80
main42652-60B81
main42652-60B90
main42652-60B91
main42652-60J80
main42652-60K00
42652ATIRE (FOR SPARE)

14 parts on this diagram · 3 diagrams in section
