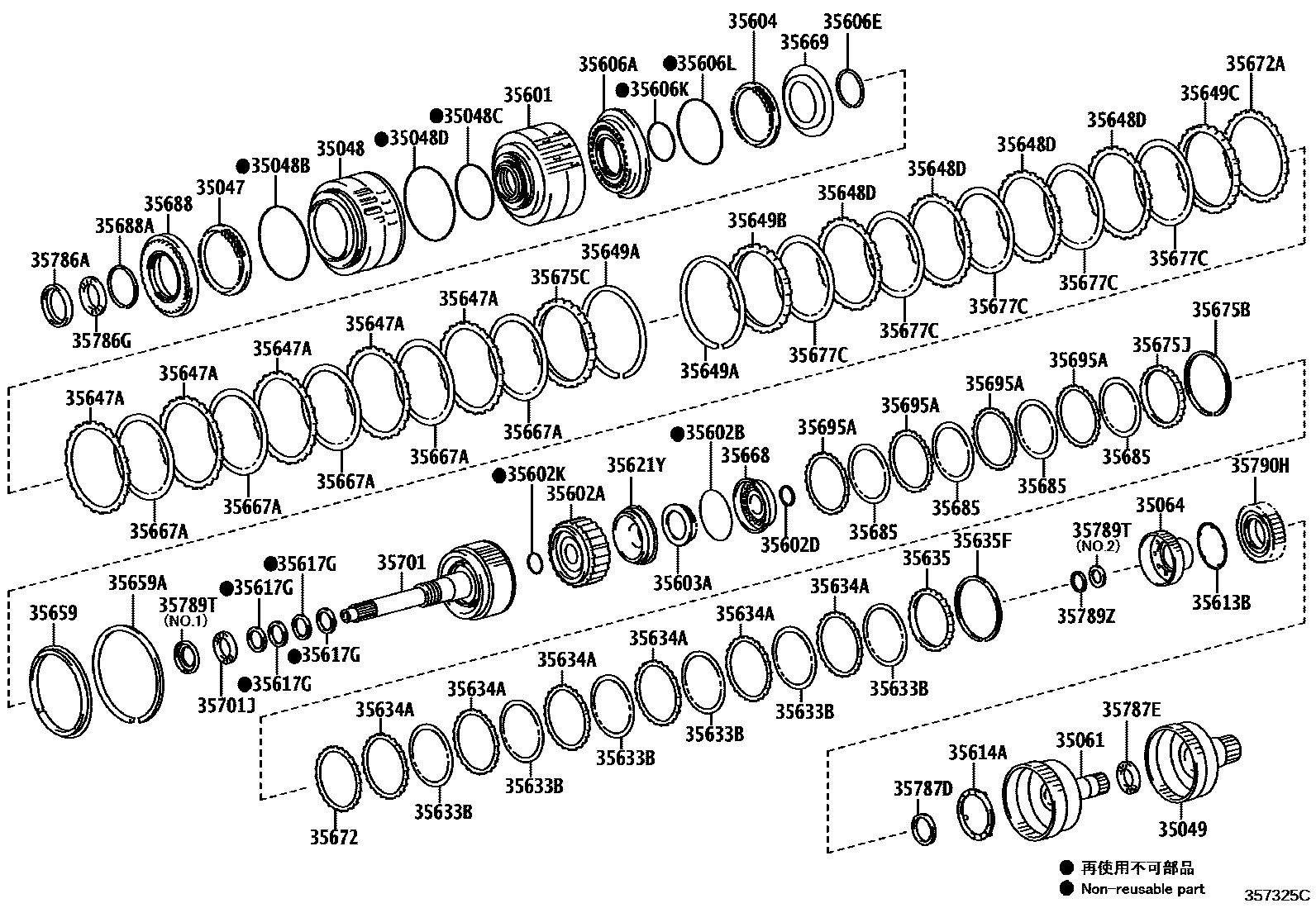

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
35047SPRING SUB-ASSY, REVERSE CLUTCH RETURN
(L)
REAR
(J)
FRONT
35048PISTON SUB-ASSY, REVERSE CLUTCH
35048BRING, O (FOR REVERSE CLUTCH PISTON)
35048CRING, O(FOR REVERSE CLUTCH PISTON INNER)
35048DRING, O(FOR DIRECT CLUTCH PISTON OUTER)
35049HUB SUB-ASSY, REVERSE CLUTCH
35061HUB SUB-ASSY, FORWARD CLUTCH
35064HUB SUB-ASSY, COAST CLUTCH
35601DRUM SUB-ASSY, CLUTCH
35602APISTON SUB-ASSY, FORWARD CLUTCH
35602BRING, O (FOR FORWARD CLUTCH PISTON)
35602DRING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRING)
35602KRING, O(FOR FORWARD CLUTCH PISTON INNER)
35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN
(L)
(J)
35604SPRING SUB-ASSY, DIRECT CLUTCH RETURN
(L)
(J)
35606APISTON SUB-ASSY, DIRECT CLUTCH
35606ERING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRING)
(J)
(L)
35606KRING, O(FOR DIRECT CLUTCH PISTON INNER)
35606LRING, O(FOR DIRECT CLUTCH PISTON OUTER)
35614AWASHER, CLUTCH HUB THRUST, NO.3
35617GRING, CLUTCH DRUM OIL SEAL
35621YPISTON, COAST CLUTCH
(J)
35634APLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
T=1.8,(J)
T=1.8
T=1.8
35635FLANGE, FORWARD CLUTCH
T=4.4,MARK 0
T=4.5,MARK 1
T=4.6,MARK 2
T=4.7,MARK 3
T=4.8,MARK 4
T=4.9,MARK 5
T=5.0,MARK 6
T=5.1,MARK 7
T=5.2,MARK 8
T=3.0 MARK 0,(J)
T=3.0 MARK 0
T=3.1 MARK 1,(J)
T=3.1 MARK 1
T=3.2 MARK 2,(J)
T=3.2 MARK 2
T=3.3 MARK 3
T=3.3 MARK 3,(J)
T=3.4 MARK 4,(J)
T=3.4 MARK 4
T=3.5 MARK 5,(J)
T=3.5 MARK 5
T=3.6 MARK 6
T=3.6 MARK 6,(J)
T=3.7 MARK 7
T=3.7 MARK 7,(J)
T=3.8 MARK 8
T=3.8 MARK 8,(J)
T=3.9 MARK A,(J)
T=3.9 MARK A
T=4.0 MARK B,(J)
T=4.0 MARK B
T=4.1 MARK C
T=4.1 MARK C,(J)
35635FRING SNAP (FOR FOWARD CLUTCH FLANGE)
(J)
(L)
35647APLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
(J)
35648DPLATE, CLUTCH, NO.3
(J)
35649FLANGE, REVERSE CLUTCH
T=3.8
T=3.9
T=4.0
T=4.1
T=4.2
T=4.3
T=4.4
T=4.5
T=4.6
T=4.7
T=4.8
35649ARING, HOLE SNAP(FOR REVERSE CLUTCH FLANGE)
(J)
(L)
35649BFLANGE, REVERSE CLUTCH
T=2.4 MARK 0,(J)
T=2.4 MARK 0
35649CFLANGE, REVERSE CLUTCH
T=2.4 MARK 0,(J)
T=2.4 MARK 0
T=2.5 MARK 1,(J)
T=2.5 MARK 1
T=2.6 MARK 2
T=2.6 MARK 2,(J)
T=2.7 MARK 3
T=2.7 MARK 3,(J)
T=2.8 MARK 4
T=2.8 MARK 4,(J)
T=2.9 MARK 5,(J)
T=2.9 MARK 5
T=3.0 MARK 6,(J)
T=3.0 MARK 6
T=3.1 MARK 7,(J)
T=3.1 MARK 7
T=3.2 MARK 8,(J)
T=3.2 MARK 8
T=3.3 MARK A,(J)
T=3.3 MARK A
T=3.4 MARK B,(J)
T=3.4 MARK B
T=3.5 MARK C,(J)
T=3.5 MARK C
35659SLEEVE, REVERSE CLUTCH REACTION
35659ARING, SNAP (FOR REVERSE CLUTCH REACTION SLEEVE)
(J)
(L)
35669BALANCER, CLUTCH, NO.2
(J)
35672PLATE, CLUTCH CUSHION
(L)
(J)
35672APLATE, CLUTCH CUSHION (FOR DIRECT MULTIPLE DISC CLUTCH)
(L)
(J)
35675BRING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)
(J)
(L)
35675CFLANGE, DIRECT CLUTCH
T=4.0,MARK 40
T=4.2,MARK 42
T=4.4,MARK 44
T=4.6,MARK 46
T=4.8,MARK 48
T=4.1,MARK 41
T=4.3,MARK 43
T=4.5,MARK 45
T=4.7,MARK 47
T=3.5
T=3.5,(J)
T=3.6
T=3.6,(J)
T=3.7,(J)
T=3.7
T=3.8
T=3.8,(J)
T=3.9,(J)
T=3.9
T=4.0,(J)
T=4.0
T=4.1
T=4.1,(J)
T=4.2
T=4.2,(J)
T=4.3
T=4.3,(J)
35675JFLANGE, COAST CLUTCH
T=3.0
(J),T=3.0
T=3.0,MARK 0,(J)
(J),T=3.1
T=3.1
T=3.1,MARK 1,(J)
(J),T=3.2
T=3.2
T=3.2,MARK 2,(J)
(J),T=3.3
T=3.3
T=3.3,MARK 3,(J)
T=3.4,MARK 4,(J)
T=3.4
(J),T=3.4
T=3.5
(J),T=3.5
T=3.5,MARK 5,(J)
(J),T=3.6
T=3.6,MARK 6,(J)
T=3.6
T=3.7,MARK 7,(J)
(J),T=3.7
T=3.7
(J),T=3.8
T=3.8
T=3.8,MARK 8,(J)
T=3.9
(J),T=3.9
T=3.9,MARK A,(J)
T=4.0,MARK B,(J)
T=4.0
(J),T=4.0
35677CDISC, REAR CLUTCH
(J)
35685DISC, COAST CLUTCH
(J)
35688ARING, SNAP (FOR REVERSE CLUTCH RETURN SPRING)
(J)
(L)
35695APLATE, COAST CLUTCH
(J)
35701SHAFT SUB-ASSY, INPUT
(L)
(J)
35701JBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT FRONT)
(J)
(L)
35786ARACE, THRUST BEARING, NO.1
(L)
(J)
35786GBEARING,THRUST NEEDLE ROLLER
(J)
(L)
35787DBEARING, THRUST NEEDLE ROLLER
(J)
(L)
35787EBEARING, THRUST NEEDLE ROLLER
(J)
(L)
35789TRACE, THRUST BEARING (INPUT SHAFT REAR)
(L),NO.2
(J),NO.1
NO.1
(J),NO.2
NO.2
35789ZBEARING, THRUST NEEDLE ROLLER
(J)
(L)
35790HCLUTCH ASSY, 1WAY NO.4
TYPE A:REFER 35-01
TYPE B:REFER 35-01
57 parts on this diagram · 2 diagrams in section
