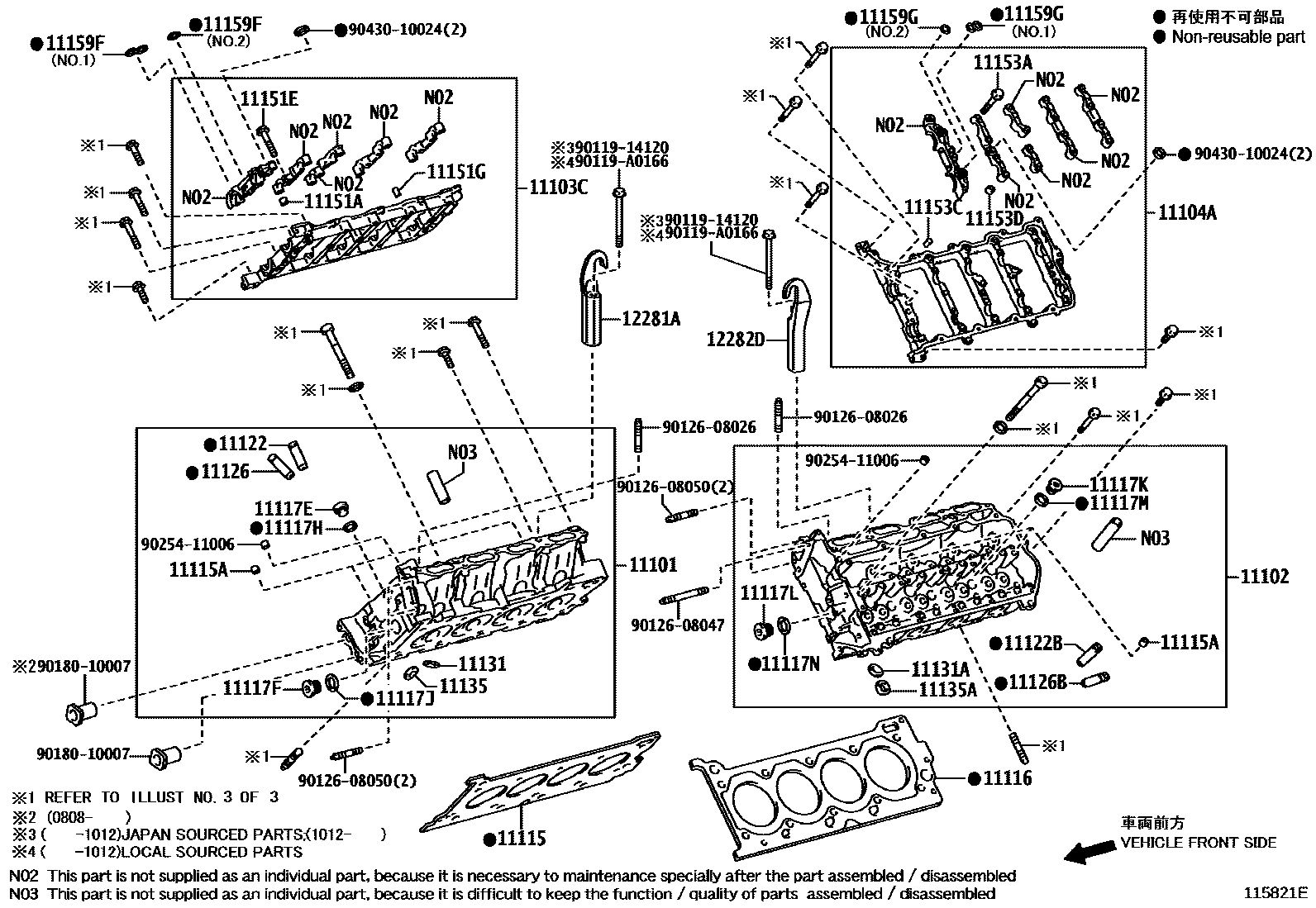

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
*494
11102HEAD, CYLINDER, LH
*494
11103CHOUSING SUB-ASSY, CAMSHAFT, RH
(J),*145
*119
11104AHOUSING SUB-ASSY, CAMSHAFT, LH
(J),*145
*119
11115GASKET, CYLINDER HEAD
11115APIN, RING
*119
*145
11116GASKET, CYLINDER HEAD, NO.2
*145
*119
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
*145
*119
11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2
*145
*119
11117HGASKET(FOR WATER HOLE)
*119
*145
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
*145
*119
11117KPLUG, W/HEAD STRAIGHT SCREW, LH NO.1
*145
*119
11117LPLUG, W/HEAD STRAIGHT SCREW, LH NO.2
*145
*119
11117MGASKET(FOR WATER HOLE NO.2)
*145
*119
11117NGASKET(FOR CYLINDER HEAD SCREW PLUG NO.2)
*145
*119
11122BUSH, INTAKE VALVE GUIDE
STD
O/S 0.05
O/S 0.05,*119
O/S 0.05,*145
O/S 0.05
11122BBUSH, INTAKE VALVE GUIDE, NO.2
STD
O/S 0.05
O/S 0.05,*145
O/S 0.05,*119
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
11126BBUSH, EXHAUST VALVE GUIDE, NO.2
11131SEAT, INTAKE VALVE
STD,(L),*145
STD,*119
O/S 0.03,(L),*145
O/S 0.03
O/S 0.03,*119
11131ASEAT, INTAKE VALVE, NO.2
STD,(L),*145
STD,*119
O/S 0.03,(L),*145
O/S 0.03
O/S 0.03,*119
11135SEAT, EXHAUST VALVE
STD,(L),*145
STD,*119
STD
STD,(J),*145
STD,*119
O/S 0.03,(L),*145
O/S 0.03
O/S 0.03,*119
O/S 0.03
O/S 0.03,*119
O/S 0.03,(J),*145
11135ASEAT, EXHAUST VALVE, NO.2
STD,(L),*145
STD,*119
STD
STD,(J),*145
STD,*119
O/S 0.03,(L),*145
O/S 0.03
O/S 0.03,*119
O/S 0.03
O/S 0.03,(J),*145
O/S 0.03,*119
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=8,OD=11,*145
L=8,OD=11,*119
L=8,OD=11
11151EBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.1)
(J),*145
*119
(L),*145
11151GPIN, STRAIGHT(FOR CAMSHAFT HOUSING RH)
*145
*119
11153ABOLT(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.1)
(J),*145
*119
(L),*145
11153CPIN, STRAIGHT(FOR CAMSHAFT HOUSING LH)
*145
*119
11153DPIN, RING(FOR CAMSHAFT BEARING CAP SETTING LH)
*145
*119
11159FGASKET, CAMSHAFT BEARING CAP OIL HOLE, RH
NO.1,(L),*145
NO.2,(L),*145
NO.1
NO.1,(J),*145
*119,NO.1
NO.2,(J),*145
*119,NO.2
NO.2
11159GGASKET, CAMSHAFT BEARING CAP OIL HOLE, LH
NO.1,(L),*145
NO.2,(L),*145
NO.1,(J),*145
NO.1
*119,NO.1
*119,NO.2
NO.2,(J),*145
NO.2
12281AHANGER, ENGINE, NO.1
*145
*119
12282DHANGER, ENGINE, NO.2
*145
*119
9011914120
90119A0166
main90119-A0166
9012608026
9012608047
9012608050
9018010007
9025411006
9043010024
41 parts on this diagram · 3 diagrams in section
