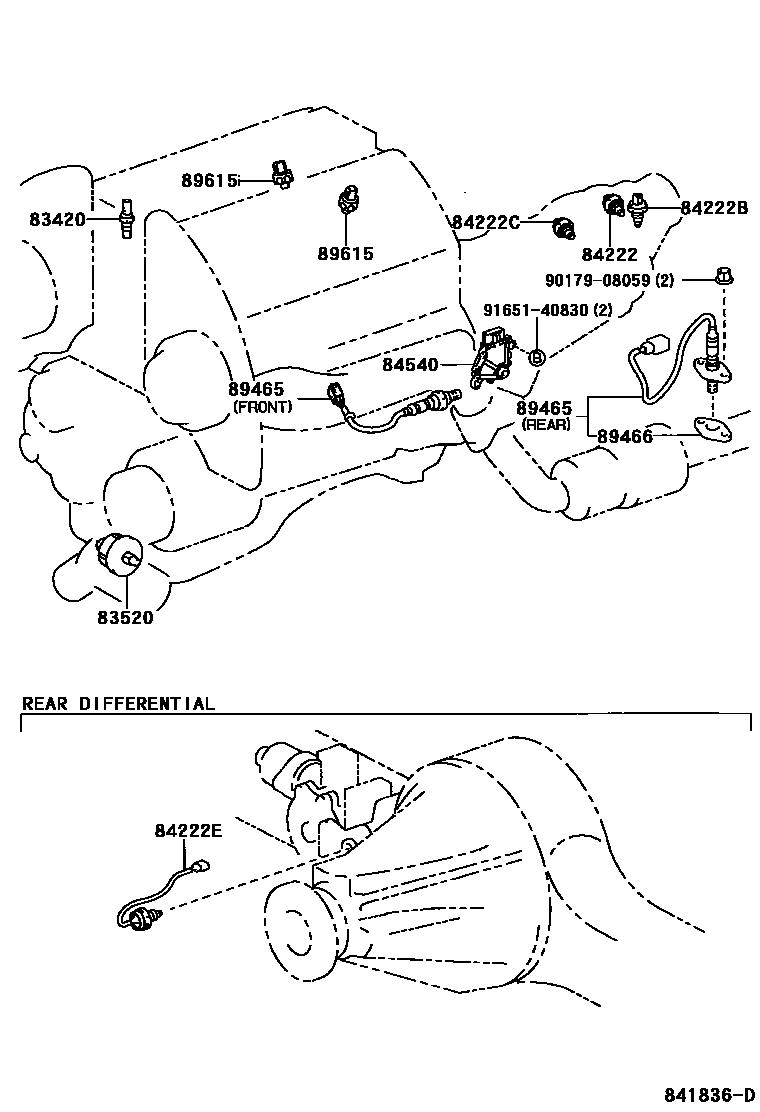

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20040iUZJ100199801-200505

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-35020iUZJ100199801-200409

sub83520-60050

main83520-60050iUZJ100200409-200505

sub83520-60051

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-12010iUZJ100199801-200708

84222BSWITCH, TRANSFER INDICATOR, NO.2

main84222-60080iUZJ100199801-199909

sub84222-60081

main84222-60081iUZJ100199909-200708

84222CSWITCH, TRANSFER INDICATOR, NO.3

main84222-12010iUZJ100199801-200708

84222ESWITCH, DIFFERENTIAL LOCK INDICATOR

main84222-60090iUZJ100199801-200208

84540SWITCH ASSY, NEUTRAL START

main84540-30270iUZJ100199801-199907

main84540-51010iUZJ100199907-200505

main84540-71010iUZJ100200505-200708

89465SENSOR, OXYGEN

main89465-50060iUZJ100199801-200202

FRONT

sub89465-50150

main89465-50150iUZJ100200202-200208

FRONT

main89465-60150iUZJ100200208-200505

FRONT

main89465-60290iUZJ100200505-200708

LH

main89465-60300iUZJ100200505-200708

RH

main89465-69175iUZJ100200208-200505

REAR

main89465-80011iUZJ100199801-200208

REAR

89466GASKET, OXYGEN SENSOR

main89466-20020iUZJ100199801-200505

89615SENSOR, KNOCK CONTROL

main89615-20090iUZJ100200505

main89615-22030iUZJ100199801-200004

main89615-52010iUZJ100200004-200505

9017908059

main90179-08059

9165140830

main91651-40830

12 parts on this diagram · 18 diagrams in section
