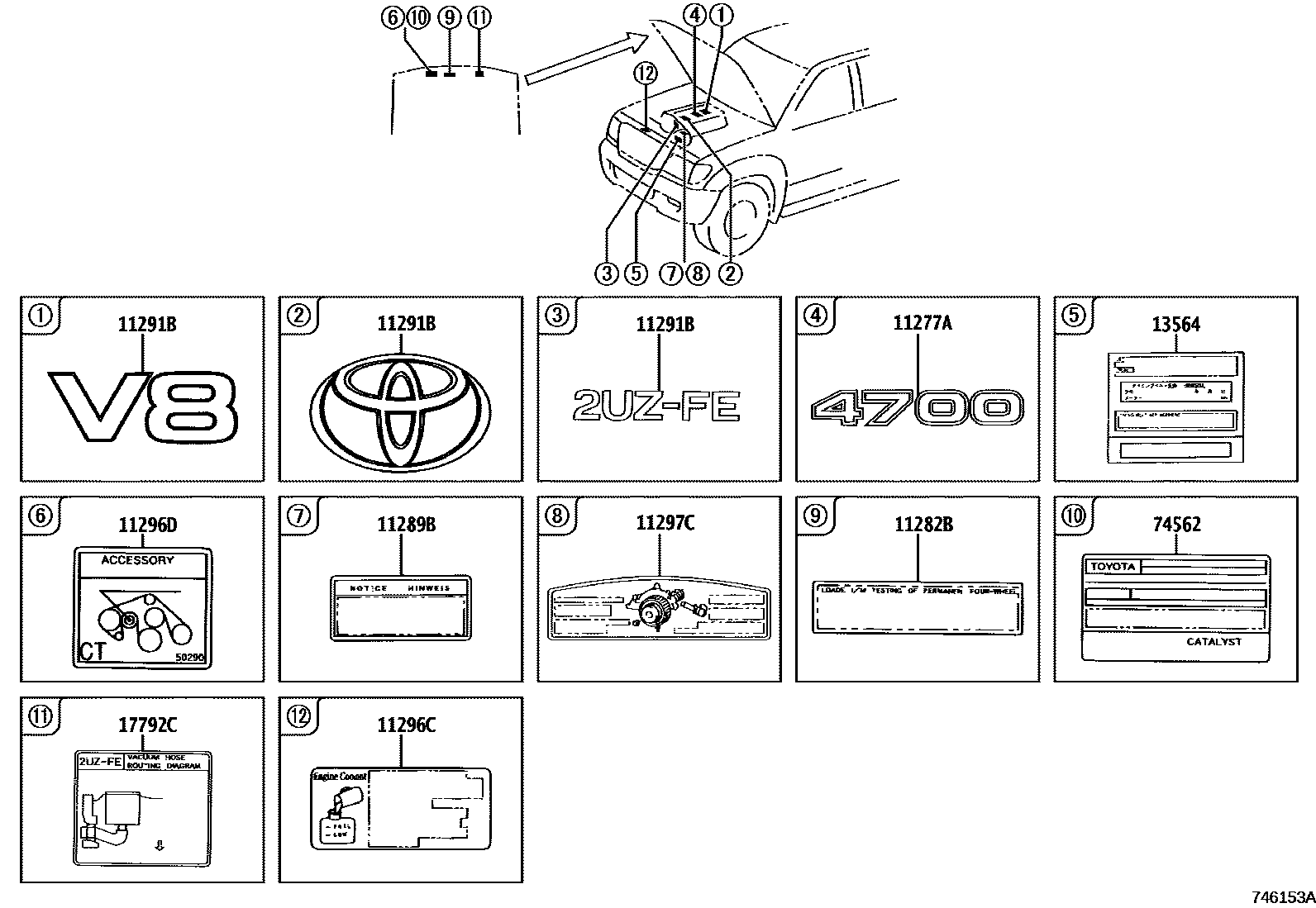

CAUTION PLATE

0001 1 0002 1

11277APLATE, ENGINE SPECIFICATION, NO.2

main11292-50020i2UZFE..UZJ100199801-200708

11282BLABEL, LOADED TESTING CAUTION

main11282-74010iUZJ100199801-200208

11289BLABEL, SPARK PLUG NOTICE

main11289-50010iUZJ100199801-200702

11291BPLATE, ENGINE NAME

main11291-50070i2UZFE..UZJ100199801-200708

V8

main11291-50090i2UZFE..UZJ100199801-200708

TOYOTA MARK

main11291-50120iUZJ100199801-200708

2UZ-FE

11296CLABEL, ENGINE SERVICE INFORMATION

main11296-27020i2UZFE..UZJ100200310-200612

11296DLABEL, ENGINE SERVICE INFORMATION

main11296-50290iUZJ100199801-200708

11297CLABEL, ENGINE SERVICE INFORMATION, NO.2

main11297-50010i2UZFE..UZJ100200505-200702

13564LABEL, TIMING BELT REPLACEMENT INFORMATION

main13564-10010iUZJ100200208-200505

17792CLABEL, ENGINE VACUUM HOSE INFORMATION

main17792-50040i2UZFE..UZJ100199801-199808

main17792-50041i2UZFE..UZJ100199808-200208

main17792-50042i2UZFE..UZJ100200208-200505

main17792-50043i2UZFE..UZJ100200505-200601

main17792-50044i2UZFE..UZJ100200601-200708

74562PLATE, EMISSION CONTROL SYSTEM INFORMATION

main11298-50180iUZJ100199801-199808

main11298-50181iUZJ100199808-199907

main11298-50182iUZJ100199907-200008

main11298-50183iUZJ100200008-200108

main11298-50184iUZJ100200108-200208

main11298-50200iUZJ100199801-199808

CALIFORNIA SPEC

main11298-50360iUZJ100200208-200307

main11298-50361iUZJ100200307-200407

main11298-50362iUZJ100200407-200505

main11298-50363iUZJ100200505-200608

main11298-50364iUZJ100200608-200708

10 parts on this diagram · 2 diagrams in section
