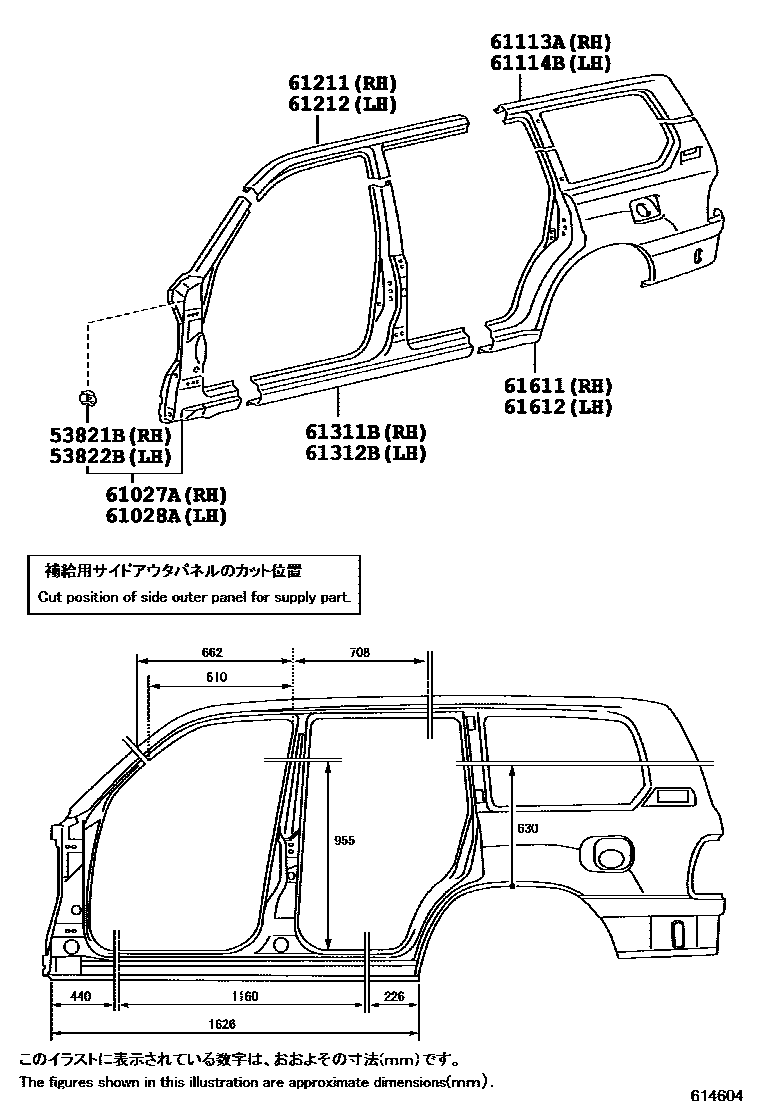

SIDE MEMBER
53821BBRACKET, FRONT FENDER, REAR RH
53822BBRACKET, FRONT FENDER, REAR LH
61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH
61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH
61113APANEL, SIDE, OUTER NO.2 RH
61114BPANEL, SIDE, OUTER NO.2 LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61311BPILLAR, CENTER BODY, OUTER RH
61312BPILLAR, CENTER BODY, OUTER LH
61611PANEL, QUARTER, RH
W(REAR SIDE GLASS FIXED TYPE)
W(REAR SIDE GLASS FIXED TYPE & SIDE PROTECTION MOULDING---WIDE TYPE)
W(REAR SIDE GLASS SWING TYPE & SIDE PROTECTION MOULDING---WIDE TYPE)
W(REAR SIDE GLASS SWING TYPE)
W(REAR SIDE GLASS SWING TYPE & SIDE PROTECTION MOULDING---WIDE TYPE)
61612PANEL, QUARTER, LH
W(REAR SIDE GLASS FIXED TYPE)
W(REAR SIDE GLASS FIXED TYPE & SIDE PROTECTION MOULDING---WIDE TYPE)
W(REAR SIDE GLASS SWING TYPE & SIDE PROTECTION MOULDING---WIDE TYPE)
W(REAR SIDE GLASS SWING TYPE)
W(REAR SIDE GLASS SWING TYPE & SIDE PROTECTION MOULDING---WIDE TYPE)
12 parts on this diagram · 3 diagrams in section
