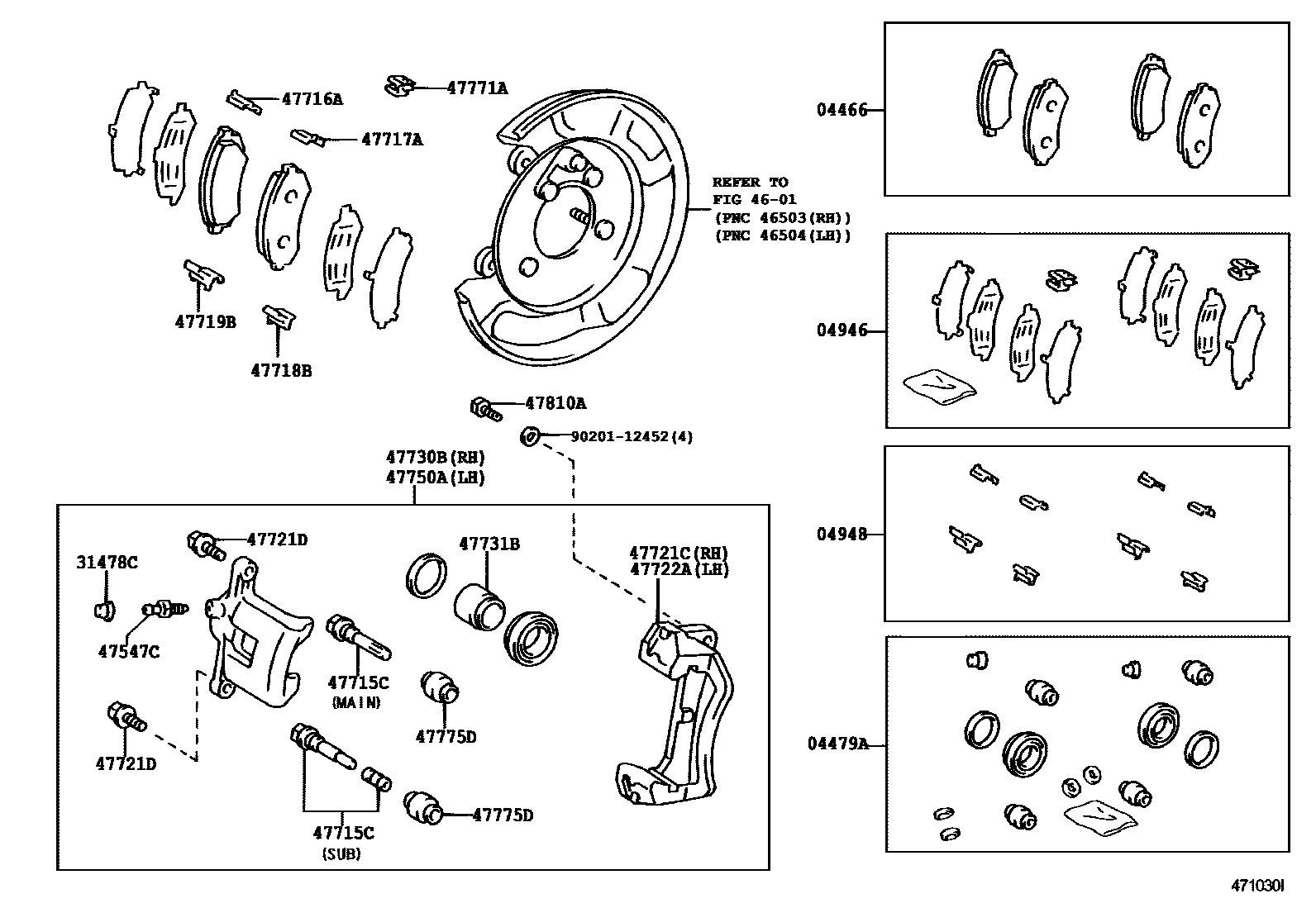

REAR DISC BRAKE CALIPER & DUST COVER
04466PAD KIT, DISC BRAKE, REAR
MARK AK PA511
04948FITTING KIT, DISC BRAKE, REAR
31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
4601
47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)
47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)
MAIN PIN SIDE
SUB PIN SIDE
47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)
47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)
47718BPLATE, PAD SUPPORT, NO.3(FOR REAR DISK BRAKE)
47719BPLATE, PAD SUPPORT, NO.4(FOR REAR DISK BRAKE)
47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
*8-1.00PX20-9
47731BPISTON, REAR DISC BRAKE
47771APLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)
47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)
47810ABOLT, HEXAGON(FOR REAR CALIPER)
9020112452
main90201-12452
22 parts on this diagram · 2 diagrams in section
