DISC WHEEL & WHEEL CAP

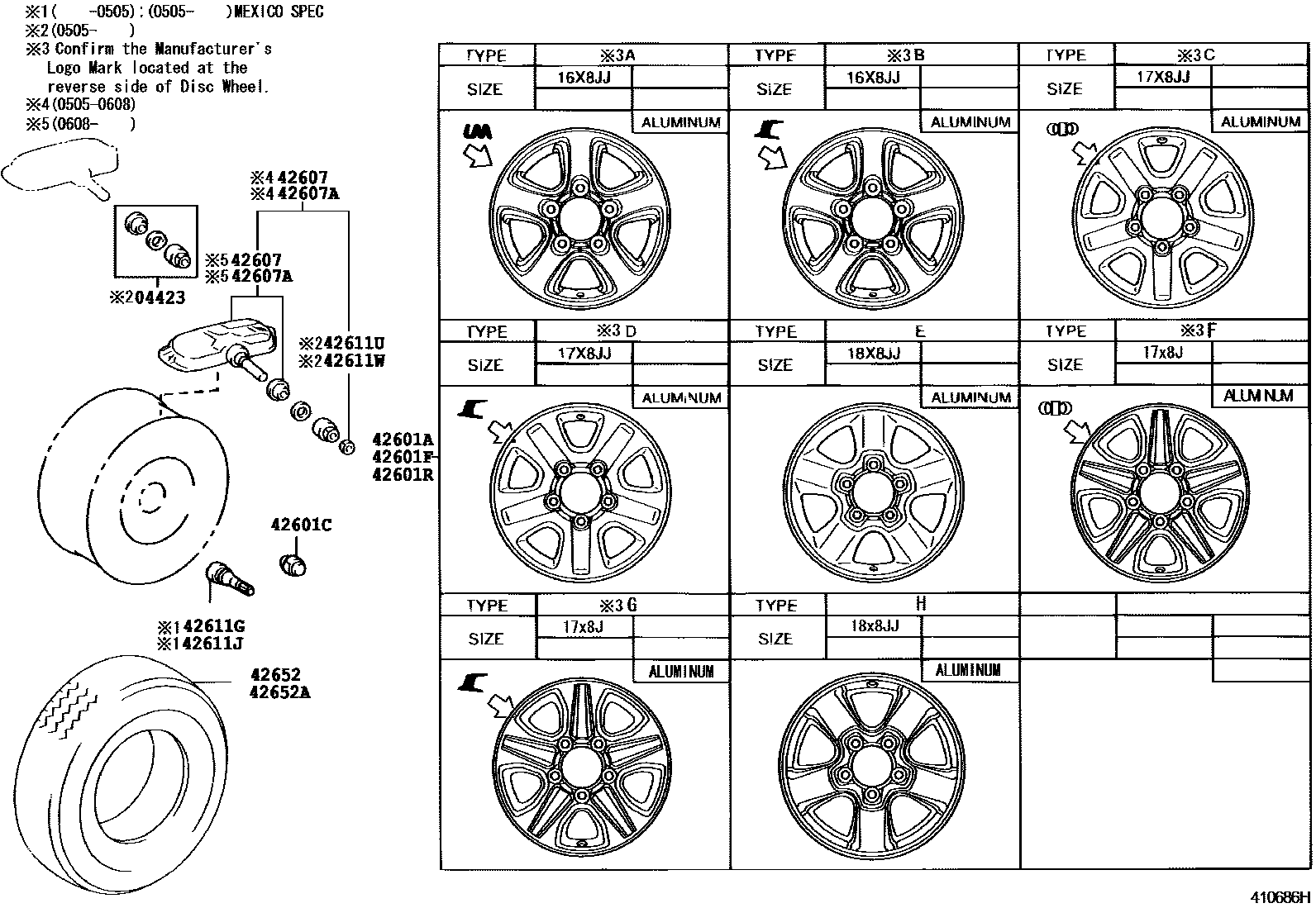

Parts diagram
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
main04423-33030i200608
sub04423-33060
main04423-35020i200505-200604
main04423-42010i200604-200608
42601AWHEEL, DISC (FOR SPARE)
main42611-60180i199801-200008
16X8JJ, #,TYPE B:REFER TO ILLUSTRATION
sub42611-60181
main42611-60210i199801-200005
16X8JJ, #,TYPE A:REFER TO ILLUSTRATION
sub42611-60180
main42611-60300i200008-200208
16X8JJ,TYPE A:REFER TO ILLUSTRATION
sub42611-60310
main42611-60310i200008-200208
16X8JJ,TYPE B:REFER TO ILLUSTRATION
main42611-60360i200505-200509
17X8J, #,TYPE F:REFER ILLUST.
sub42611-60361
main42611-60361i200510
17X8J, #,TYPE F:REFER ILLUST.
sub42611-60371
main42611-60370i200505-200509
17X8J, #,TYPE G:REFER ILLUST.
sub42611-60371
main42611-60371i200510
17X8J, #,TYPE G:REFER ILLUST.
main42611-60450i200407-200505
17X8JJ, #,MEXICO SPEC,TYPE C:REFER ILLUST.
sub42611-60460
main42611-60450i200208-200407
17X8JJ, #,TYPE C:REFER ILLUST.
sub42611-60460
main42611-60460i200208-200407
17X8JJ, #,TYPE D:REFER ILLUST.
sub42611-60461
main42611-60460i200407-200505
17X8JJ, #,MEXICO SPEC,TYPE D:REFER ILLUST.
sub42611-60461
main42611-60510i200208-200505
18X8JJ,TYPE E:REFER ILLUST.
main42611-60540i200505
18X8JJ,TYPE H:REFER ILLUST.
sub42611-60550
42601CNUT, HUB (FOR AXLE)
main90942-01103i199801-200505
42601FWHEEL, DISC (FOR FRONT)
main42611-60180i199801-200008
16X8JJ, #,TYPE B:REFER TO ILLUSTRATION
sub42611-60181
main42611-60210i199801-200005
16X8JJ, #,TYPE A:REFER TO ILLUSTRATION
sub42611-60180
main42611-60300i200008-200208
16X8JJ,TYPE A:REFER TO ILLUSTRATION
sub42611-60310
main42611-60310i200008-200208
16X8JJ,TYPE B:REFER TO ILLUSTRATION
main42611-60360i200505-200509
17X8J, #,TYPE F:REFER ILLUST.
sub42611-60361
main42611-60361i200510
17X8J, #,TYPE F:REFER ILLUST.
sub42611-60371
main42611-60370i200505-200509
17X8J, #,TYPE G:REFER ILLUST.
sub42611-60371
main42611-60371i200510
17X8J, #,TYPE G:REFER ILLUST.
main42611-60450i200208-200407
17X8JJ, #,TYPE C:REFER TO ILLUSTRATION
sub42611-60460
main42611-60450i200407-200505
17X8JJ, #,TYPE C:REFER TO ILLUSTRATION;MEXICO SPEC
sub42611-60460
main42611-60460i200208-200407
17X8JJ, #,TYPE D:REFER TO ILLUSTRATION
sub42611-60461
main42611-60460i200407-200505
17X8JJ, #,TYPE D:REFER TO ILLUSTRATION;MEXICO SPEC
sub42611-60461
main42611-60510i200208-200505
18X8JJ,TYPE E:REFER TO ILLUSTRATION
main42611-60540i200505
18X8JJ,TYPE H:REFER ILLUST.
sub42611-60550
42601RWHEEL, DISC (FOR REAR)
main42611-60180i199801-200008
16X8JJ, #,TYPE B:REFER TO ILLUSTRATION
sub42611-60181
main42611-60210i199801-200005
16X8JJ, #,TYPE A:REFER TO ILLUSTRATION
sub42611-60180
main42611-60300i200008-200208
16X8JJ,TYPE A:REFER TO ILLUSTRATION
sub42611-60310
main42611-60310i200008-200208
16X8JJ,TYPE B:REFER TO ILLUSTRATION
main42611-60360i200505-200510
17X8J, #,TYPE F:REFER ILLUST.
sub42611-60361
main42611-60361i200510
17X8J, #,TYPE F:REFER ILLUST.
sub42611-60371
main42611-60370i200505-200510
17X8J, #,TYPE G:REFER ILLUST.
sub42611-60371
main42611-60371i200510
17X8J, #,TYPE G:REFER ILLUST.
main42611-60450i200407-200505
17X8JJ, #,TYPE C:REFER TO ILLUSTRATION;MEXICO SPEC
sub42611-60460
main42611-60450i200208-200407
17X8JJ, #,TYPE C:REFER TO ILLUSTRATION
sub42611-60460
main42611-60460i200407-200505
17X8JJ, #,TYPE D:REFER TO ILLUSTRATION;MEXICO SPEC
sub42611-60461
main42611-60460i200208-200407
17X8JJ, #,TYPE D:REFER TO ILLUSTRATION
sub42611-60461
main42611-60510i200208-200505
18X8JJ,TYPE E:REFER TO ILLUSTRATION
main42611-60540i200505
18X8JJ,TYPE H:REFER ILLUST.
sub42611-60550
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
main42607-33021i200608
sub42607-33022
main42607-34020i200505-200608
sub42607-33011
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
main42607-33021i200608
sub42607-33022
main42607-34020i200505-200608
sub42607-33011
42611GVALVE (FOR TUBELESS TIRE)
main90942-05009i199801-200505
main90942-05009i200505
MEXICO SPEC
42611JVALVE (FOR TUBELESS TIRE SPARE)
main90942-05009i199801-200505
main90942-05009i200505
MEXICO SPEC
42611UCAP, TIRE VALVE
main90942-05037i200608
main90942-05038i200505-200608
sub90942-05039
42611WCAP, TIRE VALVE (FOR SPARE)
main90942-05037i200608
main90942-05038i200505-200608
sub90942-05039
42652TIRE
main42652-60300i199801-200208
275/70R16,*D/L
main42652-60750i200505-200509
275/65R17 115T,*D/L
main42652-60750i200407-200505
275/65R17 115T,*D/L,MEXICO SPEC
main42652-60770i200208-200407
275/65R17,*D/L
main42652-60780i200211-200407
275/65R17,MICHELIN
main42652-60790i200208-200505
275/60R18,*D/L
main42652-60800i200208-200505
275/60R18,*B/S
main42652-60860i200208-200505
275/60R18,MICHELIN
42652ATIRE (FOR SPARE)
main42652-60300i199801-200208
275/70R16,*D/L
main42652-60750i200505-200509
275/65R17 115T,*D/L
main42652-60750i200407-200505
275/65R17 115T,*D/L,MEXICO SPEC
main42652-60770i200208-200407
275/65R17,*D/L
main42652-60780i200211-200407
275/65R17,MICHELIN
main42652-60790i200208-200505
275/60R18,*D/L
main42652-60800i200208-200505
275/60R18,*B/S
main42652-60860i200208-200505
275/60R18,MICHELIN

13 parts on this diagram · 3 diagrams in section
