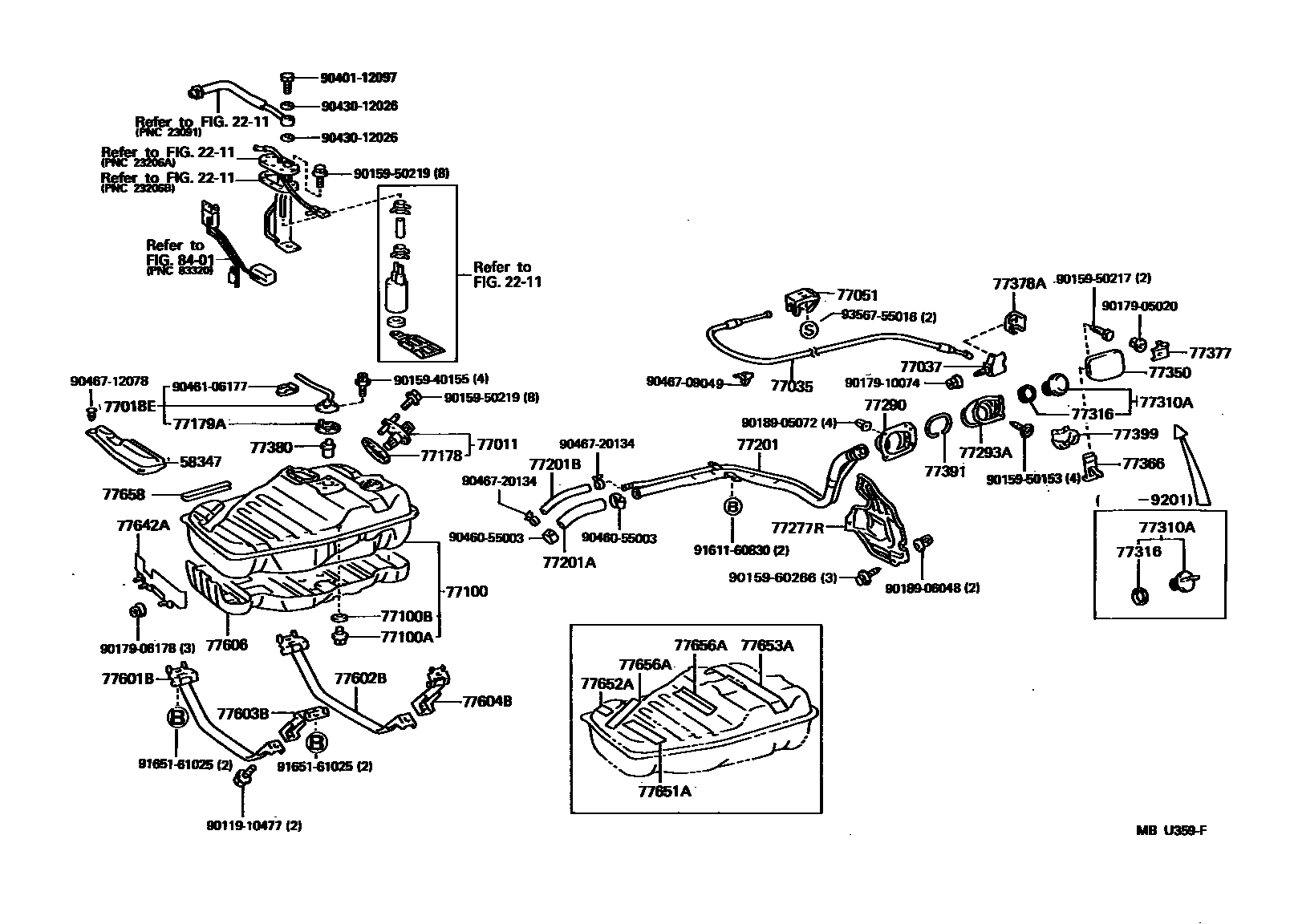

FUEL TANK & TUBE

0001 1 0002 1 0003 1

2211

58347INSULATOR, FUEL TANK HEAT

main58347-60010iFJ80199001-199208

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-60030iFJ80,FZJ80199001-199801

77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT

main77018-60030iFJ80,FZJ80199001-199801

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-60020iFJ80,FZJ80199001-199801

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-12050iFJ80,FZJ80199001-199801

77051LEVER SUB-ASSY, FUEL LID OPEN

main77051-30060-03iFJ80,FZJ80199001-199801

BLUISH GRAY,TRIM1#

sub77051-30060

main77051-30060-06iFZJ80199001-199501

SABLE,TRIM4#

sub77051-30060

main77051-30060-E2iFZJ80199501-199801

OAK,TRIM4#

sub77051-30060

77100TANK ASSY, FUEL

main77001-69035iFJ80199001-199208

sub77001-69036

main77001-69036iFZJ80199208-199801

77100APLUG(FOR FUEL TANK)

main90105-12018iFJ80199001-199208

main90105-12116iFZJ80199208-199801

77100BGASKET(FOR FUEL TANK)

main90430-12245iFJ80,FZJ80199001-199801

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-35030iFJ80,FZJ80199001-199801

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-26010iFJ80,FZJ80199001-199801

sub77179-26011

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-60350iFJ80,FZJ80199001-199801

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main77213-60090iFJ80,FZJ80199001-199801

MARK=TANK

77201BHOSE, FUEL, NO.2(FOR FUEL TANK INLET PIPE)

main95311-13022iFJ80,FZJ80199001-199801

L=220

77277TUBE, FUEL RETURN, NO.1

main77255-60490iFZJ80199208-199801

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-60020iFJ80,FZJ80199001-199801

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-60010iFJ80,FZJ80199001-199801

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-60050iFJ80,FZJ80199001-199801

77310ACAP ASSY, FUEL TANK

main77310-35080iFJ80,FZJ80199001-199801

sub77310-12140

77316GASKET, FUEL TANK CAP

main77316-16010iFJ80,FZJ80199001-199801

77350LID ASSY, FUEL FILLER OPENING

main77350-60010iFJ80,FZJ80199001-199801

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-22020iFJ80,FZJ80199001-199801

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-20030iFJ80,FZJ80199001-199801

77378ACOVER, FUEL FILLER OPENING LID LOCK

main77378-60010iFJ80,FZJ80199001-199801

77380VALVE ASSY, FUEL CUT OFF

main77380-26010iFJ80,FZJ80199001-199801

77391RING, FUEL INLET BOX

main77391-60010iFJ80,FZJ80199001-199801

77399HANGER, FUEL TANK CAP

main77399-60010iFJ80,FZJ80199201-199801

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-60150iFJ80,FZJ80199001-199801

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-60060iFJ80,FZJ80199001-199801

77603BBAND SUB-ASSY, FUEL TANK, NO.2 RH

main77603-60010iFJ80,FZJ80199001-199801

77604BBAND SUB-ASSY, FUEL TANK, NO.2 LH

main77604-60010iFJ80,FZJ80199001-199801

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-60050iFJ80199001-199208

main77606-60070iFZJ80199208-199801

77642APROTECTOR, FUEL TANK, NO.2

main77642-60020iFJ80199001-199208

77651ACUSHION, FUEL TANK, NO.1

main77651-60090iFJ80,FZJ80199001-199801

77652ACUSHION, FUEL TANK, NO.2

main77652-60050iFJ80,FZJ80199001-199801

sub77653-36010

77653ACUSHION, FUEL TANK, NO.3

main77653-60040iFJ80,FZJ80199001-199801

77656ACUSHION, FUEL TANK, NO.4

main77654-60030iFJ80,FZJ80199001-199801

80X262

main77655-60010iFJ80,FZJ80199001-199801

80X330

77658MOULDING, FUEL TANK EDGE

main77658-60040iFJ80,FZJ80199001-199305

8401

9011910477

main90119-10477

9015940155

main90159-40155

9015950153

main90159-50153

9015950217

main90159-50217

9015950219

main90159-50219

9015960266

main90159-60266

9017905020

main90179-05020

9017906178

main90179-06178

9017910074

main90179-10074

9018905072

main90189-05072

9018906048

main90189-06048

9040112097

main90401-12097

9043012026

main90430-12026

9046055003

main90460-55003

9046106177

main90461-06177

9046709049

main90467-09049

9046712078

main90467-12078

9046720134

main90467-20134

9161160830

main91611-60830

9165161025

main91651-61025

9356755016

main93567-55016

61 parts on this diagram · 3 diagrams in section
