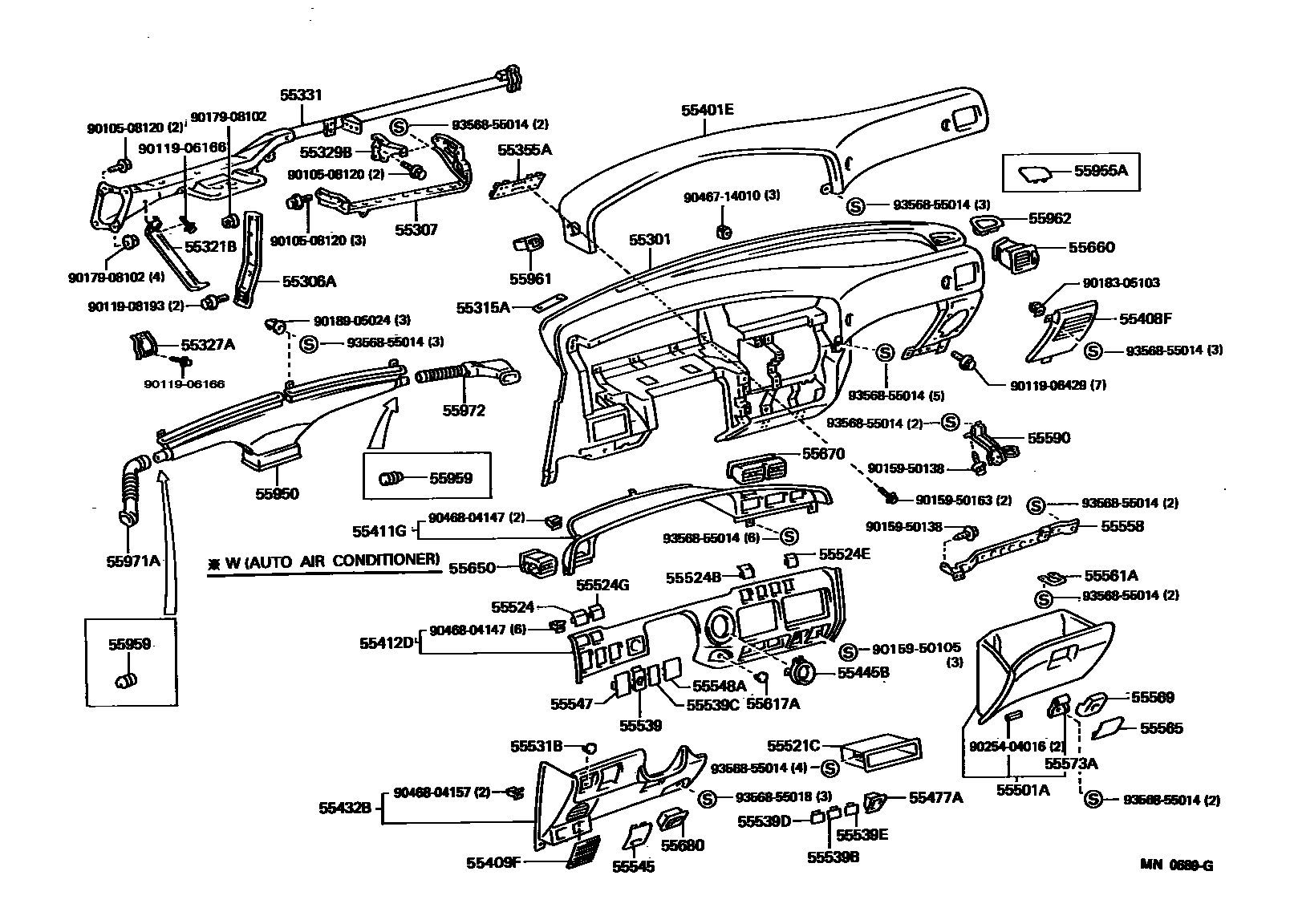

INSTRUMENT PANEL & GLOVE COMPARTMENT
55301PANEL SUB-ASSY, INSTRUMENT
BLUISH GRAY,TRIM1#
SABLE,TRIM4#
BLUISH GRAY,TRIM1#
40TH ANNIVERSARY EDITION,OAK,TRIM4#
OAK,TRIM4#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, LOWER
55315ASPACER, INSTRUMENT PANEL, NO.1
55321BBRACKET, INSTRUMENT PANEL, NO.1
55327ASTAY, INSTRUMENT PANEL, NO.2
55329BSTAY, INSTRUMENT PANEL, NO.4
55331REINFORCEMENT, INSTRUMENT PANEL
55355APLATE, INSTRUMENT PANEL
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
W/O COLD SPEC,BLUISH GRAY,TRIM1#
W/O COLD SPEC,SABLE,TRIM4#
BLUISH GRAY,TRIM1#
SABLE,TRIM4#
BLUISH GRAY,TRIM1#
OAK,TRIM4#
55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1
55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2
55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1
55412DPANEL, INSTRUMENT CLUSTER FINISH, CENTER
55432BPANEL, INSTRUMENT PANEL FINISH, LOWER
BLUISH GRAY,TRIM1#
OAK,TRIM4#
55445BPLATE, INSTRUMENT PANEL FINISH
55477ABEZEL, CIGARETTE LIGHTER HOLE
55501ADOOR SUB-ASSY, GLOVE COMPARTMENT
BLUISH GRAY,TRIM1#
SABLE,TRIM4#
BLUISH GRAY,TRIM1#
OAK,TRIM4#
55521CCOVER, STEREO OPENING
55524COVER, SWITCH BACE HOLE
55524BCOVER, SWITCH BASE HOLE
55524ECOVER, SWITCH BASE HOLE, NO.6
55524GCOVER, SWITCH BASE HOLE, NO.2
55531BCOVER, CHOKE KNOB HOLE
55539COVER, SPARE SWITCH HOLE
W(RHEOSTAT)
55539BCOVER, SPARE SWITCH HOLE, NO.2
55539CCOVER, SPARE SWITCH HOLE
55539DCOVER, SPARE SWITCH HOLE
55539ECOVER, SPARE SWITCH HOLE
55545COVER, FUSE BOX OPENING
55547COVER, REMOTE CONTROL MIRROR HOLE
55548ACOVER, INSTRUMENT PANEL HOLE
55558REINFORCEMENT, GLOVE COMPARTMENT DOOR
55565HANDLE, GLOVE COMPARTMENT DOOR LOCK
55569COVER, GLOVE COMPARTMENT DOOR LOCK
55573AHINGE, GLOVE COMPARTMENT DOOR
55590PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER
55617ACOVER, THROTTLE KNOB HOLE
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
55660REGISTER ASSY, INSTRUMENT PANEL, NO.2
sub55660-60090
55670REGISTER ASSY, INSTRUMENT PANEL, NO.3
55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1
55950NOZZLE ASSY, DEFROSTER
55955APLATE, DEFROSTER NOZZLE OPENING, NO.1
55959COVER, DEFROSTER NOZZLE OPENING, NO.1
55961NOZZLE, SIDE DEFROSTER, NO.1
55962NOZZLE, SIDE DEFROSTER, NO.2
55971ADUCT, SIDE DEFROSTER NOZZLE, NO.1
55972DUCT, SIDE DEFROSTER NOZZLE, NO.2
9010508120
main90105-08120
9011906166
main90119-06166
9011906429
main90119-06429
9011908193
main90119-08193
9015950105
main90159-50105
9015950138
main90159-50138
9015950163
main90159-50163
9017908102
main90179-08102
9018305103
main90183-05103
9018905024
main90189-05024
9025404016
main90254-04016
9046714010
main90467-14010
9046804147
main90468-04147
9046804157
main90468-04157
9356855014
main93568-55014
9356855018
main93568-55018
66 parts on this diagram · 4 diagrams in section
