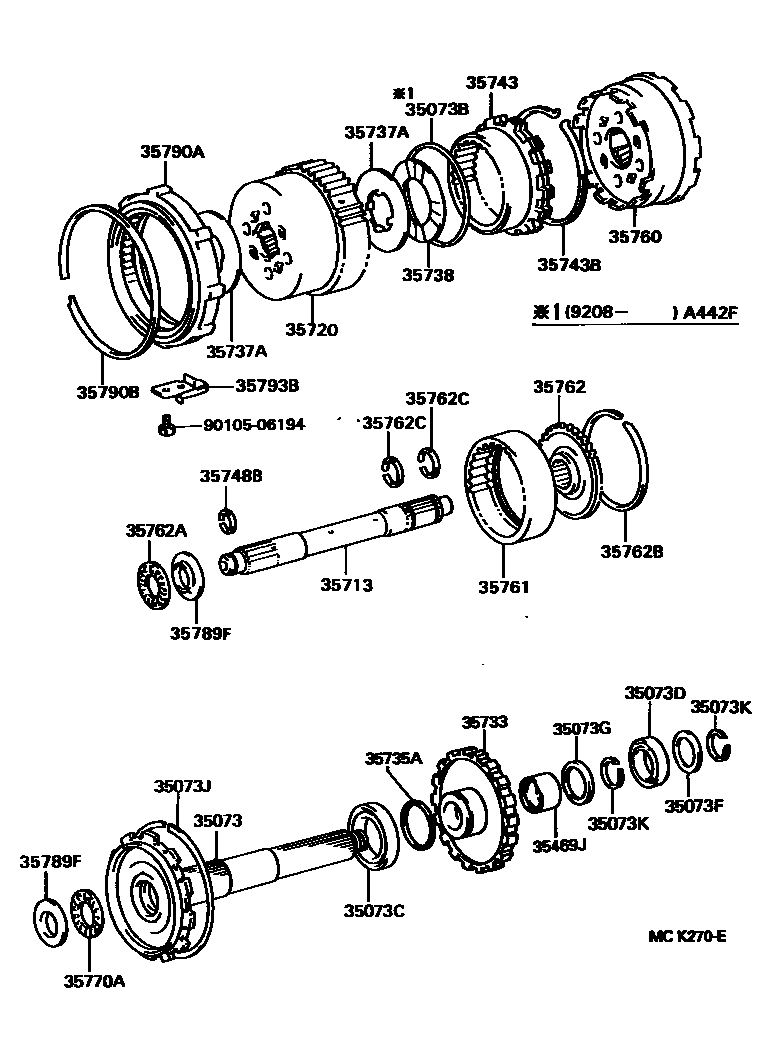

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
35073SHAFT SUB-ASSY, OUTPUT
35073BRING, O (FOR OUTPUT SHAFT)
35073CBEARING, RADIAL BALL (FOR OUTPUT SHAFT FRONT)
35073DBEARING, RADIAL BALL (FOR OUTPUT SHAFT REAR)
35073FSPACER, NO.1 (FOR OUTPUT SHAFT REAR BEARING)
T=1.5,MARK 0
T=1.6,MARK 1
T=1.7,MARK 2
T=1.8,MARK 3
35073GSPACER, NO.2 (FOR OUTPUT SHAFT REAR BEARING)
T=5.2
35073JRING, HOLE SNAP (FOR OUTPUT SHAFT)
35073KRING, SHAFT SNAP (FOR OUTPUT SHAFT REAR BEARING)
35469JSPACER, PARKING LOCK GEAR
35733GEAR, PARKING LOCK
35735ARING, PLANETARY OUTPUT SHAFT OIL SEAL
35738WASHER, PLANETARY CARRIER THRUST, NO.2
35743BRING, HOLE SNAP (FOR FRONT PLANETARY RING GEAR)
35748BRING, INTERMEDIATE SHAFT OIL SEAL
35761GEAR, REAR PLANETARY RING
35762FLANGE, REAR PLANETARY RING GEAR
35762BRING, HOLE SNAP (FOR REAR PLANETARY RING GEAR FLANGE)
35762CRING, SHAFT SNAP (FOR REAR PLANETARY RING GEAR)
35770ABEARING, THRUST (FOR OUTPUT SHAFT)
35789FRACE, THRUST BEARING (FOR REAR PLANETARY FLANGE)
35790ACLUTCH ASSY, 1 WAY
sub35790-36020
35793BRETAINER, 1 WAY CLUTCH
9010506194
main90105-06194
30 parts on this diagram · 2 diagrams in section
