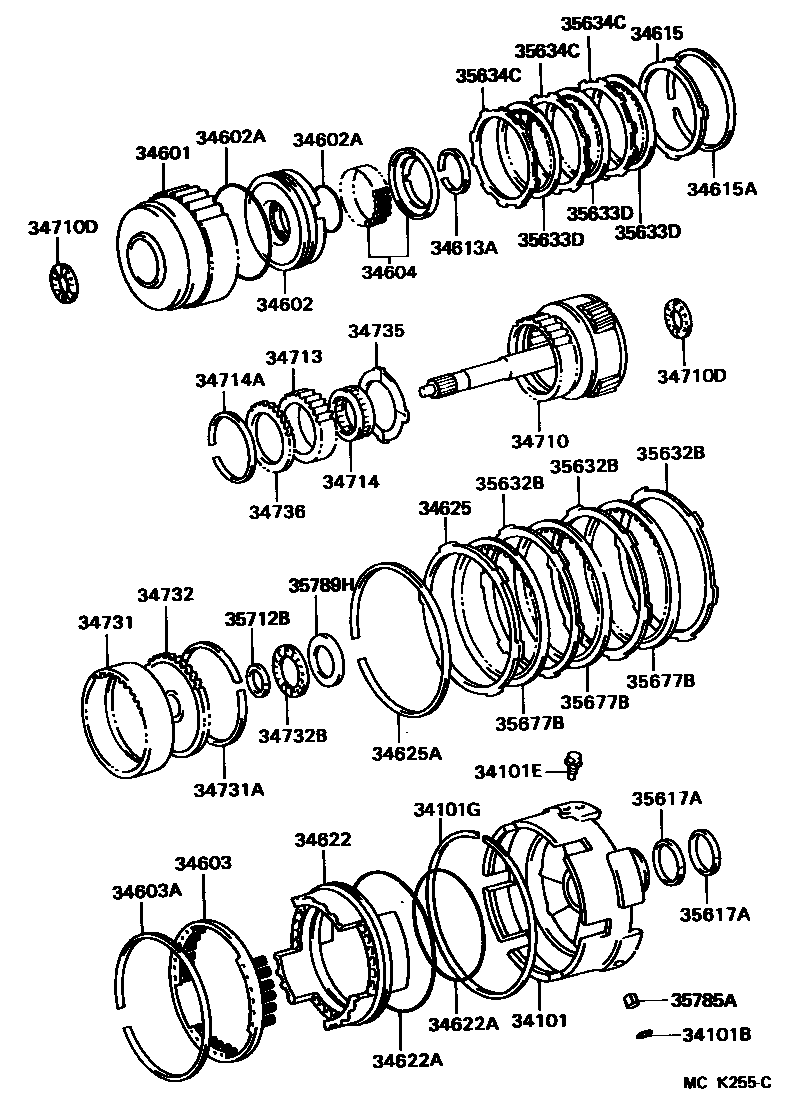

OVERDRIVE GEAR (ATM)
34101BRING, O (FOR OVERDRIVE CASE)
34101EBOLT (FOR OVERDRIVE CASE & TRANSAXLE CASE SETTING)
*12-1.25PX20.5-13
34101GRING, HOLE SNAP (FOR OVERDRIVE CASE)
34601DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH
34602PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH
34602ARING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON)
INNER
OUTER
34603SPRING SUB-ASSY, OVERDRIVE BRAKE RETURN
34613ARING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH RETURN SPRING)
34615FLANGE, OVERDRIVE CLUTCH
T=5.0
T=5.2
T=4.6
T=4.8
34615ARING, HOLE SNAP (FOR OVERDRIVE CLUTCH FLANGE)
34622ARING, O (FOR OVERDRIVE BRAKE PISTON)
OUTER
INNER
34625FLANGE, OVERDRIVE BRAKE, NO.1
T=5.0
T=5.0
34710GEAR ASSY, OVERDRIVE PLANETARY
34710DBEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY GEAR)
RR
RR
FR
FR
FR
34713RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE)
34714CLUTCH, 1 WAY(FOR OVERDRIVE)
34714ARING, HOLE SNAP(FOR 1 WAY CLUTCH)
34731GEAR, OVERDRIVE PLANETARY RING
34731ARING, HOLE SNAP (FOR OVERDRIVE PLANETARY RING GEAR)
34732BBEARING, THRUST(FOR OVERDRIVE PLANETARY RING GEAR FLANGE)
34735WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.1
34736WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.2
35617ARING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE)
35632BPLATE, BRAKE (FOR OVERDRIVE)
T=2.4
T=4.0
35634CPLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)
T=2.0
T=1.75-1.85
35677BDISC, CLUTCH (FOR OVERDRIVE BRAKE)
35712BRING, OIL SEAL (FOR OVERDRIVE PLANETARY RING GEAR FLANGE)
35785ARETAINER, OVERDRIVE CASE RING
35789HRACE, THRUST BEARING (FOR OVERDRIVE CASE)
36 parts on this diagram · 2 diagrams in section
