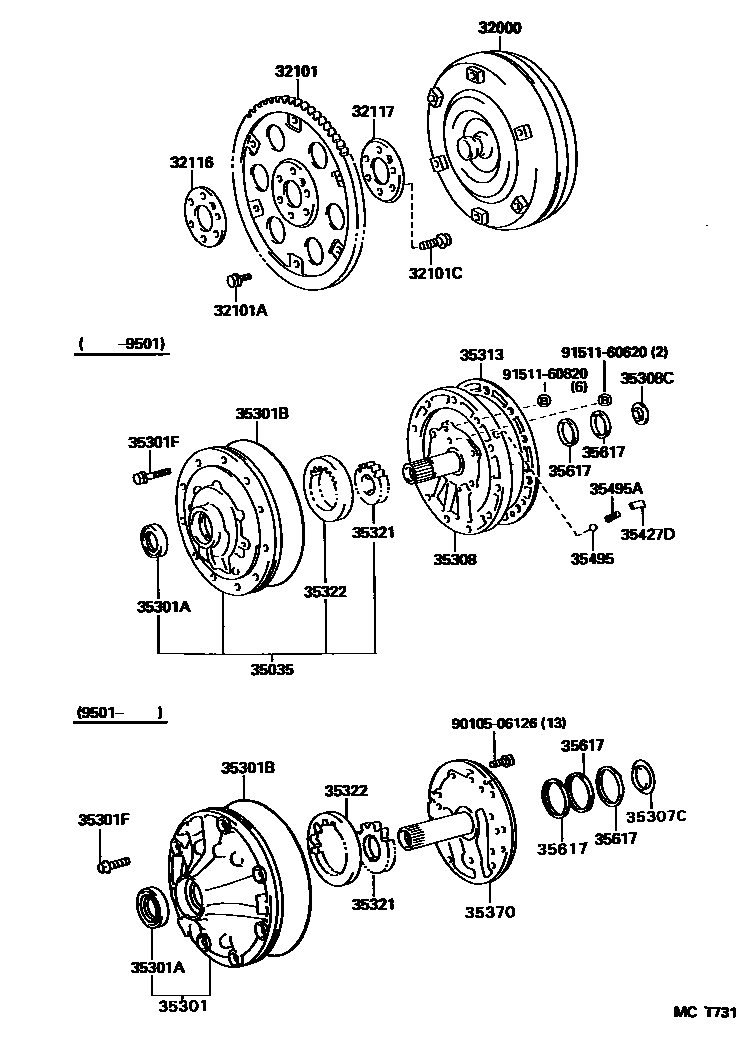

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)
32000CONVERTER ASSY, TORQUE
32101GEAR SUB-ASSY, DRIVE PLATE & RING
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
*8-1.25PX14-10
*8-1.25PX14-9
*10-1.25PX14-9,GREEN
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
35035BODY SUB-ASSY, FR OIL PUMP & GEAR
35301BODY SUB-ASSY, FRONT OIL PUMP
35301BRING, O (FOR FRONT OIL PUMP BODY)
35307CRACE, THRUST BEARING (FOR STATOR SHAFT)
35308COVER SUB-ASSY, FRONT OIL PUMP
35308CRACE, THRUST BEARING (FOR FRONT OIL PUMP COVER)
T=0.8
T=1.0
T=1.4
35321GEAR, FRONT OIL PUMP DRIVE
T=10.690-10.699
T=10.700-10.709
T=10.710-10.720
T=10.721-10.730
T=10.731-10.740
T=18.45-18.48
T=18.43-18.45
35322GEAR, FRONT OIL PUMP DRIVEN
T=10.690-10.699
T=10.700-10.709
T=10.710-10.720
T=10.721-10.730
T=10.731-10.740
T=18.45-18.48
T=18.43-18.45
35370SHAFT ASSY, STATOR
35427DSEAT, CHECK VALVE SPRING
35495BALL, CHECK
35495ASPRING, COMPRESSION (FOR CHECK BALL)
35617RING, CLUTCH DRUM OIL SEAL
9010506126
main90105-06126
9151160620
main91511-60620
9151160820
main91511-60820
25 parts on this diagram · 1 diagram in section
