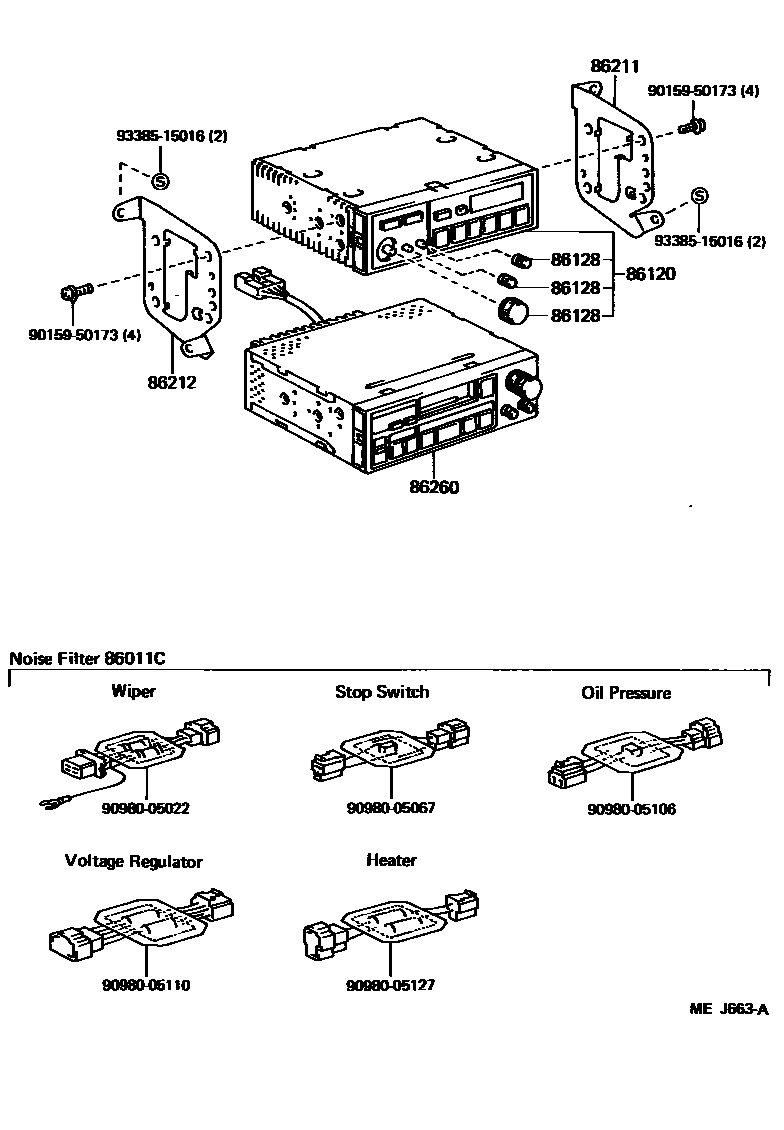

RADIO RECEIVER & AMPLIFIER & CONDENSER
86011CFILTER, NOISE
WIPER
STOP SWITCH
OIL PRESSURE
VOLTAGE REGULATOR
HEATER
86120RECEIVER ASSY, RADIO
AM/FM MPX ETR 1DIN GEN
AM/FM MPX ETR CASSETTE 2DIN
MATSUSHITA,AM/FM MPX ETR 1DIN
AM/FM MPX ETR CASSETTE 2DIN
FUJITSU TEN,AM/FM MPX ETR 1DIN GEN
AM/FM MPX ETR CASSETTE A.F. 2DIN
86128KNOB, RADIO RECEIVER
POW/VOL(RADIO P/NO.86120-32340,86120-32370)
TREB/FADE,BASS/BAL(RADIO P/NO.86120-32340,86120-32370)
PWR/VOL(RADIO P/NO.86120-20680)
FADER,BAL,TREB,BASS(RADIO P/NO.86120-20680)
PWR/VOL(RADIO P/NO.86120-32130,86120-90A18)
TREB/FADE,BASS/BAL(RADIO P/NO.86120-32130,86120-90A18)
PWR/VOL(RADIO P/NO.86120-32390)
TREB/FADE,BASS/BAL(RADIO P/NO.86120-32390)
PWR/VOL(RADIO P/NO.86120-32211)
TREB/FADE,BASS/BAL(RADIO P/NO.86120-32211)
86211BRACKET, RADIO, NO.1
86212BRACKET, RADIO, NO.2
86260TAPE PLAYER ASSY
AM/FM ETR RADIO & W(4SP)
9015950173
main90159-50173
9098005022
main90980-05022
9098005067
main90980-05067
9098005106
main90980-05106
9098005110
main90980-05110
9098005127
main90980-05127
9338515016
main93385-15016
13 parts on this diagram · 2 diagrams in section
