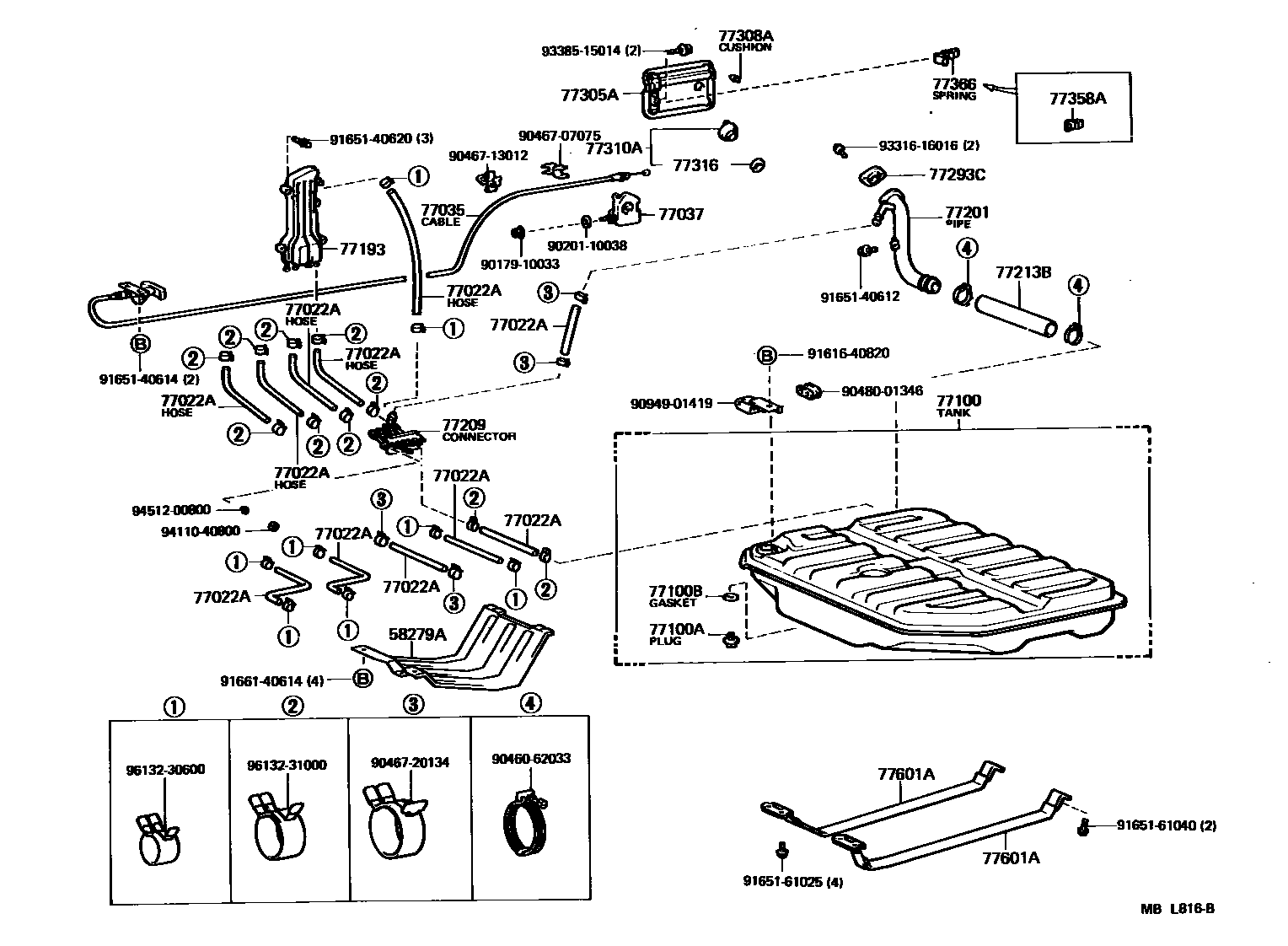

FUEL TANK & TUBE

0001 1 0002 1

58279APROTECTOR, FUEL HOSE

main58279-90A00iFJ62198708-199001

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main77249-60040iFJ62198708-199001

250X312X92

main77249-60050iFJ62198708-199001

265X285X70

main90445-22015iFJ62198708-199001

L=150

sub90445-22002

main90445-22904iFJ62198708-199001

L=300

main95332-10024iFJ62198708-199001

L=300(*H,L=240)

sub95332-10030

main95332-10036iFJ62198708-199001

L=400(*H,L=360)

sub95332-10040

main95333-06040iFJ62198708-199001

L=400

main95333-06060iFJ62198708-199001

L=600

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77030-90A01iFJ62198708-199001

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-90K00iFJ62198708-199001

77100TANK ASSY, FUEL

main77001-60220iFJ62198708-199001

sub77001-60221

77100APLUG(FOR FUEL TANK)

main90105-12018iFJ62198708-199001

77100BGASKET(FOR FUEL TANK)

main90430-12245iFJ62198708-199001

77193VALVE, FUEL LIQUID VAPOR SEPARATOR

main77193-60031iFJ62198708-199001

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-60150iFJ62198708-199001

77209CONNECTOR SUB-ASSY, FUEL TUBE

main77209-60041iFJ62198708-199001

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-60030iFJ62198708-199001

77293CPACKING, FUEL TANK OUTER FILLER PIPE

main77293-60030iFJ62198708-199001

77305ALID SUB-ASSY, FUEL FILLER OPENING

main77305-90A01iFJ62198708-199001

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-08003iFJ62198708-199001

77310ACAP ASSY, FUEL TANK

main77310-12100iFJ62198708-199001

77316GASKET, FUEL TANK CAP

main77316-12050iFJ62198708-199001

77358ASTOPPER, FUEL FILLER OPENING LID

main77358-12020iFJ62198708-199001

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-12010iFJ62198708-199001

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-60060iFJ62198708-199001

RH

main77602-60040iFJ62198708-199001

LH

9017910033

main90179-10033

9020110038

main90201-10038

9046062033

main90460-62033

9046707075

main90467-07075

9046713012

main90467-13012

9046720134

main90467-20134

9048001346

main90480-01346

9094901419

main90949-01419

9161640820

main91616-40820

9165140612

main91651-40612

9165140614

main91651-40614

9165140620

main91651-40620

9165161025

main91651-61025

9165161040

main91651-61040

9166140614

main91661-40614

9331616016

main93316-16016

9338515014

main93385-15014

9411040800

main94110-40800

9451200800

main94512-00800

9613230600

main96132-30600

9613231000

main96132-31000

40 parts on this diagram · 2 diagrams in section
