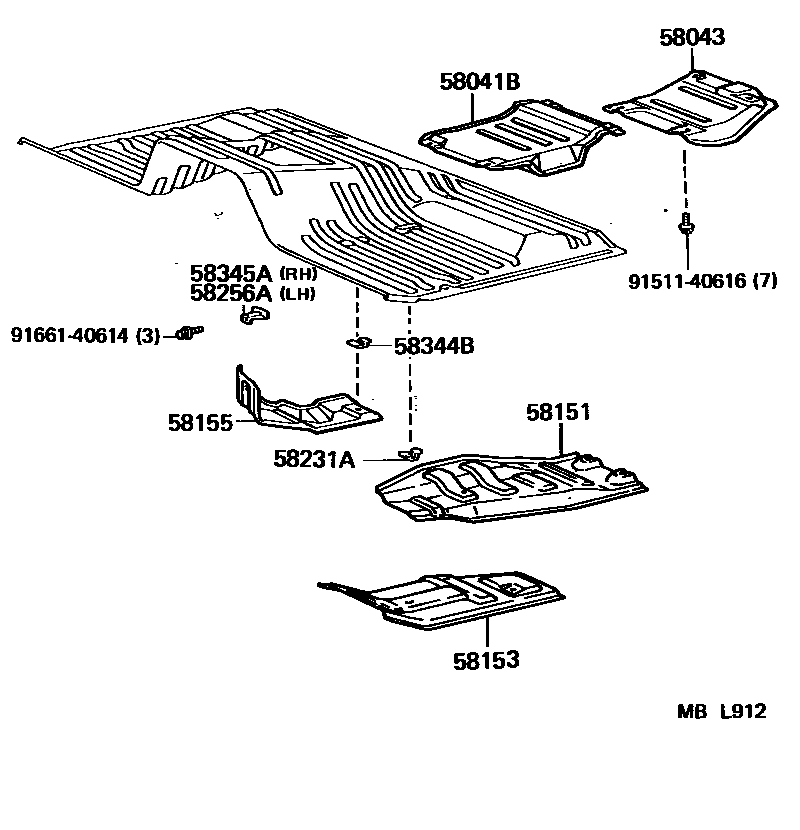

FLOOR INSULATOR
58041BINSULATOR SUB-ASSY, MAIN MUFFLER HEAT, FRONT
58043INSULATOR SUB-ASSY, MAIN MUFFLER HEAT, REAR
58151INSULATOR, FRONT FLOOR HEAT, NO.1
58153INSULATOR, FRONT FLOOR HEAT, NO.2
58155INSULATOR, FRONT FLOOR HEAT, NO.3
58231ABRACKET, CENTER FLOOR HEAT INSULATOR, NO.1
58256ABRACKET, FRONT FLOOR HARNESS
58344BBRACKET, FUEL HOSE PROTECTOR, REAR
58345ABRACKET, REAR FLOOR HEAT INSULATOR, NO.1
9151140616
main91511-40616
9166140614
main91661-40614
11 parts on this diagram · 1 diagram in section
