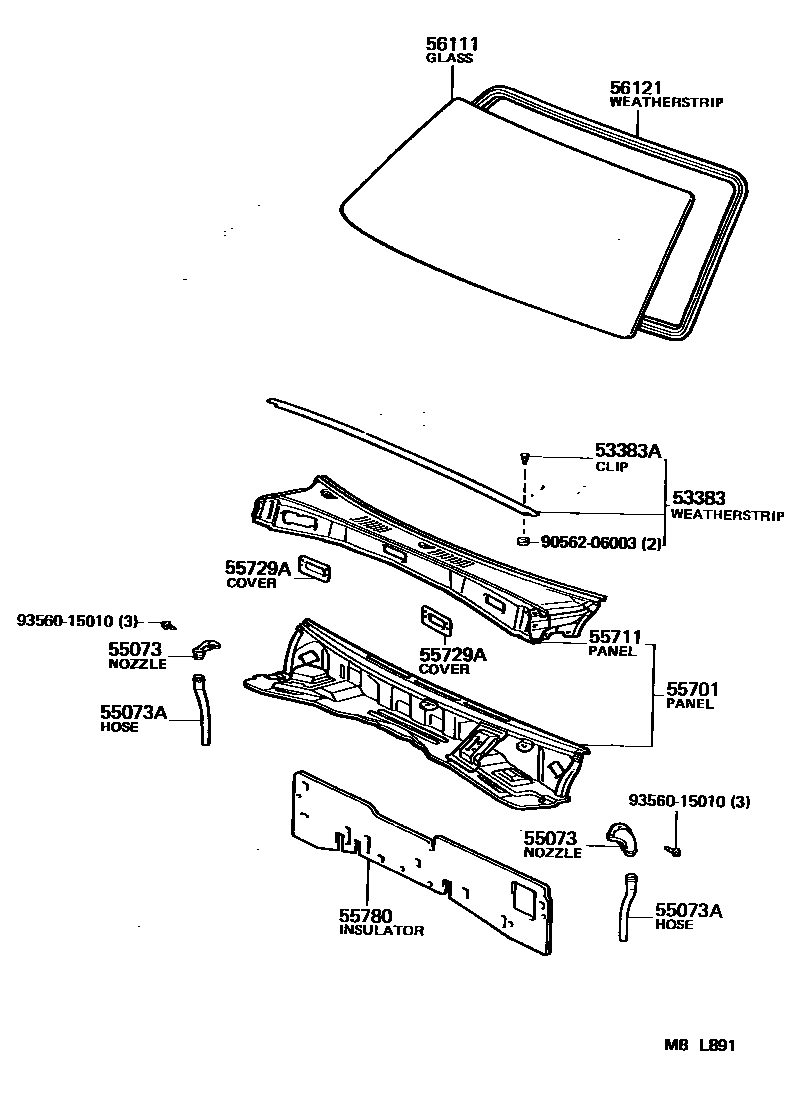

COWL PANEL & WINDSHIELD GLASS

53383SEAL, HOOD TO COWL TOP

main53383-90A00iFJ62198708-199001

53383ACLIP(FOR HOOD TO COWL TOP SEAL)

main90467-08011iFJ62198708-199001

55073NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT

main55073-90A00iFJ62198708-199001

55073AHOSE(FOR EXTRACT NOZZLE)

main90910-04012iFJ62198708-199001

55701PANEL SUB-ASSY, COWL

main55700-90G17iFJ62198708-199001

55711PANEL, COWL TOP, OUTER

main55701-90A35iFJ62198708-199001

55729ACOVER, COWL PANEL HOLE

main55729-90A01iFJ62198708-199001

55780INSULATOR ASSY, COWL TOP

main55780-90A01iFJ62198708-199001

56111GLASS, WINDSHIELD

main56111-90A02iFJ62198708-199001

*TL,T=5.3

56121WEATHERSTRIP, WINDSHIELD

main56121-90A01iFJ62198708-198802

sub56121-90A05

main56121-90A05iFJ62198802-199001

9056206003

main90562-06003

9356015010

main93560-15010

12 parts on this diagram · 1 diagram in section
