HORN

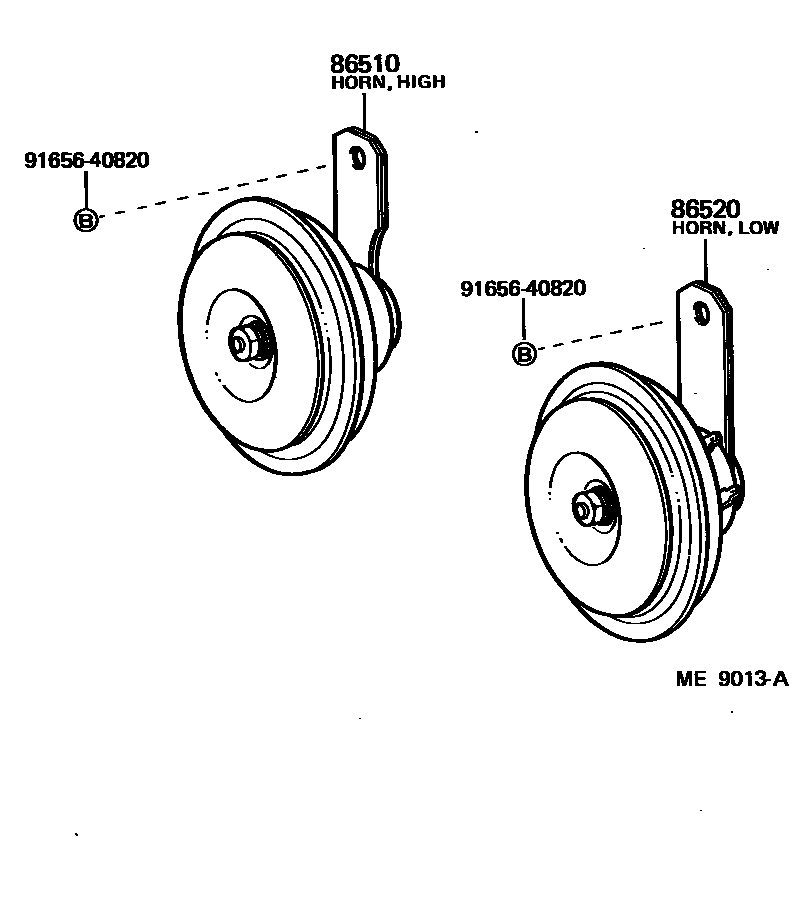

Parts diagram

86510HORN ASSY, HIGH PITCHED

main86510-22120i¥4,460198604-198708

sub86510-14H93¥3,440

main86510-90A01i¥3,970198008-198604

sub86510-22120¥4,460

main86510-90K05i¥3,440198510-198708

sub86510-60H92¥4,970

86520HORN ASSY, LOW PITCHED

main86520-22120i¥4,460198604-198708

sub86520-14H93¥3,440

main86520-90A01i¥3,970198008-198604

sub86520-22120¥4,460

main86520-90K05i¥3,440198510-198708

sub86520-60H92¥4,970

9165640820

main91656-40820¥140

3 parts on this diagram · 1 diagram in section
