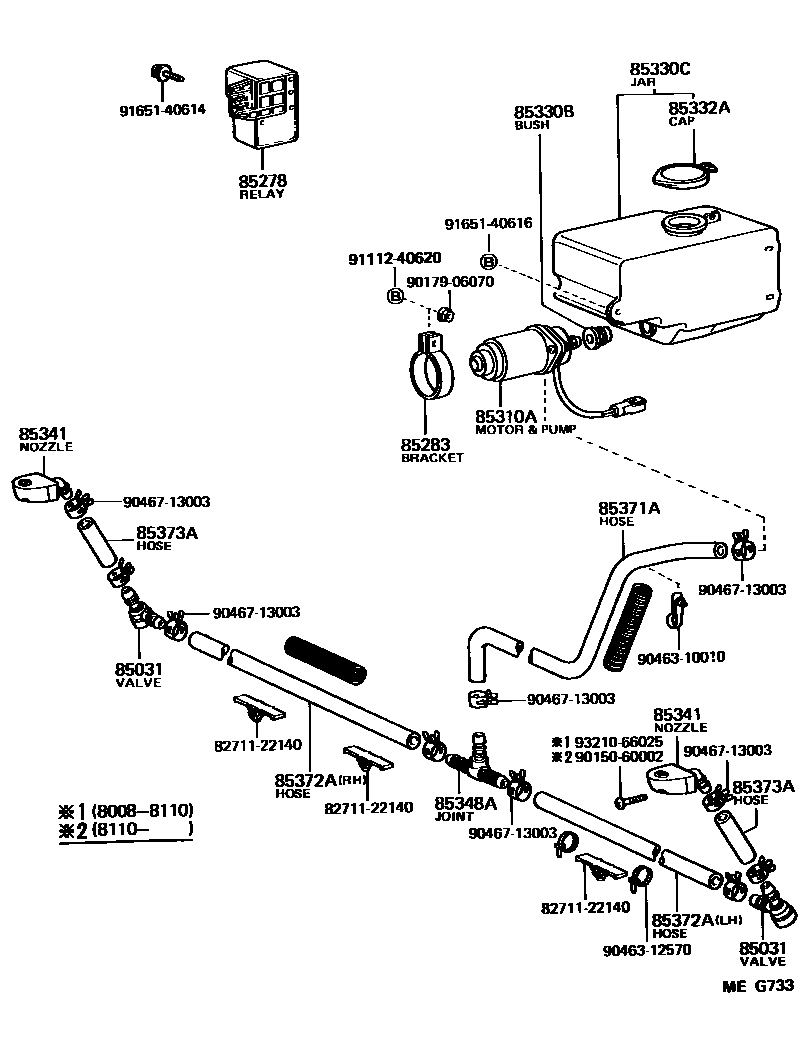

HEADLAMP CLEANER

85031VALVE, HEADLAMP CLEANER WASHER HOSE

main85031-30020iBJ60,FJ60198008-198708

85278RELAY ASSY, HEADLAMP CLEANER CONTROL

main85276-14010iBJ60,FJ60198008-198708

85283BRACKET, HEADLAMP CLEANER WASHER

main85361-10070iBJ60,FJ60198008-198708

85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER

main85310-10090iBJ60,FJ60198008-198504

main85310-22070iFJ60198504-198708

85330BBUSH, HEADLAMP CLEANER WASHER JAR

main85336-10010iBJ60,FJ60198008-198708

85330CJAR ASSY, HEADLAMP CLEANER WASHER

main85330-90A04iBJ60,FJ60198008-198708

85332ACAP, HEADLAMP CLEANER WASHER JAR

main85332-90A00iBJ60,FJ60198008-198708

85341NOZZLE, HEADLAMP CLEANER WASHER

main85035-90A00iBJ60,FJ60198008-198708

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

main85352-12010iBJ60,FJ60198008-198708

85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)

main85271-90A00iBJ60,FJ60198008-198708

85372AHOSE, HEADLAMP CLEANER (FROM JOINT TO JOINT OR NOZZLE)

main90445-14072iBJ60,FJ60198008-198708

L=1450(*H,L=815),RH

main95375-22061iFJ60198008-198708

L=1000(*H,L=410),LH

85373AHOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)

main90445-14055iFJ60198008-198708

L=60

sub85375-50020

8271122140WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22140

9015060002

main90150-60002

9017906070

main90179-06070

9046310010

main90463-10010

9046312570

main90463-12570

9046713003

main90467-13003

9111240620

main91112-40620

9165140614

main91651-40614

9165140616

main91651-40616

9321066025

main93210-66025

22 parts on this diagram · 1 diagram in section
