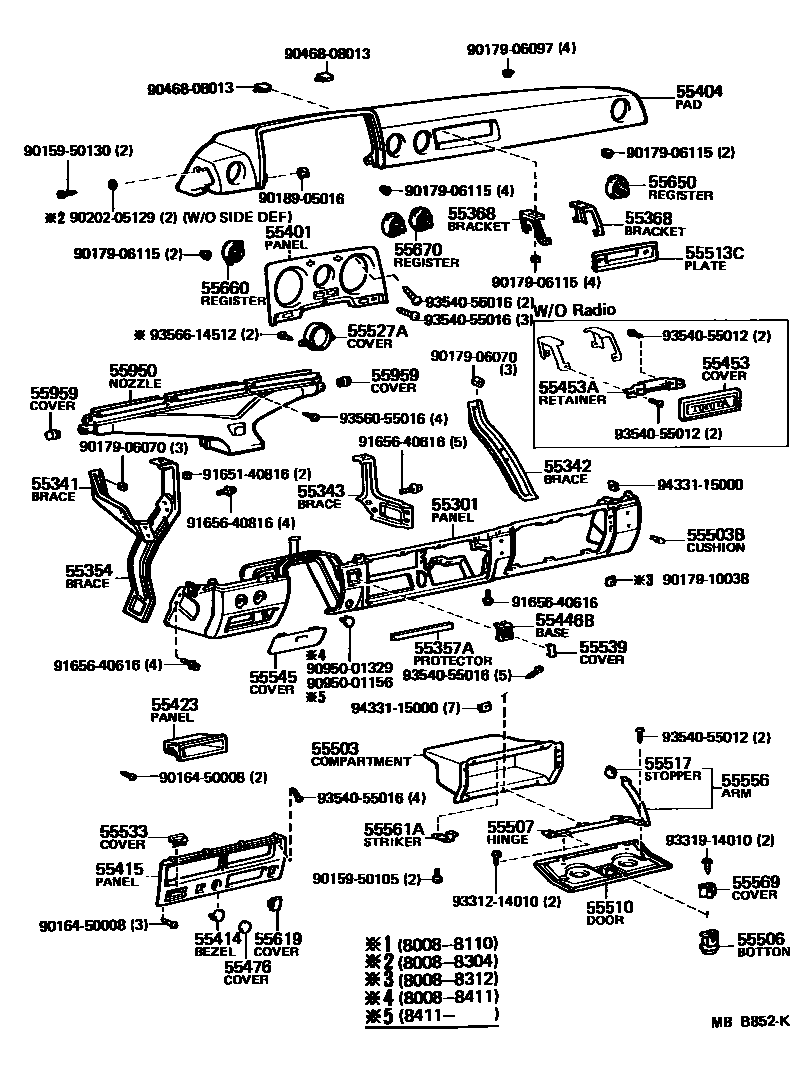

INSTRUMENT PANEL & GLOVE COMPARTMENT

55301PANEL SUB-ASSY, INSTRUMENT

main55301-90A09iBJ60,FJ60198008-198210

main55301-90A35-03iBJ60,FJ60198210-198504

GRAY,GRAY

sub55301-90A55

sub55446-90A01

sub55524-90A00

sub55539-32010

main55301-90A35-05iBJ60,FJ60198210-198504

BEIGE,BEIGE

sub55301-90A55

sub55446-90A01

sub55524-90A00

sub55539-32010

main55301-90A51-03iBJ60198411-198510

GRAY,GRAY

main55301-90A51-05iBJ60198411-198510

BEIGE,BEIGE

main55301-90A55-03iFJ60198504-198708

GRAY,GRAY

main55301-90A55-05iFJ60198504-198708

BEIGE,BEIGE

main55301-90A63-03iHJ60198510-198708

GRAY,GRAY

main55301-90A63-05iHJ60198510-198708

BEIGE,BEIGE

55341BRACE, INSTRUMENT PANEL, NO.1

main55341-90A02iBJ60,FJ60198008-198708

main55341-90A03iHJ60198510-198708

55342BRACE, INSTRUMENT PANEL, NO.2

main55342-90A01iBJ60,FJ60,HJ60198008-198708

55343BRACE, INSTRUMENT PANEL, NO.3

main55344-90A01iBJ60,FJ60,HJ60198008-198708

55354BRACE, INSTRUMENT PANEL TO FLOOR

main55351-90A01iBJ60,FJ60198008-198708

sub55351-90A03

main55351-90A03iHJ60198510-198708

55357APROTECTOR, EDGE, NO.1

main55357-90A00iBJ60,FJ60,HJ60198008-198708

55368BRACKET, RADIO TUNER MOUNTING

main55366-90A00iBJ60,FJ60,HJ60198008-198708

RH

main55368-90A00iBJ60,FJ60,HJ60198008-198708

LH

55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH

main55410-90A01iFJ60198008-198210

main55410-90A04iBJ60198008-198210

main55410-90A29-03iFJ60198210-198708

DARK GRAY-M,DARK GRAY METALLIC

main55410-90A39iBJ60198210-198411

main55410-90A60-03iBJ60198411-198510

DARK GRAY-M,DARK GRAY METALLIC

main55410-90G05-03iHJ60198510-198708

DARK GRAY-M,DARK GRAY METALLIC

main55410-90G13-03iHJ60198608-198708

W/DIFF LOCK,DARK GRAY-M,DARK GRAY METALLIC

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-90A02-03iFJ60198210-198708

W/O SIDE DEFROSTER,SHADOW GRAY,GRAY

sub55401-90A02

main55401-90A02-06iFJ60..USA198008-198504

W/O SIDE DEFROSTER,DARK BROWN,BROWN

sub55401-90A02

main55401-90A02-16iFJ60198504-198708

W/O SIDE DEFROSTER,SEPIA BROWN,SEPIA BROWN

sub55401-90A02

main55401-90A03-03iBJ60,FJ60,HJ60198210-198708

W/SIDE DEFROSTER,SHADOW GRAY,GRAY

sub55401-90A03

sub55401-90A02

main55401-90A03-06iFJ60198008-198504

W/SIDE DEFROSTER,DARK BROWN,BROWN

sub55401-90A03

sub55401-90A02

main55401-90A03-16iBJ60,FJ60,HJ60198411-198708

W/SIDE DEFROSTER,SEPIA BROWN,SEPIA BROWN

sub55401-90A03

sub55401-90A02

55414BEZEL, CIGAR LIGHTER HOLE

main55477-90A00iBJ60,FJ60198008-198708

main55477-90A01iHJ60198510-198708

55415PANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55412-90A01-03iFJ60198210-198504

GRAY,GRAY

sub55412-90A01

main55412-90A01-05iBJ60,FJ60198008-198708

BEIGE,BEIGE

sub55412-90A01

main55412-90A01-13iFJ60198504-198708

GRAY,GRAY

sub55412-90A01

main55412-90A02-05iBJ60,HJ60198411-198708

BEIGE,BEIGE

sub55412-90A02

main55412-90A02-13iBJ60,HJ60198411-198708

GRAY,GRAY

sub55412-90A02

55423PANEL, STEREO PLAYER FINISH

main55521-90A00iBJ60,FJ60,HJ60198008-198708

55446BSPACER, INSTRUMENT PANEL SAFETY PAD, SET

main55446-90A01-03iBJ60198411-198708

GRAY,GRAY

sub55446-90A01

main55446-90A01-05iBJ60198411-198708

BEIGE,BEIGE

sub55446-90A01

main55446-90A02-03iBJ60,HJ60198411-198708

W/FD SW,GRAY,GRAY

sub55446-90A02

main55446-90A02-05iBJ60,HJ60198411-198708

W/FD SW,BEIGE,BEIGE

sub55446-90A02

55453COVER, RADIO TUNER OPENING

main55522-90A00iFJ60198008-198708

55453ARETAINER, RADIO TUNER OPENING, NO.1

main55417-90A00iBJ60,FJ60198008-198708

55476COVER, CIGARETTE LIGHTER HOLE

main55477-10010-01iBJ60,FJ60198008-198110

BLACK

sub55477-10010

55503COMPARTMENT SUB-ASSY, GLOVE

main55581-90A02iBJ60,FJ60,HJ60198008-198708

sub55581-90A05

55503BCUSHION(FOR GLOVE COMPARTMENT)

main90541-03015iBJ60,FJ60,HJ60198008-198708

55506BUTTON SUB-ASSY, GLOVE COMPARTMENT DOOR LOCK

main55560-12020iBJ60,FJ60198008-198708

55507HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR

main55505-90A00iBJ60,FJ60,HJ60198008-198708

55510DOOR ASSY, GLOVE COMPARTMENT

main55501-90A00-03iBJ60,FJ60198210-198504

GRAY,GRAY

sub55501-90A00

main55501-90A00-05iBJ60,FJ60,HJ60198008-198708

BEIGE,BEIGE

sub55501-90A00

main55501-90A00-13iBJ60198411-198708

GRAY,GRAY

sub55501-90A00

55513CPLATE, RADIO TUNER FINISH

main55513-90A00iBJ60,FJ60,HJ60198008-198708

55517STOPPER, GLOVE COMPARTMENT DOOR ARM

main55517-14010iBJ60,FJ60,HJ60198008-198708

55527ACOVER, METER OPENING

main55527-90A00iBJ60,FJ60..CND198008-198110

55533COVER, AUTO CLOCK HOLE

main55533-90A00iBJ60,HJ60198411-198708

55539COVER, SPARE SWITCH HOLE

main55539-32010-01iBJ60,FJ60,HJ60..MTM198411-198708

BLACK

sub55539-32010

sub55539-32030

55545COVER, FUSE BOX OPENING

main55545-90A00-03iBJ60,FJ60198210-198504

GRAY,GRAY

sub55545-90A00

sub55545-90A01

main55545-90A00-05iBJ60,FJ60,HJ60198008-198708

BEIGE,BEIGE

sub55545-90A00

sub55545-90A01

main55545-90A00-13iBJ60198411-198708

GRAY,GRAY

sub55545-90A00

sub55545-90A01

55556ARM, GLOVE COMPARTMENT DOOR CHECK

main55556-90A01iBJ60,FJ60,HJ60198008-198708

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-90A00iBJ60,FJ60,HJ60198008-198708

55569COVER, GLOVE COMPARTMENT DOOR LOCK

main55569-90A00-03iFJ60198210-198504

GRAY,GRAY

sub55569-90A00

main55569-90A00-05iBJ60,FJ60,HJ60198008-198708

BEIGE,BEIGE

sub55569-90A00

main55569-90A00-13iBJ60198411-198708

GRAY,GRAY

sub55569-90A00

55619COVER, SWITCH HOLE

main55524-90A00iBJ60,FJ60,HJ60198008-198708

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-90A00iBJ60,FJ60,HJ60198008-198708

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55650-90A00iBJ60,FJ60,HJ60198008-198708

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-90A00iBJ60,FJ60,HJ60198008-198708

sub55650-90A00

55950NOZZLE ASSY, DEFROSTER

main55950-90A01iBJ60,FJ60,HJ60198008-198708

sub55950-90A03

55959COVER, DEFROSTER NOZZLE OPENING, NO.1

main55959-14010iFJ60..USA198008-198708

9015950105

main90159-50105

9015950130

main90159-50130

9016450008

main90164-50008

9017906070

main90179-06070

9017906097

main90179-06097

9017906115

main90179-06115

9017910038

main90179-10038

9018905016

main90189-05016

9020205129

main90202-05129

9046808013

main90468-08013

9095001156

main90950-01156

9095001329

main90950-01329

9165140816

main91651-40816

9165640616

main91656-40616

9165640816

main91656-40816

9331214010

main93312-14010

9331914010

main93319-14010

9354055012

main93540-55012

9354055016

main93540-55016

9356055016

main93560-55016

9356614512

main93566-14512

9433115000

main94331-15000

58 parts on this diagram · 1 diagram in section
