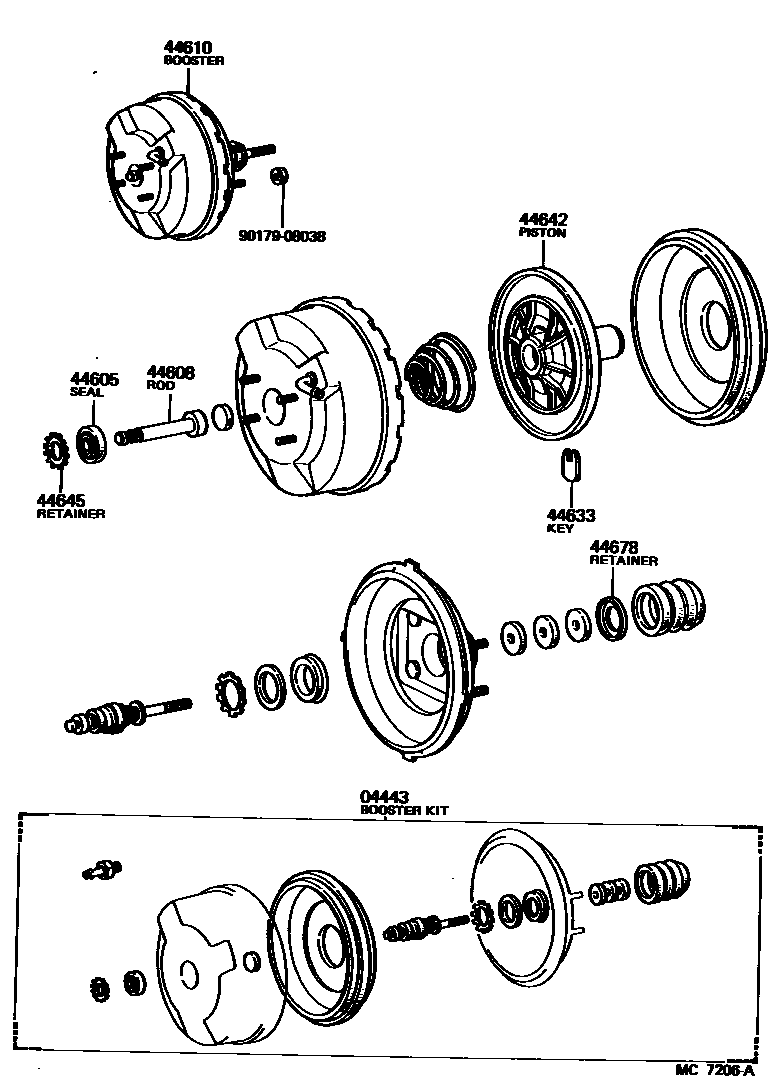

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

04443BOOSTER KIT, BRAKE

main04443-60080iFJ60198008-198504

main04443-60110iBJ60198008-198411

main04443-60240iBJ60198411-198510

main04443-60241iHJ60198510-198708

main04443-60270iFJ60198504-198603

main04443-60271iFJ60198603-198708

44605PLATE & SEAL SUB-ASSY, BOOSTER

main44605-22021iBJ60198008-198510

sub44605-10080

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-12520iBJ60,HJ60198411-198708

main44608-22090iBJ60198008-198411

main44608-30350iFJ60198008-198708

44610BOOSTER ASSY, BRAKE

main44610-60100iFJ60198008-198504

main44610-60150iBJ60198008-198301

main44610-60151iBJ60198301-198411

main44610-60400iBJ60198411-198510

main44610-60421iHJ60198510-198708

main44610-60440iFJ60198504-198603

sub44610-60441

main44610-60441iFJ60198603-198708

44633KEY, BOOSTER VALVE PLUNGER

main44633-22020iBJ60198008-198510

main44633-30350iFJ60198008-198708

44642PISTON, BRAKE BOOSTER

main44642-25080iBJ60198008-198411

main44642-60280iBJ60,HJ60198411-198708

44645RETAINER, BOOSTER PUSH ROD SEAL

main44645-22020iBJ60198008-198510

44678RETAINER, BOOSTER AIR CLEANER

main44678-22020iBJ60,FJ60198008-198708

9017908038

main90179-08038

9 parts on this diagram · 6 diagrams in section
