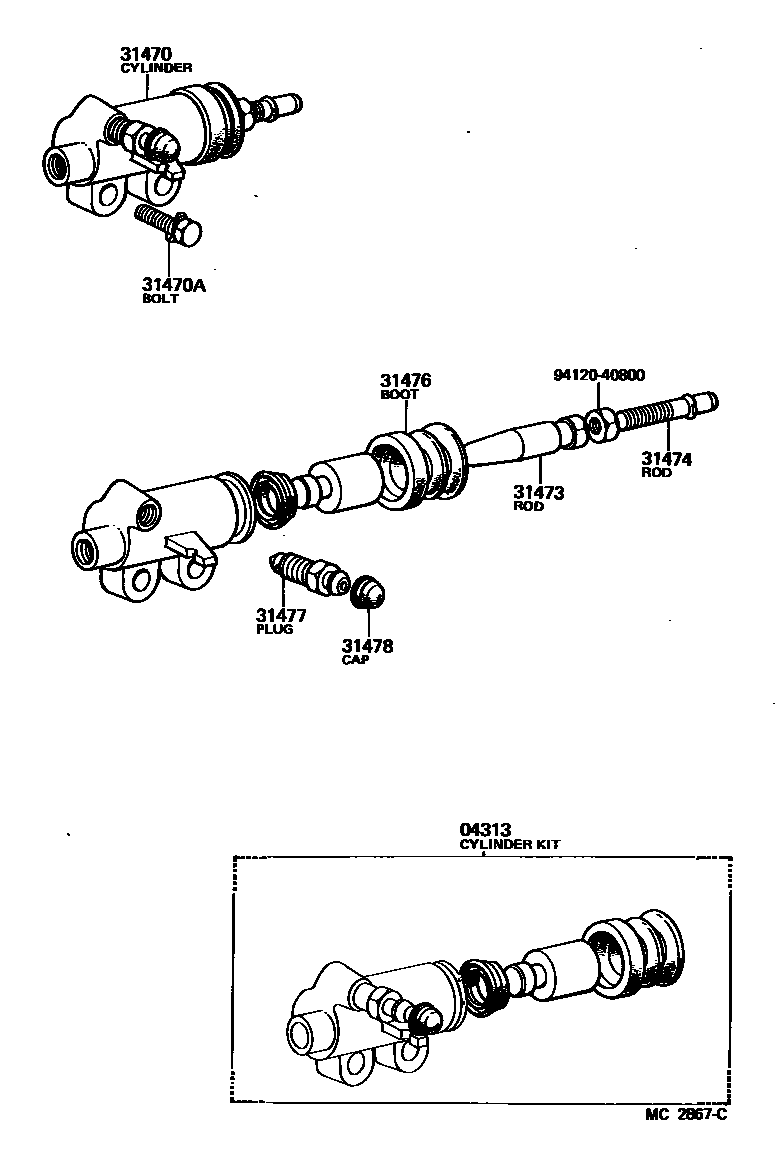

CLUTCH RELEASE CYLINDER

0001 1 0002 1 0003 1 0004 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-40021iBJ60198008-198110

main04313-60020iFJ60198008-198504

main04313-60040iBJ60198110-198411

main04313-60050iFJ60,HJ60..MTM198504-198708

main04313-60060iBJ60198411-198510

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-60050iBJ60198008-198110

main31470-60081iFJ60198008-198504

main31470-60100iFJ60,HJ60..MTM198504-198612

sub31470-60101

sub91611-41045

main31470-60101iFJ60,HJ60..MTM198612-198708

sub31470-60102

main31470-60110iBJ60198110-198411

main31470-60120iBJ60198411-198510

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-41045iFJ60,HJ60..MTM198612-198708

main91611-60828iBJ60198008-198510

*8-1.25PX28-28

main91611-61055iFJ60,HJ60..MTM198008-198612

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-30020iBJ60198008-198110

main31473-60061iFJ60198008-198504

main31473-60080iFJ60,HJ60..MTM198504-198708

main31473-60090iBJ60198110-198411

main31473-60100iBJ60198411-198510

31474ROD, CLUTCH RELEASE CYLINDER PUSH, NO.2

main31474-30020iBJ60198008-198411

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-36010iFJ60,HJ60..MTM198504-198708

main31476-40010iBJ60198008-198110

main31476-60031iFJ60198008-198504

main31476-60050iBJ60198411-198510

main31476-60060iBJ60198110-198411

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iBJ60,FJ60,HJ60..MTM198008-198708

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iBJ60,FJ60,HJ60..MTM198008-198708

9412040800

main94120-40800

9 parts on this diagram · 4 diagrams in section
