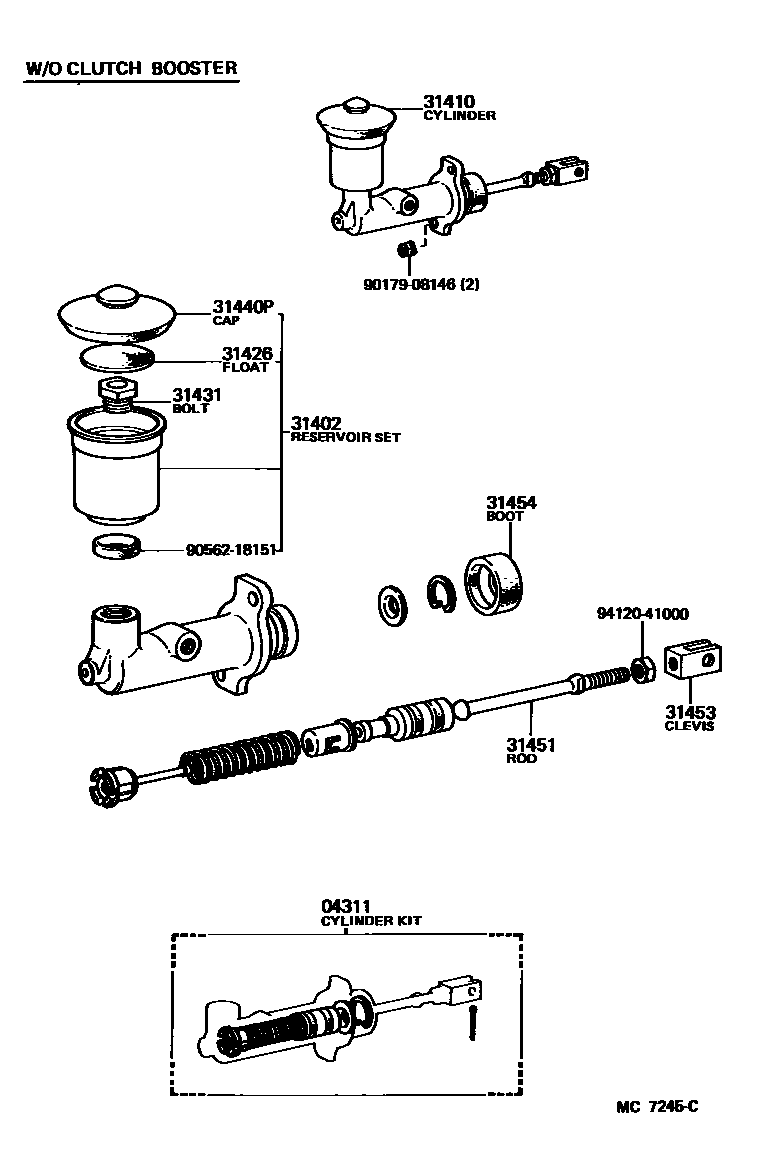

CLUTCH MASTER CYLINDER

0001 1 0003 1 0006 1 0007 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-60030iFJ60198008-198504

sub04311-60031

main04311-60040iBJ60,HJ60..5F198301-198704

W/CLUTCH BOOSTER

sub04311-60041

main04311-60041iHJ60..5F198704-198708

W/CLUTCH BOOSTER

sub04311-60042

main04311-60050iBJ60,FJ60,HJ60..MTM198411-198708

sub04311-60051

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-20010iBJ60,HJ60..5F198301-198708

W/CLUTCH BOOSTER

main31402-30030iBJ60198411-198708

main31402-35010iBJ60,FJ60198008-198504

sub31402-20010

31410CYLINDER ASSY, CLUTCH MASTER

main31401-60010iBJ60198301-198411

W/CLUTCH BOOSTER

sub31401-60020

main31401-60020iBJ60,HJ60..5F198411-198704

W/CLUTCH BOOSTER

sub31401-60021

main31401-60021iHJ60..5F198704-198708

W/CLUTCH BOOSTER

sub31401-60022

main31410-60060iBJ60,FJ60198008-198504

sub31410-60061

main31410-60280iBJ60,FJ60,HJ60..MTM198411-198708

sub31410-60281

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-20010iBJ60,FJ60198008-198504

main31426-30011iBJ60,FJ60,HJ60..MTM198411-198708

main31426-30011iBJ60198301-198411

W/CLUTCH BOOSTER

31431BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-20010iFJ60198008-198504

main47231-20010iBJ60,HJ60..5F198411-198708

W/CLUTCH BOOSTER

main47231-30010iBJ60198411-198708

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main31440-35010iBJ60,FJ60198008-198504

sub47230-20040

main47230-20040iBJ60198301-198411

W/CLUTCH BOOSTER

main47230-20040iBJ60198411-198708

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-30030iFJ60198008-198504

main31451-60050iBJ60198411-198708

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31453-22010iBJ60,FJ60,HJ60..MTM198411-198611

sub31453-35010

main31453-30011iFJ60198008-198504

main31453-35010iFJ60,HJ60..MTM198611-198708

31454BOOT, CLUTCH MASTER CYLINDER

main31454-30030iBJ60,FJ60,HJ60..MTM198008-198708

main47265-20050iBJ60,HJ60..5F198301-198708

W/CLUTCH BOOSTER

9017908146

main90179-08146

9056218151

main90562-18151

9412041000

main94120-41000

12 parts on this diagram · 4 diagrams in section
