WATER PUMP

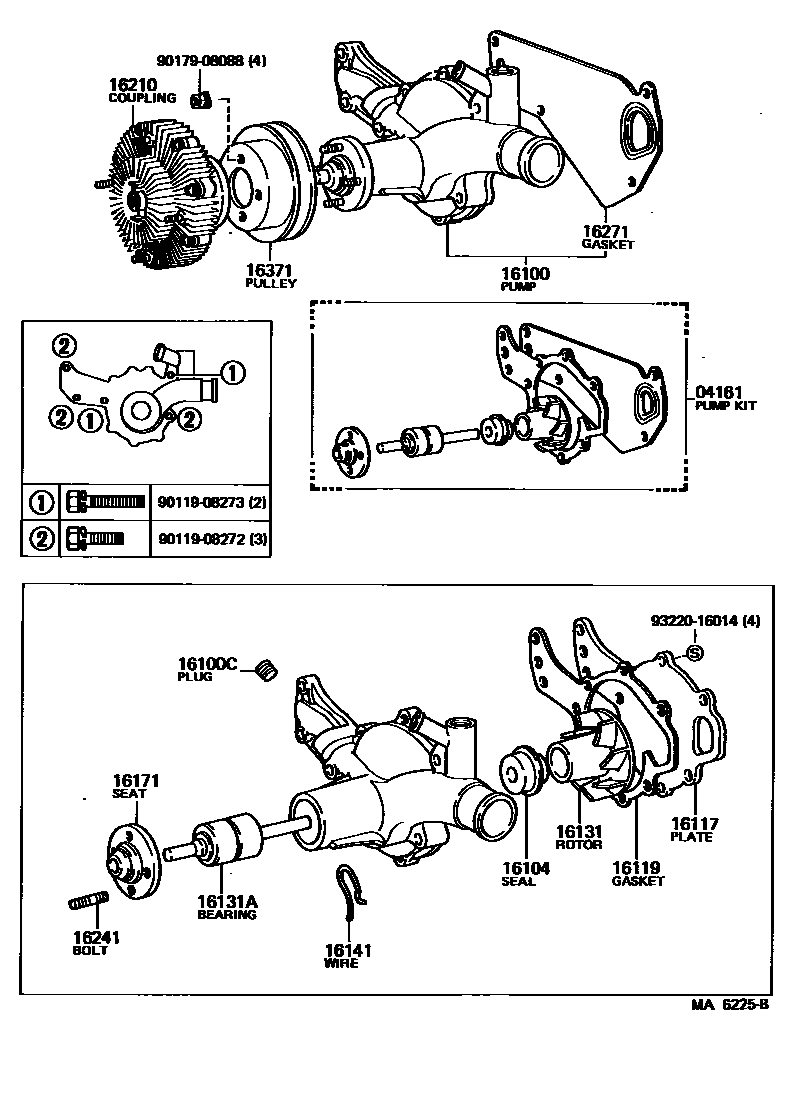

Parts diagram

04161PUMP KIT, WATER

main04161-56080i198008-198510

main04161-68010i198510-198708

16100PUMP ASSY, ENGINE WATER

main16100-59105i198008-198510

main16100-61071i198008-198110

main16100-61130i198008-198708

main16100-69035i198510-198708

16100CPLUG, W/HEAD TAPER SCREW

main15184-15010i198008-198510

16104SEAL SET, WATER PUMP

main16104-15020i198510-198708

main16104-52011i198411-198507

main16104-52012i198008-198411

main16104-52013i198507-198510

16117PLATE, WATER PUMP

main16117-56040i198008-198510

main16117-61012i198008-198708

16119GASKET, WATER PUMP BODY

main16119-56040i198008-198510

16131ROTOR, WATER PUMP

main16131-56040i198008-198510

main16131-68010i198510-198708

16131ABEARING, WATER PUMP

main90369-35016i198510-198708

main90369-38001i198008-198510

16141WIRE, WATER PUMP BEARING RETAINING

main16141-68010i198510-198708

main16141-76010i198008-198510

16171SEAT, WATER PUMP PULLEY

main16171-41170i198510-198708

main16171-61071i198008-198708

16210COUPLING ASSY, FLUID

main16210-58011i198008-198307

main16210-58012i198307-198510

main16210-61071i198008-198110

main16210-61120i198008-198708

main16210-68021i198510-198708

16241BOLT, STUD(FOR WATER PUMP COUPLING)

main16198-41050i198008-198708

main16198-41170i198008-198510

main90116-08112i198510-198708

16271GASKET, WATER PUMP

main16271-56020i198008-198510

main16271-60011i198008-198708

main16271-68010i198510-198708

16371PULLEY, FAN

main16173-61070i198008-198708

main16371-56040i198008-198510

main16371-68040i198510-198708

NO.1

main88452-60011i198510-198708

W/COOLER,NO.2

9011908272

main90119-08272

9011908273

main90119-08273

9017908088

main90179-08088

9322016014

main93220-16014
