ENGINE OVERHAUL GASKET KIT

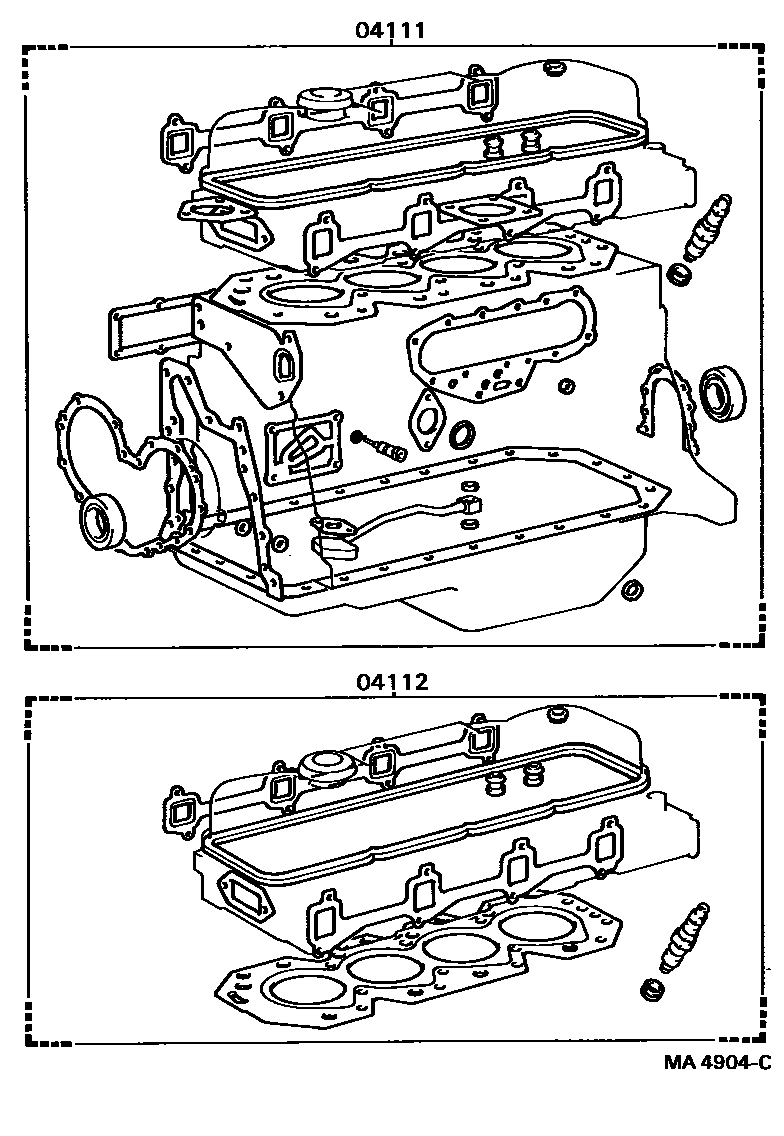

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-58011i198008-198105
main04111-58012i198105-198308
main04111-58013i198308-198408
sub04111-58015
main04111-58050i198408-198510
sub04111-58051
main04111-61040i198008-198410
sub04111-61042
main04111-61041i198410-198412
sub04111-61043
main04111-61060i198412-198708
sub04111-61061
main04111-68020i198510-198708
sub04111-68021
04112GASKET KIT, ENGINE VALVE GRIND
main04112-58010i198008-198308
main04112-58011i198308-198408
sub04112-58013
main04112-58040i198408-198510
sub04112-58041
main04112-61040i198008-198708
sub04112-61041
main04112-68020i198510-198708
sub04112-68021

2 parts on this diagram · 3 diagrams in section
