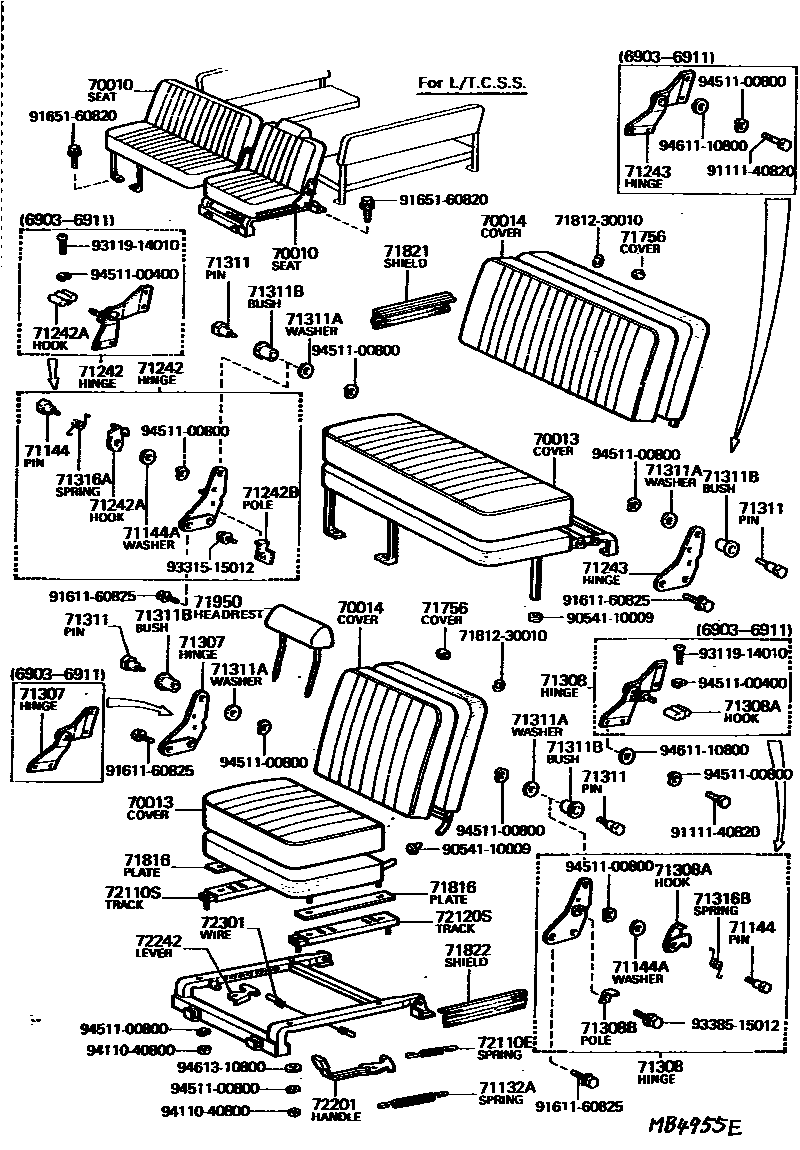

SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

70010SEAT ASSY, NO.1

main71100-60051-02iFJ40196903-196908

DRIVER SIDE,RED/MAROON

sub71100-60051

sub71100-60052

main71100-60052-02iFJ40196908-196911

DRIVER SIDE,RED/MAROON

sub71100-60053

main71100-60053iFJ40196911-197209

DRIVER SIDE

main71100-90353iFJ55196903-196910

PF.

main71100-90364iFJ55196910-197209

PF.

main71100-90365iFJ55197209-197509

PF.

main71200-60032-02iFJ40196903-196908

ASSISTANT SIDE,RED/MAROON

sub71200-60032

sub71200-60033

main71200-60033-02iFJ40196908-196911

ASSISTANT SIDE,RED/MAROON

sub71200-60034

main71200-60034iFJ40196911-197105

ASSISTANT SIDE,L/T.C.S.S.

main71200-60035iFJ40197105-197109

ASSISTANT SIDE,L/T.C.S.S.

main71200-60060iFJ40197002-197105

ASSISTANT SIDE,W/T.C.S.S.

main71200-60061iFJ40197105-197109

ASSISTANT SIDE,W/T.C.S.S.

main71200-90313iFJ40197109-197209

ASSISTANT SIDE,W/T.C.S.S.

70013COVER ASSY, NO.1 SEAT CUSHION

main71071-60020-02iFJ40196903-197209

DRIVER SIDE,RED/MAROON

main71071-90304iFJ45197606-197703

DRIVER SIDE

sub71071-90341

main71071-90341iFJ45197703-197901

DRIVER SIDE

main71071-90345iFJ45197901-198007

DRIVER SIDE

main71071-90353iFJ55196903-196910

main71071-90361iFJ55196910-197209

main71071-90362iFJ55197209-197509

main71071-90364iFJ55197509-197703

sub71071-90367

main71071-90367iFJ55197703-197707

sub71071-90370

main71071-90370iFJ55197707-197901

main71071-90375iFJ55197901-198007

main71072-60020-02iFJ40196903-197109

ASSISTANT SIDE,L/T.C.S.S.,RED/MAROON

main71072-90300iFJ40197002-197209

ASSISTANT SIDE, W/T.C.S.S.

main71072-90320iFJ45197606-197703

ASSISTANT SIDE

sub71072-90340

main71072-90340iFJ45197703-197901

ASSISTANT SIDE

main71072-90345iFJ45197901-198007

ASSISTANT SIDE

70014COVER ASSY, NO.1 SEATBACK

main71073-60010-02iFJ40196903-196908

DRIVER SIDE,RED/MAROON

main71073-90073iFJ45197703-197901

DRIVER SIDE

main71073-90081iFJ45197901-198007

DRIVER SIDE

main71073-90300-02iFJ40196908-197209

DRIVER SIDE,RED/MAROON

main71073-90306iFJ40197002-197209

ASSISTANT SIDE,RH,W/T.C.S.S.

main71073-90307iFJ40197002-197209

ASSISTANT SIDE,LH,W/T.C.S.S.

main71073-90312iFJ45197606-197703

DRIVER SIDE

sub71073-90073

main71073-90353iFJ55196903-196910

main71073-90354iFJ55196910-197209

main71073-90355iFJ55197209-197509

main71073-90358iFJ55197509-197703

sub71073-90361

main71073-90361iFJ55197703-197901

main71073-90369iFJ55197901-198007

main71074-60010-02iFJ40196903-196908

ASSISTANT SIDE,RED/MAROON

main71074-90081iFJ45197901-198007

ASSISTANT SIDE

sub71073-90815

main71074-90309iFJ40196908-197109

ASSISTANT SIDE,L/T.C.S.S.

main71074-90315iFJ45197606-197703

ASSISTANT SIDE

sub71074-90319

main71074-90319iFJ45197703-197901

ASSISTANT SIDE

71132BRACKET, FRONT SEAT SET, OUTER LH

main71134-90321iBJ40,FJ40197209-197901

71132ASPRING, TENSION (FOR SEAT TRACK)

main90506-18010iFJ40196903-197008

main90506-18330iFJ40197008-197803

main90506-20183iFJ55196903-197608

71144PIN, SEAT HINGE HOOK

main71144-90301iFJ40196911-197209

main71312-90300iFJ45197606-197901

71144AWASHER, PLATE (FOR SEAT HINGE HOOK PIN)

main71316-90321iFJ45197606-197901

main90202-16085iFJ40197006-197209

71242HINGE, PASSENGER SEATBACK, RH

main71160-90311iFJ40196911-197209

sub71160-90312

main71160-90312iFJ45197606-197901

main71180-90310iFJ40196903-196911

71242AHOOK, PASSENGER SEAT HINGE, RH

main71142-90304iFJ45197606-197901

main71304-90300iFJ40196911-197209

main71316-90310iFJ40196903-196911

71242BPOLE, PASSENGER SEAT HINGE HOOK, RH

main71147-90301iFJ45196911-197901

71243HINGE, PASSENGER SEATBACK, LH

main71307-90301iFJ40196911-197209

sub71159-90301

main71307-90302iFJ45197606-197901

sub71159-90301

main71309-90333iFJ40196903-196911

71307HINGE SUB-ASSY, DRIVER SEAT, RH

main71306-90333iFJ40196903-196911

main71308-90301iFJ40196911-197209

sub71157-90303

main71308-90302iFJ45197606-197901

sub71157-90303

71308HINGE SUB-ASSY, DRIVER SEAT, LH

main71170-90310iFJ40196903-196911

main71190-90311iFJ40196911-197209

sub71190-90312

main71190-90312iFJ45197606-197901

71308AHOOK, DRIVER SEAT HINGE, LH

main71143-90304iFJ45197606-197901

main71305-90300iFJ40196911-197209

main71316-90310iFJ40196903-196911

71308BPOLE, DRIVER SEAT HINGE HOOK, LH

main71148-90301iFJ40196911-197901

71311PIN, FRONT SEAT HINGE

main71311-90300iFJ40196911-197209

BENCH SEAT

main71311-90300iFJ45197606-197901

main71311-90325iBJ40,FJ40197209-197901

SEPARATE SEAT,OUTER

main71312-90325iBJ40,FJ40197209-197901

SEPARATE SEAT,INNER

main71321-90300iFJ40197002-197209

CENTER HINGE

71311AWASHER, PLATE (FOR FRONT SEAT HINGE PIN)

main90074-30002iFJ40196911-197006

sub90202-16084

main90202-16084iFJ45197006-197901

71311BBUSH (FOR FRONT SEAT HINGE PIN)

main90074-69001iFJ40196911-197006

sub90386-12136

main90386-12136iFJ40197006-197901

71316ASPRING, TORSION, NO.1

main71314-90321iFJ45197606-197901

main90508-18234iFJ40196911-197209

71316BSPRING, TORSION, NO.2

main71315-90321iFJ45197606-197901

main90508-18235iFJ40196911-197209

71756COVER, AIR HOLE

main71756-30020-01iFJ40,55196910-197209

FOR BENCH SEAT,BLACK

sub71756-30020

main71756-30020-01iFJ55197210-197509

BLACK

sub71756-30020

main71756-90321iFJ45197901-198007

main71756-90321iFJ40197209-197901

FOR SEPARATE SEAT

71816PLATE, DRIVER SEAT LEATHER SET

main71823-60010iFJ40196903-197209

71821SHIELD, FRONT SEAT SIDE, RH

main71821-60020iFJ40196903-197004

main71821-90300iBJ40,FJ4#197901-198007

71822SHIELD, FRONT SEAT SIDE, LH

main71822-90300iBJ40,FJ4#197901-198007

main71827-60030iFJ40196903-197004

71950HEADREST ASSY, FRONT SEAT

main71950-22050-03iFJ40197209-197509

GRAY

sub71950-22050

main71950-39026-03iFJ55196910-197509

GRAY

main71950-60010iFJ40196910-197209

main71950-90301iBJ40,FJ40197901-198007

main71950-90352iBJ40,FJ40,55197509-197901

main71950-90353iFJ55197901-198007

72110ESPRING, TENSION, NO.1 (FOR SEAT TRACK)

main90506-12009iFJ40196903-197209

72110STRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)

main72110-60010iFJ40196903-197209

BENCH SEAT

main72110-90321iFJ40197209-197307

SEPARATE SEAT

main72110-90325iBJ40,FJ40197307-197901

SEPARATE SEAT

main72110-90333iBJ40,FJ40197901-198007

SEPARATE SEAT

main72130-90331iFJ45197606-197901

72120STRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT)

main72110-60010iFJ40196903-197209

BENCH SEAT

main72120-90321iFJ40197209-197307

SEPARATE SEAT

main72120-90325iBJ40,FJ40197307-197901

SEPARATE SEAT

main72120-90330iFJ45197606-197901

main72120-90333iBJ40,FJ4#197901-198007

SEPARATE SEAT

72201HANDLE SUB-ASSY, SEAT TRACK

main72201-60020iFJ40196903-197209

72242LEVER, SEAT TRACK LOCK OPEN

main72213-60020iFJ40196903-197209

72301WIRE SUB-ASSY, SEAT TRACK EQUALIZING

main72301-22050iFJ55197509-197804

sub72301-20100

main72301-30030iFJ55196903-197402

main72301-60010iFJ40196903-197209

BENCH SEAT

main72301-90321iFJ40197209-197510

SEPARATE SEAT

main72301-90322iBJ40,FJ40197510-197901

SEPARATE SEAT

main72301-90351iFJ55197402-197509

main72301-90352iFJ55197804-198007

7181230010CLIP (FOR FRONT SEAT CUSHION COVER)

main71812-30010

9054110009

main90541-10009

9111140820

main91111-40820

9161160825

main91611-60825

9165160820

main91651-60820

9311914010

main93119-14010

9331515012

main93315-15012

9338515012

main93385-15012

9411040800

main94110-40800

9451100000

main94511-00000

9451100400

main94511-00400

9451100800

main94511-00800

9461110800

main94611-10800

9461310800

main94613-10800

45 parts on this diagram · 9 diagrams in section
