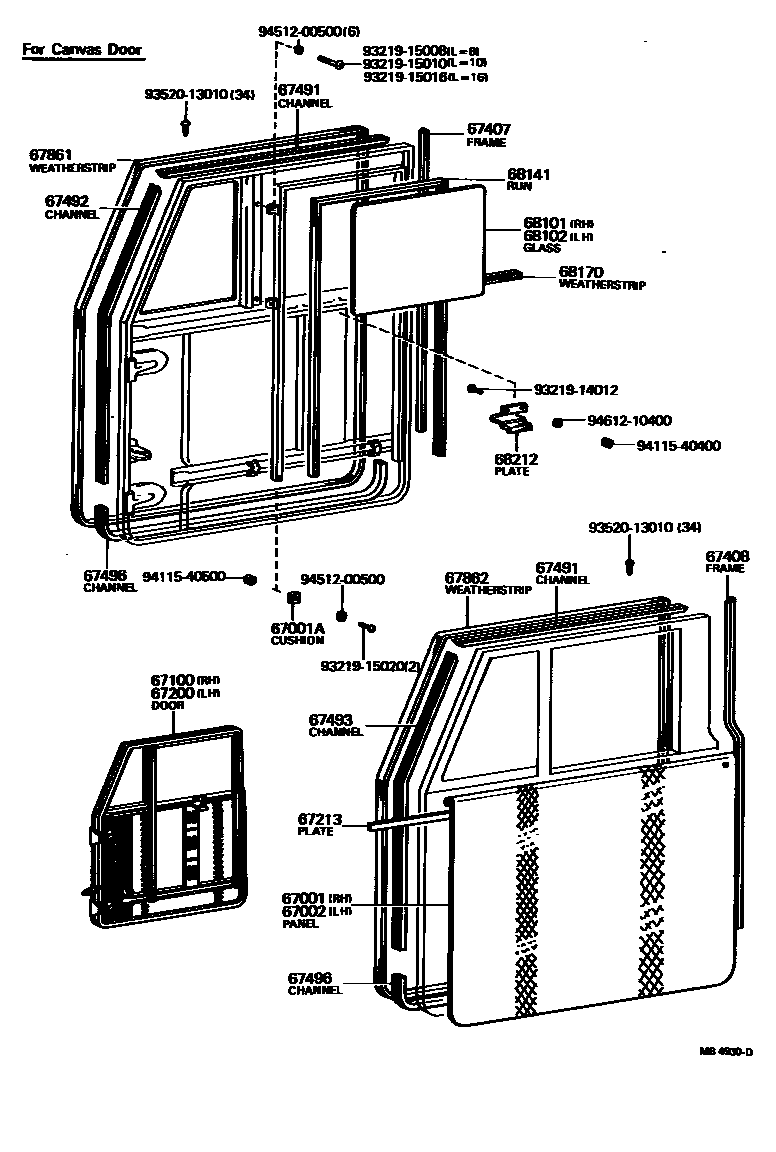

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1 0005 1 0006 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-60022iFJ40196903-197207

STEEL DOOR

sub67451-90301

sub69405-90300

main67001-60040iFJ40..TP196903-197109

CANVAS DOOR

sub67111-60040

main67001-60061iFJ40..V196903-197207

W/DOOR TRIM

sub67451-90301

sub69405-90300

main67001-90301iFJ40..TP197109-197608

CANVAS DOOR

main67001-90304iFJ40197207-197309

STEEL DOOR

main67001-90306iFJ40..V197207-197309

W/DOOR TRIM

main67001-90309iFJ40197309-197501

STEEL DOOR

main67001-90311iFJ40..V197309-197501

W/DOOR TRIM

main67001-90312iFJ4#..PIC,V197501-197608

W/DOOR TRIM

main67001-90313iFJ4#..PIC,V197608-197709

W/DOOR TRIM

main67001-90315iFJ40..TP197608-197709

CANVAS DOOR

main67001-90316iBJ40,FJ4#197803-198005

main67001-90353iFJ55196903-197006

main67001-90355iFJ55197006-197309

main67001-90360iFJ55197309-197705

sub67001-90365

main67001-90363iFJ55197705-197804

main67001-90368iFJ55197804-198007

main67001-90800iBJ40,FJ4#198005-198007

sub67001-90802

67001ACUSHION, FRONT DOOR PANEL

main69891-60010×4iFJ40..TP196903-197709

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-60022iFJ40196903-197207

STEEL DOOR

sub67451-90301

sub69405-90300

main67002-60040iFJ40..TP196903-197109

CANVAS DOOR

sub67112-60040

main67002-60061iFJ40..V196903-197207

W/DOOR TRIM

sub67451-90301

sub69405-90300

main67002-90301iFJ40..TP197109-197608

CANVAS DOOR

main67002-90304iFJ40197207-197309

STEEL DOOR

main67002-90306iFJ40..V197207-197309

W/DOOR TRIM

main67002-90309iFJ40197309-197501

STEEL DOOR

main67002-90311iFJ40..V197309-197501

W/DOOR TRIM

main67002-90312iFJ4#..PIC,V197501-197608

W/DOOR TRIM

main67002-90313iFJ4#..PIC,V197608-197709

W/DOOR TRIM

main67002-90315iFJ40..TP197608-197709

CANVAS DOOR

main67002-90316iBJ40,FJ4#197803-198005

main67002-90353iFJ55196903-197006

main67002-90355iFJ55197006-197309

main67002-90360iFJ55197309-197705

sub67002-90365

main67002-90363iFJ55197705-198007

main67002-90800iBJ40,FJ4#198005-198007

sub67002-90802

67100DOOR ASSY, FRONT RH

main67100-60041iFJ40..TP196903-197109

main67100-90301iFJ40..TP197109-197309

main67100-90309iFJ40..TP197309-197608

main67100-90322iFJ40..TP197608-197709

67200DOOR ASSY, FRONT, LH

main67200-60041iFJ40..TP196903-197109

main67200-90301iFJ40..TP197109-197309

main67200-90309iFJ40..TP197309-197608

main67200-90322iFJ40..TP197608-197709

67213PLATE, FRONT DOOR CANVAS SET

main67211-60020iFJ40..TP196903-197709

RH.

main67212-60020iFJ40..TP196903-197709

LH.

67407FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67047-90300iFJ4#..PIC,V197501-197709

FOR STEEL DOOR

main67494-60010iFJ40..TP196903-197709

FOR CANVAS DOOR

67408FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67047-90300iFJ4#..PIC,V197501-197709

FOR STEEL DOOR

main67494-60010iFJ40..TP196903-197709

FOR CANVAS DOOR

67491CHANNEL, CANVAS DOOR WEATHERSTRIP UPPER HOLD

main67491-60010×2iFJ40..TP196903-197709

67492CHANNEL, CANVAS DOOR WEATHERSTRIP FRONT HOLD, RH

main67492-60010iFJ40..TP196903-197709

67493CHANNEL, CANVAS DOOR WEATHERSTRIP FRONT HOLD, LH

main67493-60010iFJ40..TP196903-197709

67496CHANNEL, CANVAS DOOR WEATHERSTRIP UNDER HOLD

main67496-60010×2iFJ40..TP196903-197709

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-90300iBJ40,FJ4#197805-198007

main67861-90351iFJ55196903-197705

main67861-90357iFJ55197705-197807

main67861-90358iFJ55197807-198005

main67861-90359iFJ55198005-198007

main68108-60020iFJ40196903-197207

FOR STEEL DOOR

main68108-90300iFJ40197207-197501

FOR STEEL DOOR

main68108-90301iBJ40,FJ4#197709-197805

FOR STEEL DOOR

main68161-60020iFJ40..TP196903-197709

FOR CANVAS DOOR

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-90300iBJ40,FJ4#197805-198007

main67862-90351iFJ55196903-197705

main67862-90357iFJ55197705-197807

main67862-90358iFJ55197807-198005

main67862-90359iFJ55198005-198007

main68109-60020iFJ40196903-197207

FOR STEEL DOOR

main68109-90300iFJ40197207-197501

FOR STEEL DOOR

main68109-90301iBJ40,FJ4#197709-197805

FOR STEEL DOOR

main68161-60020iFJ40..TP196903-197709

FOR CANVAS DOOR

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-60012iFJ40196903-197501

FOR STEEL DOOR

sub68111-90333

main68111-60040iFJ40..TP196903-197304

FOR CANVAS DOOR

main68111-90301iFJ40..TP197304-197709

FOR CANVAS DOOR

main68111-90302iFJ4#..PIC,V197501-197709

FOR STEEL DOOR

main68111-90303iBJ40,FJ4#197706-198007

TP.T=5.0,FOR W/VENT.WINDOW

main68111-90304iBJ40,FJ40..VKC197709-197901

TN.TP.T=5.0

main68111-90305iBJ40,FJ40..VKC197709-197901

TN.TP.T=5.0,FOR W/VENT,WINDOW

main68111-90351iFJ55196903-197309

main68111-90352iFJ55197309-197705

TP.T=5.0

main68111-90353iFJ55197309-197705

TN.TP.T=5.0

main68111-90354iFJ55197705-197901

TP.T=5.0

main68111-90355iFJ55197705-197901

TN.TP.T=5.0

main68111-90356iFJ55197901-198007

TP.T=4.0

main68111-90357iFJ55197901-198007

TN.TP.T=4.0

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68111-60012iFJ40196903-197501

FOR STEEL DOOR

sub68111-90333

main68111-60040iFJ40..TP196903-197304

FOR CANVAS DOOR

main68111-90301iFJ40..TP197304-197709

FOR CANVAS DOOR

main68111-90302iBJ40,FJ4#197709-198007

main68111-90303iBJ40,FJ4#197706-198007

TP.T=5.0,FOR W/VENT.WINDOW

main68111-90304iFJ40..VKC..USA197608-197709

TN.TP.T=5.0

main68111-90305iBJ40,FJ4#197901-198007

TN.TP.T=5.0,FOR W/VENT.WINDOW

main68111-90351iFJ55196903-197309

main68111-90352iFJ55197309-197705

TP.T=5.0

main68111-90353iFJ55197309-197705

TN.TP.T=5.0

main68111-90354iFJ55197705-197901

TP.T=5.0

main68111-90355iFJ55197705-197901

TN.TP.T=5.0

main68111-90356iFJ55197901-198007

TP.T=4.0

main68111-90357iFJ55197901-198007

TN.TP.T=4.0

68141RUN, FRONT DOOR GLASS

main68105-90300×2iFJ4#..PIC,V197501-197709

UPPER,FOR STEEL DOOR

main68105-90301×2iBJ40,FJ4#197608-197909

FOR W/VENTILATING WINDOW

main68105-90302×2iBJ40,FJ4#197909-198007

FOR L/VENTILATING WINDOW

main68105-90303×2iBJ40,FJ4#197909-198007

FOR W/VENTILATING WINDOW

main68141-90351×2iFJ55196903-197309

main68141-90352×2iFJ55197309-197705

main68141-90353×2iFJ55197705-197901

main68141-90354×2iFJ55197901-198007

main68212-90300×2iFJ40196903-197501

UPPER,FOR STEEL DOOR

main68213-60010×4iFJ40196903-197103

SIDE,FOR STEEL DOOR

main68213-90300×4iFJ40197103-197501

SIDE,FOR STEEL DOOR

main69921-60010×2iFJ40..TP196903-197709

FOR CANVAS DOOR

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68130-90352iFJ55197309-198007

RH.

main68160-90300×2iBJ40,FJ4#197709-198007

main68160-90301iBJ40,FJ4#197608-198007

RH.,FOR W/VENTILATING WINDOW

main68170-60010×2iFJ40196903-196910

FOR STEEL DOOR

main68170-60020×2iFJ40..TP196903-196910

FOR CANVAS DOOR

main68170-90300×2iFJ40196910-197501

FOR STEEL DOOR

main68170-90301×2iFJ40..TP196910-197709

FOR CANVAS DOOR

main68170-90302iBJ40,FJ4#197608-198007

LH.,FOR W/VENTILATING WINDOW

main68170-90351×2iFJ55196903-197309

main68170-90352iFJ55197309-198007

LH.

68212PLATE, CANVAS DOOR WINDOW HOLDER

main68212-60020×2iFJ40..TP196903-197709

9321914012

main93219-14012

9321915008

main93219-15008

9321915010

main93219-15010

9321915016

main93219-15016

9321915020

main93219-15020

9352013010

main93520-13010

9411540400

main94115-40400

9411540500

main94115-40500

9451200500

main94512-00500

9461210400

main94612-10400

29 parts on this diagram · 5 diagrams in section
