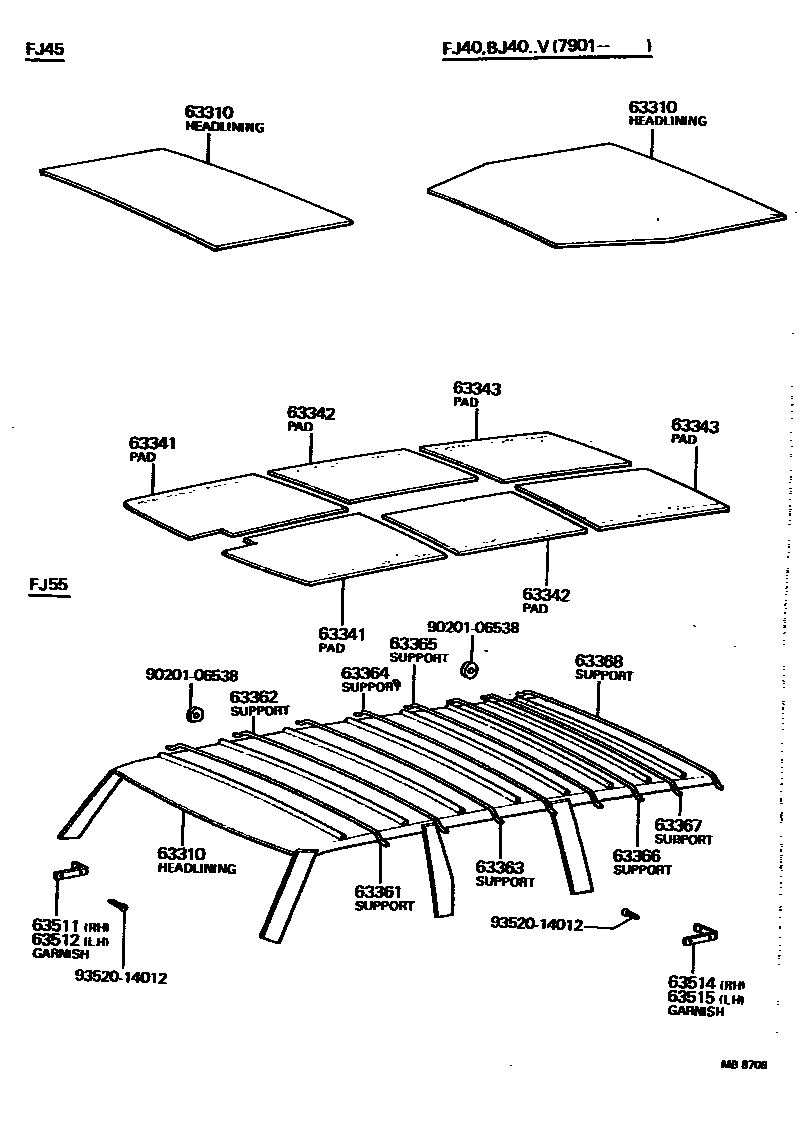

ROOF HEADLINING & SILENCER PAD

63310HEADLINING ASSY, ROOF

main63310-90351iFJ55196903-197209

main63310-90352iFJ55197209-197901

main63310-90353iFJ55197901-198007

main63311-90302iBJ40,FJ40..VKC197901-198007

main63311-90332iFJ45197606-197901

main63311-90333iFJ45197901-198007

63341PAD, ROOF SILENCER, NO.1

main63316-90351×2iFJ55196903-198007

63342PAD, ROOF SILENCER, NO.2

main63317-90351×2iFJ55196903-198007

63343PAD, ROOF SILENCER, NO.3

main63318-90351×2iFJ55196903-198007

63361SUPPORT, ROOF HEADLINING, NO.1

main63321-90351iFJ55196903-198007

63362SUPPORT, ROOF HEADLINING, NO.2

main63322-90351iFJ55196903-198007

63363SUPPORT, ROOF HEADLINING, NO.3

main63323-90351iFJ55196903-198007

63364SUPPORT, ROOF HEADLINING, NO.4

main63324-90351iFJ55196903-198007

63365SUPPORT, ROOF HEADLINING, NO.5

main63325-90351iFJ55196903-198007

63366SUPPORT, ROOF HEADLINING, NO.6

main63326-90351iFJ55196903-198007

63367SUPPORT, ROOF HEADLINING, NO.7

main63327-90351iFJ55196903-198007

63368SUPPORT, ROOF HEADLINING, NO.8

main63328-90351iFJ55196903-198007

63511GARNISH, ROOF HEADLINING SIDE, FRONT RH

main63347-90351iFJ55196903-197901

main63347-90352iFJ55197901-198007

63512GARNISH, ROOF HEADLINING SIDE, FRONT LH

main63348-90351iFJ55196903-197901

main63348-90352iFJ55197901-198007

63514GARNISH, ROOF HEADLINING SIDE, REAR RH

main63349-90351iFJ55196903-198007

63515GARNISH, ROOF HEADLINING SIDE, REAR LH

main63351-90351iFJ55196903-198007

9020106538

main90201-06538

9352014012

main93520-14012

18 parts on this diagram · 1 diagram in section
