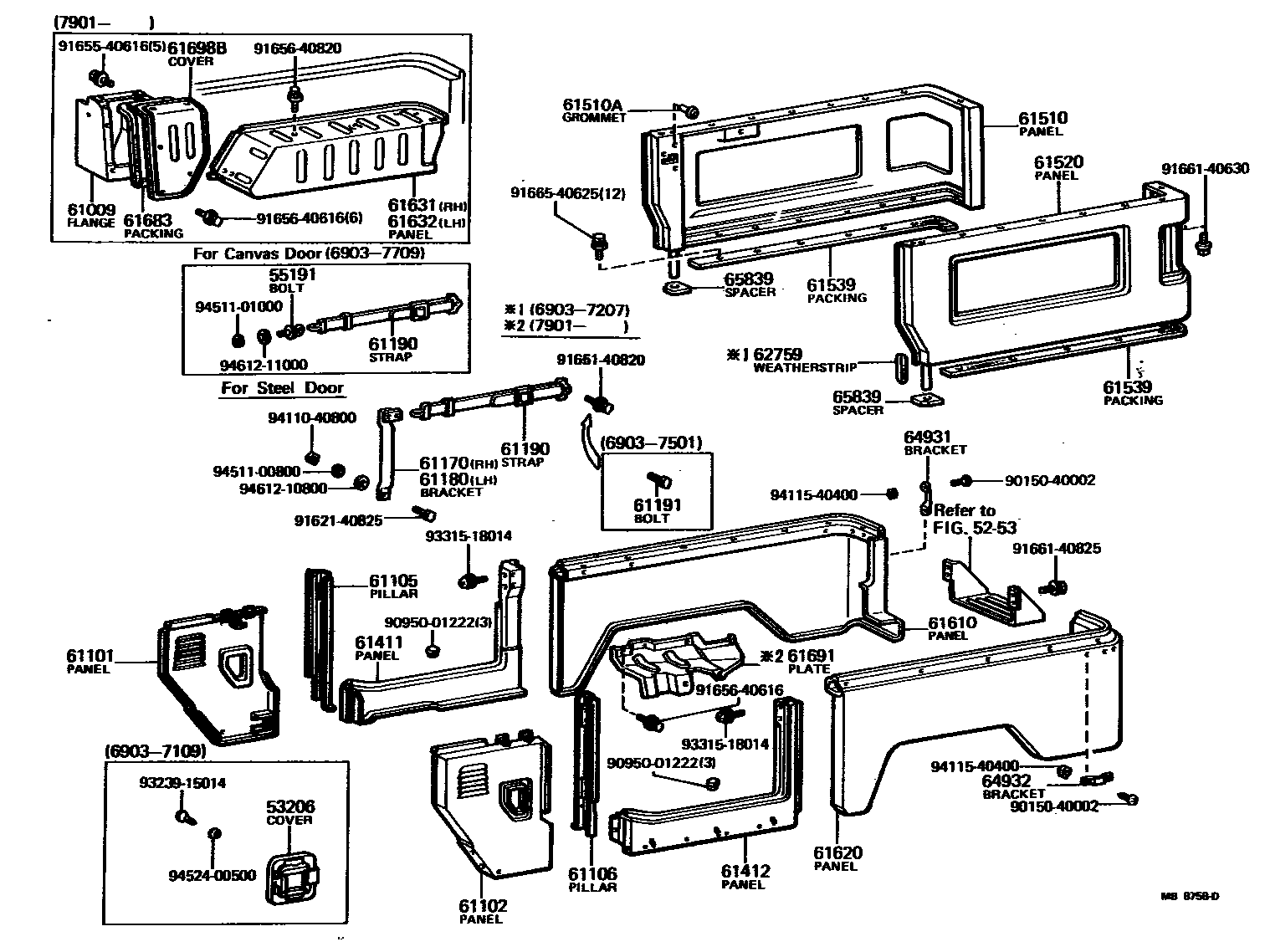

SIDE MEMBER

0001 1 0002 1 0003 1

5253

53206COVER SUB-ASSY, COWL SIDE AIR GUIDE

main53206-60010iFJ40196903-197109

55191BOLT, SAFETY STRAP RING

main55191-60010iFJ40..TP196903-197709

61009FLANGE SUB-ASSY,REAR SIDE SERVICE HOLE COVER SET

main61009-90300iBJ40,FJ40197901-198007

61101PANEL SUB-ASSY, COWL SIDE, RH

main55706-90301iBJ40,FJ4#197109-197901

main55706-90305iBJ40,FJ4#197901-198007

sub55706-90162

main55706-90310iBJ40,FJ4#197911-198007

FOR W/RADIO

main61101-90352iFJ55196903-197209

main61101-90353iFJ55196910-197209

FOR W/COOLER

main61101-90355iFJ55197209-198007

61102PANEL SUB-ASSY, COWL SIDE, LH

main55707-90300iBJ40,FJ4#..CND197109-197901

sub55707-90301

main55707-90310iFJ40..USA197709-197901

main55707-90311iBJ40,FJ4#..CND197901-198007

sub55707-90817

main55707-90319iFJ40..USA197901-198007

main61102-90352iFJ55196903-197209

main61102-90355iFJ55197209-198007

61105PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, RH

main61106-90300iFJ40197109-197901

main61106-90306iBJ40,FJ4#..PIC,V197501-197901

sub61106-90305

main61106-90310iBJ40,FJ4#197901-198007

main61106-90311iFJ40..VKC..USA197901-198007

FOR W/COOLER

61106PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, LH

main61107-90300iFJ40197109-197310

sub61107-90302

main61107-90302iFJ40197310-197901

main61107-90313iBJ40,FJ4#..PIC,V197501-197901

main61107-90317iBJ40,FJ4#197901-198007

61170BRACKET ASSY, SAFETY STRAP, RH

main61018-60010iFJ4#196903-197607

FOR STEEL DOOR

sub61193-90300

main61193-90300iBJ40,FJ4#197607-198007

FOR STEEL DOOR

61180BRACKET ASSY, SAFETY STRAP, LH

main61019-60010iFJ4#196903-197607

FOR STEEL DOOR

sub61193-90300

main61193-90300iBJ40,FJ4#197607-198007

FOR STEEL DOOR

61190STRAP ASSY, SAFETY

main61190-60011iFJ40196903-197501

sub61190-90300

main61190-90300iBJ40,FJ4#197501-198007

61191BOLT, SAFETY STRAP RING

main61191-60010iFJ40196903-197501

FOR STEEL DOOR

61411PANEL, ROCKER, OUTER RH

main61310-60010iFJ40196903-197012

main61310-90300iFJ40197012-197209

main61310-90302iFJ40197209-197509

main61310-90303iBJ40,FJ40197501-197806

sub61310-90305

main61310-90305iBJ40,FJ40197806-197901

main61310-90310iFJ40..USA197901-198007

main61310-90312iBJ40,FJ40..CND197901-198007

sub61310-90310

main61411-90351iFJ55196903-197705

sub61411-90352

main61411-90352iFJ55197705-198007

61412PANEL, ROCKER, OUTER LH

main61320-60010iFJ40196903-197012

main61320-90300iFJ40..TP197012-197509

main61320-90302iBJ40,FJ40197501-197806

sub61320-90304

main61320-90304iBJ40,FJ40197806-197901

sub61320-90303

main61320-90305iFJ40..USA197901-198007

main61320-90309iBJ40,FJ40..CND197901-198007

sub61320-90305

main61412-90351iFJ55196903-197705

sub61412-90352

main61412-90352iFJ55197705-198007

61510PANEL ASSY, REAR UPPER SIDE, RH

main61501-60011iFJ40..VLS196903-197501

sub61501-90303

sub61549-90800

main61501-60020iFJ40..VKC197204-197509

sub61501-90304

sub61549-90800

main61501-90307iFJ40..VKC197509-197608

sub61501-90306

sub61549-90800

main61501-90315iFJ40..VKC197802-198007

sub61501-90312

sub61549-90800

main61501-90316iFJ40..VKC197608-197802

sub61501-90313

sub61549-90800

main61501-90318iBJ40,FJ40..CND197803-198007

sub61501-90829

sub61549-90800

61510AGROMMET, SAFETY BELT ANCHORAGE NUT

main58276-90300iBJ40,FJ40..V196903-198007

61520PANEL ASSY, REAR UPPER SIDE,LH

main61502-60011iFJ40..VLS196903-197309

sub61502-90310

main61502-60020iFJ40..VKC197204-197309

sub61502-90309

main61502-90304iFJ40..VLS197309-197501

sub61502-90310

main61502-90306iFJ40..VKC197309-197509

sub61502-90309

main61502-90309iFJ40..VKC197509-197608

main61502-90316iFJ40..VKC..USA197802-198007

sub61502-90317

main61502-90317iFJ40..VKC197608-197802

main61502-90319iBJ40197803-198007

61539PACKING, REAR UPPER SIDE PANEL SET

main61534-60011iBJ40,FJ40..V196903-198007

61610PANEL ASSY, REAR BODY SIDE, RH

main61601-60011iFJ40..VKC197204-197209

sub61601-90419

main61601-60042iFJ40..TP196903-196910

sub61601-90430

main61601-60044iFJ40..TP196910-197109

FOR L/T.C.S.S.

sub61601-90434

main61601-60061iFJ40..VLS196903-196910

sub61601-90431

main61601-60063iFJ40..VLS196910-197109

FOR L/T.C.S.S.

sub61601-90435

main61601-60110iFJ40..VLS197002-197109

FOR W/T.C.S.S.

sub61601-90435

main61601-60120iFJ40..TP197002-197109

FOR W/T.C.S.S.

sub61601-90434

main61601-90074iFJ40..VKC197209-197302

sub61601-90426

main61601-90079iFJ40..TP197302-197309

sub61601-90436

main61601-90080iFJ40..VLS197302-197309

sub61601-90437

main61601-90081iFJ40..VKC197302-197309

sub61601-90426

main61601-90273iFJ40..TP197309-197509

sub61601-90436

main61601-90274iFJ40..VLS197309-197501

sub61601-90437

main61601-90283iBJ40,FJ40..VKC197309-197901

main61601-90340iFJ40..TP197109-197209

FOR W/T.C.S.S.

sub61601-90434

main61601-90341iFJ40..VLS197109-197209

FOR W/T.C.S.S.

sub61601-90435

main61601-90348iFJ40..TP197209-197302

sub61601-90436

main61601-90349iFJ40..VLS197209-197302

sub61601-90437

main61601-90631iFJ40..TP197509-197901

main61601-90816iFJ40..TP197901-197904

sub61601-90845

sub61802-90302

main61601-90817iBJ40,FJ40..VKC197901-197904

sub61601-90846

sub61802-90302

main61601-90845iFJ40..TP197904-198005

main61601-90846iBJ40,FJ40..VKC197904-198007

main61601-90875iFJ40..TP198005-198007

61620PANEL ASSY, REAR BODY SIDE, LH

main61602-60042iFJ40..TP196903-196910

sub61602-90272

main61602-60044iFJ40..TP196910-197109

sub61602-90280

main61602-60061iFJ40..VLS196903-196910

sub61602-90273

main61602-60063iFJ40..VLS196910-197109

sub61602-90281

main61602-60091iFJ40..VKC197204-197309

sub61602-90089

main61602-90073iFJ40..VKC197309-197608

main61602-90338iFJ40..TP197109-197309

sub61602-90280

main61602-90339iFJ40..VLS197109-197309

sub61602-90281

main61602-90345iFJ40..TP197309-197509

sub61602-90282

main61602-90348iFJ40..VLS197309-197501

sub61602-90283

main61602-90436iFJ40..TP197509-197608

main61602-90602iFJ40..TP197608-197901

main61602-90603iBJ40,FJ40..VKC197608-197901

main61602-90628iFJ40..TP197901-198005

main61602-90629iBJ40,FJ40..VKC197901-198005

main61602-90819iFJ40..TP198005-198007

main61602-90820iBJ40,FJ40..VKC198005-198007

61631PANEL, QUARTER WHEEL HOUSE, RH

main61603-90344iBJ40,FJ40..VKC197901-198007

main61603-90348iFJ40..TP197901-198007

main61631-90351iFJ55196903-197109

OUTER,FOR L/T.C.S.S.

sub61646-90351

main61631-90352iFJ55196909-197209

OUTER,FOR W/T.C.S.S.

sub61646-90351

main61633-90904iFJ55196903-197109

INNER,FOR L/T.C.S.S.

main61633-90905iFJ55197002-197209

INNER,FOR W/T.C.S.S.

main61646-90351iFJ55197209-198007

OUTER

main61648-90901iFJ55197209-197508

INNER

sub61705-90351

main61705-90351iFJ55197508-198007

INNER

61632PANEL, QUARTER WHEEL HOUSE, LH

main61604-90344iBJ40,FJ40..VKC197901-198007

main61604-90348iFJ40..TP197901-198007

main61632-90351iFJ55196903-197109

OUTER,FOR L/T.C.S.S.

sub61647-90351

main61632-90352iFJ55197002-197209

OUTER,FOR W/T.C.S.S.

sub61647-90351

main61634-90904iFJ55196903-197209

INNER

main61647-90351iFJ55197209-198007

OUTER

main61649-90901iFJ55197209-197508

INNER

sub61706-90351

main61706-90351iFJ55197508-198007

INNER

61683PACKING, REAR BODY REAR SIDE SERVICE HOLE COVER

main61683-90300iBJ40,FJ40197901-198007

61691PLATE, REAR FENDER UNDER GUARD

main61691-90300iBJ40,FJ40197901-198007

61698BCOVER, REAR BODY SIDE SERVICE HOLE

main61698-90300iBJ40,FJ40197901-198007

62759WEATHERSTRIP, UPPER SIDE SET FLANGE

main62749-60010iFJ40..V196903-197207

sub65839-90300

64931BRACKET, BAND, NO.1

main64921-60010iFJ40..TP;FJ40..VLS196903-198007

64932BRACKET, BAND, NO.2

main64921-90310iFJ40..TP;FJ40..VLS196903-198007

65839SPACER, FRONT SIDE PANEL PILLAR

main65839-60010iFJ40..V196903-197207

sub65839-90300

main65839-90300iBJ40,FJ40..V197207-198007

9015040002

main90150-40002

9095001222

main90950-01222

9162140825

main91621-40825

9165140820

main91651-40820

9165540616

main91655-40616

9165640616

main91656-40616

9165640820

main91656-40820

9166140630

main91661-40630

9166140825

main91661-40825

9166540625

main91665-40625

9323915014

main93239-15014

9331518014

main93315-18014

9411040800

main94110-40800

9411540400

main94115-40400

9451100800

main94511-00800

9451101000

main94511-01000

9452400500

main94524-00500

9461210800

main94612-10800

9461211000

main94612-11000

48 parts on this diagram · 3 diagrams in section
