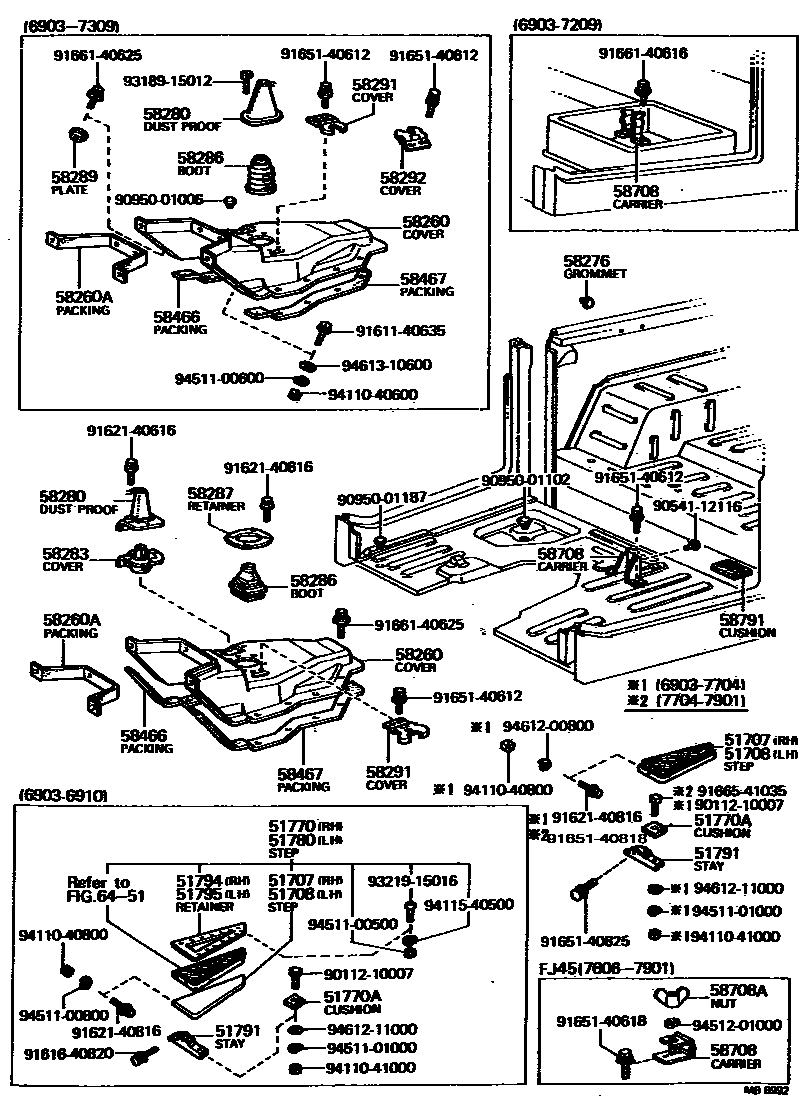

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1 0003 1

51707STEP SUB-ASSY, RH

main51706-90351iFJ55197209-198007

main51707-60011iFJ40196903-196910

main51707-60012iFJ40196910-197012

main51707-90300iFJ40¥8,500197012-197309

sub51707-90301¥8,500

main51707-90301iBJ40,FJ4#¥8,500197309-197806

sub51707-90302¥8,500

main51707-90302iBJ40,FJ4#¥8,500197806-197901

main51707-90304iBJ40,FJ4#¥10,400197901-198007

51708STEP SUB-ASSY, LH

main51707-90351iFJ55197209-198007

main51708-60011iFJ40196903-196910

sub51790-60011¥8,500

main51708-60012iFJ40196910-197012

main51708-90300iFJ40¥8,500197012-197309

sub51708-90301¥8,500

main51708-90301iBJ40,FJ4#¥8,500197309-197806

sub51708-90302¥8,500

main51708-90302iBJ40,FJ4#¥8,500197806-197901

main51708-90304iBJ40,FJ4#¥10,400197901-198007

51770STEP ASSY, FRONT, RH

main51780-60011iFJ40¥8,100196903-196910

sub51707-69015¥8,500

51770ACUSHION(FOR STEP)

main52213-90310iFJ40¥510196903-197203

sub52212-90310¥510

main52232-90300iBJ40,FJ4#¥410197901-198007

51780STEP ASSY, FRONT, LH

main51790-60011iFJ40¥8,500196903-196910

sub51707-69015¥8,500

51791STAY, STEP

main51701-90300iBJ40,FJ4#¥4,460197901-198007

main51791-60010iBJ40,FJ4#196903-197901

51794RETAINER, FRONT STEP MAT, RH

main51793-60011iFJ40196903-196910

51795RETAINER,FRONT STEP MAT, LH

main51794-60011iFJ40196903-196910

58260COVER ASSY, TRANSMISSION, FRONT

main58111-90351iFJ55196903-197103

COLUMN SHIFT

main58111-90352iFJ55196903-197103

COLUMN SHIFT W/WINCH

main58111-90357iFJ55197103-197209

COLUMN SHIFT

main58111-90358iFJ55197103-197209

COLUMN SHIFT W/WINCH

main58111-90367iFJ55197209-197309

3-SPEED

main58111-90368iFJ55197209-197309

3-SPEED,FLOOR SHIFT,W/WINCH

main58111-90369iFJ55197309-197501

3-SPEED

main58111-90370iFJ55197309-197501

3-SPEED,W/WINCH

main58111-90371iFJ55197901-198007

main58111-90371iFJ55197309-197901

4-SPEED,CALIFORNIA SPEC.

main58111-90372iFJ55197309-197901

4-SPEED,W/WINCH,CAL.

main58206-60071iFJ40196903-197209

COLUMN SHIFT

main58206-60091iFJ40196903-197209

COLUMN SHIFT,P.T.O.

main58206-60112iFJ40196903-197209

FLOOR SHIFT,P.T.O.

main58206-60122iFJ40196903-197209

FLOOR SHIFT

main58262-90084iBJ40,FJ4#¥11,600197901-198007

main58262-90320iFJ40197209-197309

3-SPEED

main58262-90322iFJ40197209-197309

3-SPEED,W/WINCH

main58262-90337iFJ40197309-197501

3-SPEED

main58262-90339iFJ40197309-197501

3-SPEED,W/WINCH

main58262-90341iBJ40,FJ4#197309-197901

4-SPEED

main58262-90343iFJ4#197309-197901

4-SPEED,W/WINCH,CAL.

58260APACKING, FRONT TRANSMISSION SERVICE HOLE COVER

main58152-90351iFJ55196903-198007

RH.

main58153-90351iFJ55196903-198007

LH.

main58263-60010iBJ40,FJ4#¥2,130196903-197901

main58263-90300iBJ40,FJ4#¥2,840197901-198007

58276GROMMET, SAFETY BAND ANCHORAGE NUT

main58276-20020iFJ40,55¥260196903-197901

sub90950-01126¥360

main58276-90300iBJ40,FJ4#¥240197303-198007

58280DUST PROOF ASSY, TRANSFER CONTROL LEVER

main58280-60020iFJ40¥2,570196903-197209

main58280-90303iFJ40¥2,980197209-197309

sub58290-90355

main58280-90304iBJ40,FJ4#¥2,930197309-197901

sub58290-90356¥3,170

main58280-90305iBJ40,FJ4#¥2,800197901-198007

main58280-90353iFJ55196903-196907

main58290-90353iFJ55196907-197109

main58290-90354iFJ55197109-197209

main58290-90355iFJ55197209-197309

main58290-90356iFJ55¥3,170197309-198007

sub58280-90305¥2,800

58283COVER, FRONT DRIVE DUST

main58281-90351iFJ40,55¥3,770197309-197404

sub58281-90352¥3,750

main58281-90352iFJ55¥3,750197404-198007

main58288-90300iBJ40,FJ4#¥3,270197901-198007

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58273-60010iFJ40,55¥4,110196903-197309

3-SPEED

main58273-90300iBJ40,FJ4#,55¥3,590197309-198007

4-SPEED

main58273-90301iFJ40,55¥1,350197309-197501

3-SPEED

58287RETAINER, SHIFT LEVER BOOT

main58274-90300iBJ40,FJ4#,55¥1,350197309-198007

4-SPEED

main58274-90301iFJ40,55¥990197309-197501

3-SPEED

58289PLATE, TRANSMISSION SET

main58279-60010iFJ40196903-197209

58291COVER, POWER TAKE-OFF CONTROL LEVER, NO.1

main58208-60011iFJ40196903-197209

main58208-90300iFJ4#197209-197901

58292COVER, POWER TAKE-OFF CONTROL LEVER, NO.2

main58209-60010iFJ40196903-197209

58466PACKING, TRANSMISSION SERVICE HOLE COVER, NO.2

main58151-90351iFJ55196903-197309

main58151-90352iFJ55197309-198007

main58264-60010iFJ40196903-197209

main58264-90301iBJ40,FJ4#¥2,120197209-197901

58467PACKING, FRONT TRANSMISSION COVER, NO.3

main58154-90351iFJ55196903-198007

main58265-60020iFJ40196903-197209

main58265-90300iBJ40,FJ4#¥2,130197209-197901

58708CARRIER SUB-ASSY, JACK

main58031-60010iFJ40196903-197209

main58803-90300iFJ40197209-198007

main58830-90110iFJ55196903-196908

main58830-90351iFJ55196908-197901

58708ANUT, JACK CLAMP

main58829-90202iFJ55196903-196908

main58829-90351iFJ55196908-197901

58791CUSHION, JACK CLAMP

main58218-90351iFJ55196903-197003

main75242-90202iFJ55196909-197309

FOR W/T.C.S.S.

main75242-90202iFJ45197606-197901

main75242-90300iFJ40197209-198007

6451

9011210007

main90112-10007¥230

9054112116

main90541-12116¥580

9095001006

main90950-01006¥260

9095001102

main90950-01102¥310

9095001187

main90950-01187¥240

9161140635

main91611-40635¥170

9161640820

main91616-40820¥160

9162140616

main91621-40616¥80

9162140816

main91621-40816¥130

9165140612

main91651-40612¥70

9165140618

main91651-40618¥260

9165140818

main91651-40818¥80

9165140825

main91651-40825¥200

9166140616

main91661-40616¥80

9166140625

main91661-40625¥140

9166541035

main91665-41035¥230

9318915012

main93189-15012¥170

9321915016

main93219-15016¥140

9411040600

main94110-40600¥80

9411040800

main94110-40800¥120

9411041000

main94110-41000¥160

9411540500

main94115-40500¥110

9451100500

main94511-00500¥170

9451100600

main94511-00600¥120

9451100800

main94511-00800¥100

9451101000

main94511-01000¥110

9451201000

main94512-01000¥90

9461200800

main94612-00800

9461211000

main94612-11000¥170

9461310600

main94613-10600¥170

54 parts on this diagram · 3 diagrams in section
