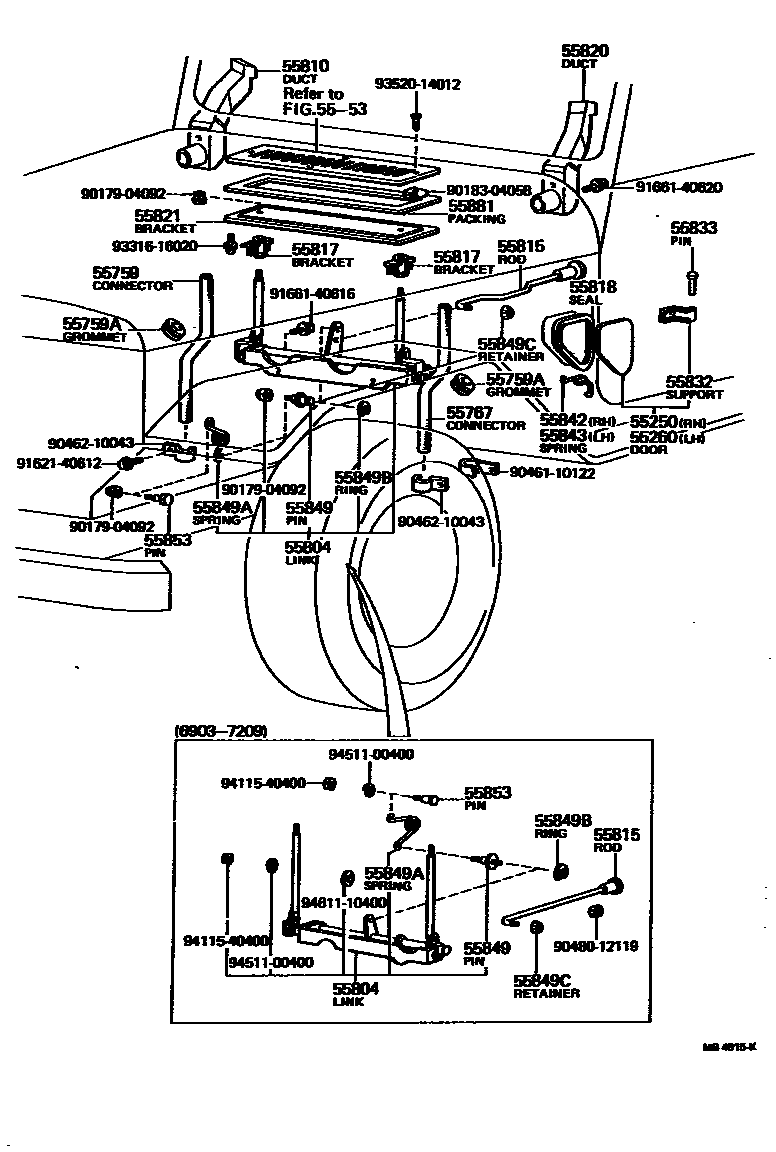

FRONT VENTILATOR
55250DOOR ASSY, COWL SIDE VENTILATOR, RH
55260DOOR ASSY, COWL SIDE VENTILATOR, LH
5553
55759CONNECTOR, COWL VENTILATOR DRAIN HOSE
55759AGROMMET, COWL VENTILATOR DRAIN HOSE CONNECTOR
55804LINK SUB-ASSY, COWL VENTILATOR DAMPER
55810DUCT ASSY, SIDE VENTILATOR, RH
55818SEAL, SIDE VENTILATOR DUCT
55820DUCT ASSY, SIDE VENTILATOR, LH
55832SUPPORT, FRONT VENTILATOR
55833PIN, FRONT VENTILATOR SUPPORT
55842SPRING, FRONT VENTILATOR, RH
55843SPRING, FRONT VENTILATOR, LH
55849PIN, COWL VENTILATOR CONTROL WIRE
55849ASPRING, TORSION(FOR COWL VENTILATOR CONTROL WIRE PIN)
55849BRING, E(FOR COWL VENTILATOR CONTROL WIRE PIN)
55853PIN,COWL VENTILATOR DAMPER SPRING
55881PACKING, FRONT VENTILATOR
9017904092
main90179-04092
9018304058
main90183-04058
9046110122
main90461-10122
9046210043
main90462-10043
9048012119
main90480-12119
9162140612
main91621-40612
9166140616
main91661-40616
9166140620
main91661-40620
9331616020
main93316-16020
9352014012
main93520-14012
9411540400
main94115-40400
9451100400
main94511-00400
9461110400
main94611-10400
36 parts on this diagram · 4 diagrams in section
