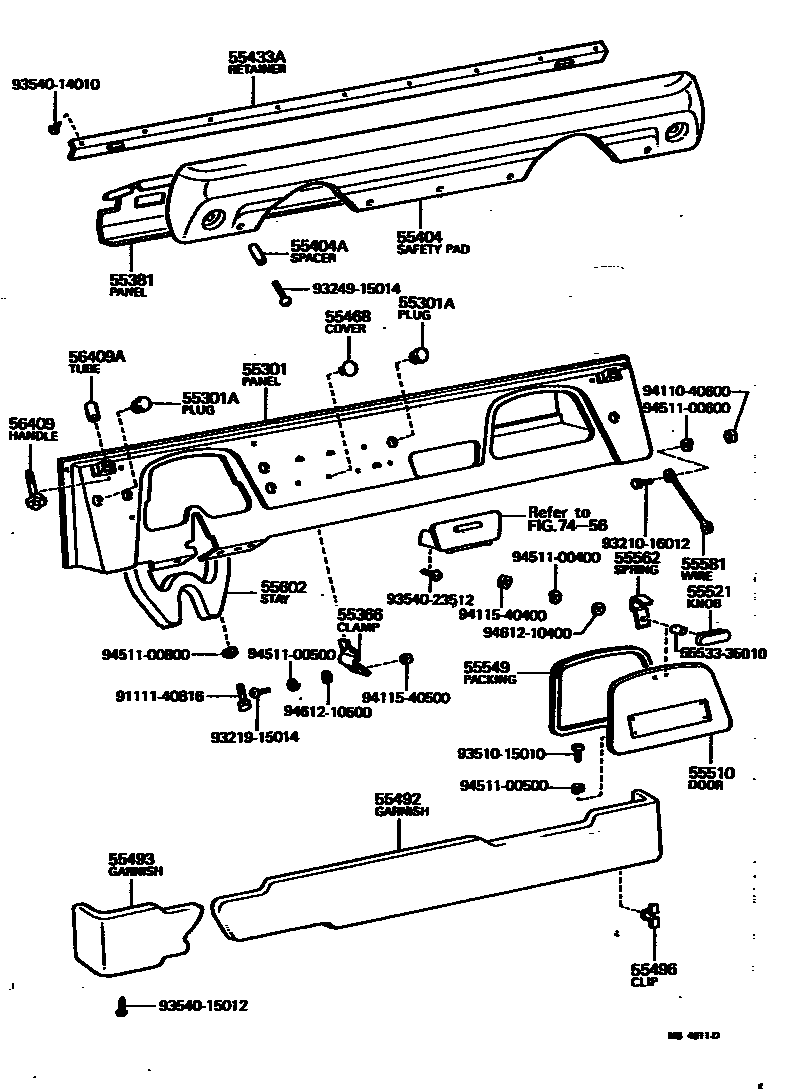

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1

55301PANEL SUB-ASSY, INSTRUMENT

main55301-60092iFJ40196903-197007

FOR COLUMN SHIFT,W/PAD

main55301-60093iFJ40197007-197012

FOR COLUMN SHIFT,W/PAD

main55301-60094iFJ40197012-197209

FOR COLUMN SHIFT,W/PAD

main55301-60102iFJ40196903-197007

FLOOR SHIFT,W/PAD

main55301-60103iFJ40197007-197012

FLOOR SHIFT,W/PAD

main55301-60104iFJ40197012-197209

FLOOR SHIFT,W/PAD

main55301-60130iFJ40197012-197209

COLUMN SHIFT,L/PAD,TANDEM M/C

main55301-90080iFJ40197709-198007

FOR W/PAD & L/HEATER

main55301-90084iFJ4#..PIC,V197709-198007

W/SIDE DEFROSTER

main55301-90089iBJ40197803-198007

main55301-90278iFJ40..VKC..USA197901-198007

FOR W/PAD,W/COOLER & HEATER

sub55301-90284

main55301-90284iFJ40..VKC..USA197901-198007

FOR W/PAD & COOLER

sub55301-90410

main55301-90286iFJ40..VKC..USA197901-198007

FOR W/COOLER & HEA.,SIDE DEF.

main55301-90300iFJ40197101-197209

FLOOR SHIFT,L/PAD

main55301-90314iFJ40197209-197309

FOR W/PAD

main55301-90322iFJ4#197309-197709

FOR W/PAD & HEATER

sub55301-90323

main55301-90323iFJ40197309-197709

FOR W/PAD & L/HEATER

main55301-90342iFJ4#..PIC,V197608-197709

W/SIDE DEFROSTER

main55301-90347iFJ40..USA197709-198007

FOR W/PAD & HEATER

sub55301-90284

main55301-90358iFJ55196903-197007

main55301-90362iFJ55197209-197709

main55301-90364iFJ55197007-197209

main55301-90366iFJ55197709-198007

55301APLUG, HOLE(FOR INSTRUMENT LOWER PANEL)

main90950-01038iFJ40197007-197209

55366CLAMP, TRANSFER CHANGE VALVE SHIFT WIRE

main55366-60010iFJ40196903-197209

55381PANEL, INSTRUMENT IMPACT

main55381-60010iBJ40,FJ4#196903-198007

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55404-60010iFJ40196903-197209

sub55404-90301

main55404-90300iBJ40,FJ4#197209-198007

sub55404-90301

main55404-90352iFJ55196903-197209

main55404-90353iFJ55197209-198007

55404ASPACER, INSTRUMENT PANEL SAFETY PAD SET

main55446-60010iFJ40196903-197303

55433ARETAINER, SAFETY PAD SET PLATE

main55449-60010iBJ40,FJ4#196903-198007

55468COVER, HEATER SWITCH HOLE

main55405-20020iFJ40196903-197209

main55464-90353iFJ55196903-198007

55492GARNISH OR SAFETY PAD, LOWER, RH

main55405-60010iFJ40196903-197209

main55405-90300iBJ40,FJ4#197209-198007

55493GARNISH OR SAFETY PAD, LOWER, LH

main55406-60010iFJ40196903-197209

sub55406-90300

main55406-90300iBJ40,FJ4#197209-198007

55496CLIP, LOWER SAFETY PAD

main55434-30020iBJ40,FJ4#196903-198007

55510DOOR ASSY, GLOVE COMPARTMENT

main55407-90352iFJ55196903-197806

main55407-90353iFJ55197806-198007

main55407-90357iFJ55196903-197209

W/LOCK

main55501-60041iBJ40,FJ4#196903-197804

main55501-90314iBJ40,FJ4#197804-198007

sub55501-90801

55521KNOB, GLOVE COMPARTMENT DOOR

main55521-12020iFJ55197806-198007

main55521-60011iBJ40,FJ4#196903-197804

main55521-90300iBJ40,FJ4#197804-198007

55549PACKING, GLOVE COMPARTMENT DOOR

main55512-90351iFJ55196903-197806

main55512-90352iFJ55197806-198007

main55549-60011iFJ40196903-197505

sub55549-90300

main55549-90300iBJ40,FJ4#197505-198007

55562SPRING, GLOVE COMPARTMENT DOOR STOP

main55544-55010iFJ40196903-197203

main55544-90300iBJ40,FJ4#197204-197804

main55544-90301iBJ40,FJ4#197804-198007

55581WIRE, GLOVE COMPARTMENT DOOR OPEN

main55508-30020iBJ40,FJ4#197005-198007

main55581-60010iFJ40196903-197005

sub55508-30020

55602STAY SUB-ASSY, STEERING COLUMN, UPPER

main55672-60020iFJ40196903-197007

56409HANDLE SUB-ASSY, WINDSHIELD CATCH

main56409-60010iFJ4#196903-198007

56409ATUBE, WINDSHIELD CATCH HANDLE

main90440-17057iBJ40,FJ4#196903-198007

7456

5553335010COVER, AUTO CLOCK HOLE

main55533-35010

9111140816

main91111-40816

9321016012

main93210-16012

9321915014

main93219-15014

9324915014

main93249-15014

9351015010

main93510-15010

9354014010

main93540-14010

9354015012

main93540-15012

9354023512

main93540-23512

9411040600

main94110-40600

9411540400

main94115-40400

9411540500

main94115-40500

9451100400

main94511-00400

9451100500

main94511-00500

9451100600

main94511-00600

9451100800

main94511-00800

9461210400

main94612-10400

9461210500

main94612-10500

38 parts on this diagram · 4 diagrams in section
