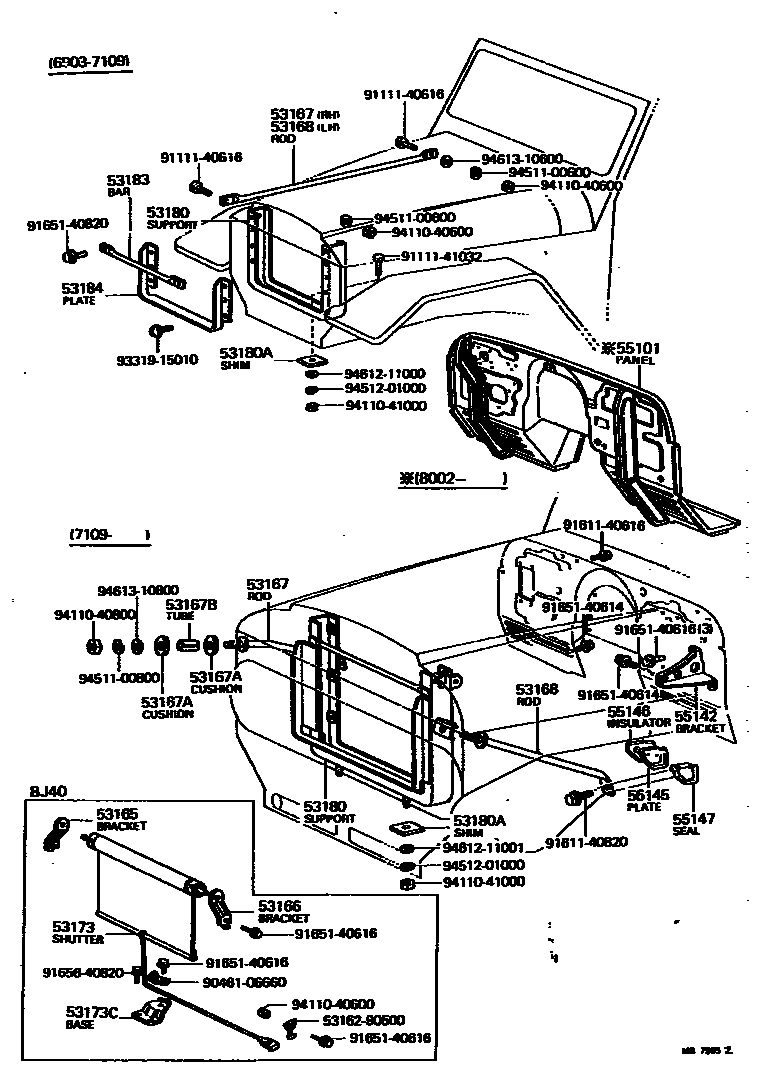

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

53165BRACKET, RADIATOR SIDE SUPPORT, RH

main53166-90300iBJ40197803-197901

main53166-90301iBJ40197901-198007

53166BRACKET, RADIATOR SIDE SUPPORT, LH

main53167-90300iBJ40197803-197901

main53167-90301iBJ40197901-198007

53167ROD, RADIATOR BRACE, RH

main53016-60010iFJ4#197109-197608

main53016-60011iFJ4#197608-198007

main53016-60050iFJ40..VKC..USA197901-198007

W/COOLER

main53167-60010iFJ40196903-197109

main53167-60030iBJ40197803-198007

53167ACUSHION(FOR RADIATOR BRACE ROD)

main90540-10022iBJ40,FJ4#197109-198007

53167BTUBE(FOR RADIATOR BRACE ROD)

main90440-11043iBJ40,FJ4#197109-198007

53168ROD, RADIATOR BRACE, LH

main53018-60010iFJ4#197109-197608

main53018-60011iFJ4#197608-197901

sub53018-60012

main53018-60012iFJ4#197901-198007

main53018-60030iFJ40..VKC..USA197901-198007

W/COOLER

main53167-60010iFJ40196903-197109

main53169-60020iBJ40197803-198007

53173SHUTTER SUB-ASSY, RADIATOR WIND

main53180-90300iBJ40197803-198007

53173CBASE, RADIATOR SHUTTER CONTROL WIRE CLAMP

main53168-90301iBJ40197803-198007

53180SUPPORT ASSY, RADIATOR

main53108-60011iFJ40196903-197109

main53108-60012iFJ40197109-197501

main53108-60013iFJ4#197501-197608

main53108-60015iFJ4#197608-197901

main53201-60010iBJ40197803-197901

main53201-60011iBJ40197901-198007

sub53201-60012

main53201-60021iFJ4#197901-198007

main53201-60041iFJ40..VKC..USA197901-198007

W/COOLER

sub53201-60042

53180ASHIM(FOR RADIATOR SUPPORT)

main90950-04010iBJ40,FJ4#196903-198007

53183BAR, RADIATOR SUPPORT

main53163-60010iFJ40196903-197109

53184PLATE, RADIATOR SHROUD

main53164-60010iFJ40196903-197109

55101PANEL SUB-ASSY, DASH

main55101-90414iBJ40198002-198007

main55101-90426iFJ4#198002-198007

main55102-90373iFJ55197708-198007

55142BRACKET,BLOWER MOTOR, LOWER

main55142-90300iFJ40..USA197901-198007

55145PLATE, DASH PANEL HEAT INSULATOR

main55145-90300iFJ40..USA197901-198007

FOR W/COOLER

55146INSULATOR, DASH PANEL HEAT

main55146-90300iFJ40..USA197901-198007

FOR W/COOLER

55147SEAL, DASH PANEL HEAT INSULATOR

main55147-90300iFJ40..USA197901-198007

FOR W/COOLER

5316290500HOOK, RADIATOR SHUTTER

main53162-90500

9046106660

main90461-06660

9111140616

main91111-40616

9111141032

main91111-41032

9161140616

main91611-40616

9161140820

main91611-40820

9165140614

main91651-40614

9165140616

main91651-40616

9165140820

main91651-40820

9165640820

main91656-40820

9331915010

main93319-15010

9411040600

main94110-40600

9411040800

main94110-40800

9411041000

main94110-41000

9451100600

main94511-00600

9451100800

main94511-00800

9451201000

main94512-01000

9461211000

main94612-11000

9461211001

main94612-11001

9461310600

main94613-10600

9461310800

main94613-10800

38 parts on this diagram · 2 diagrams in section
