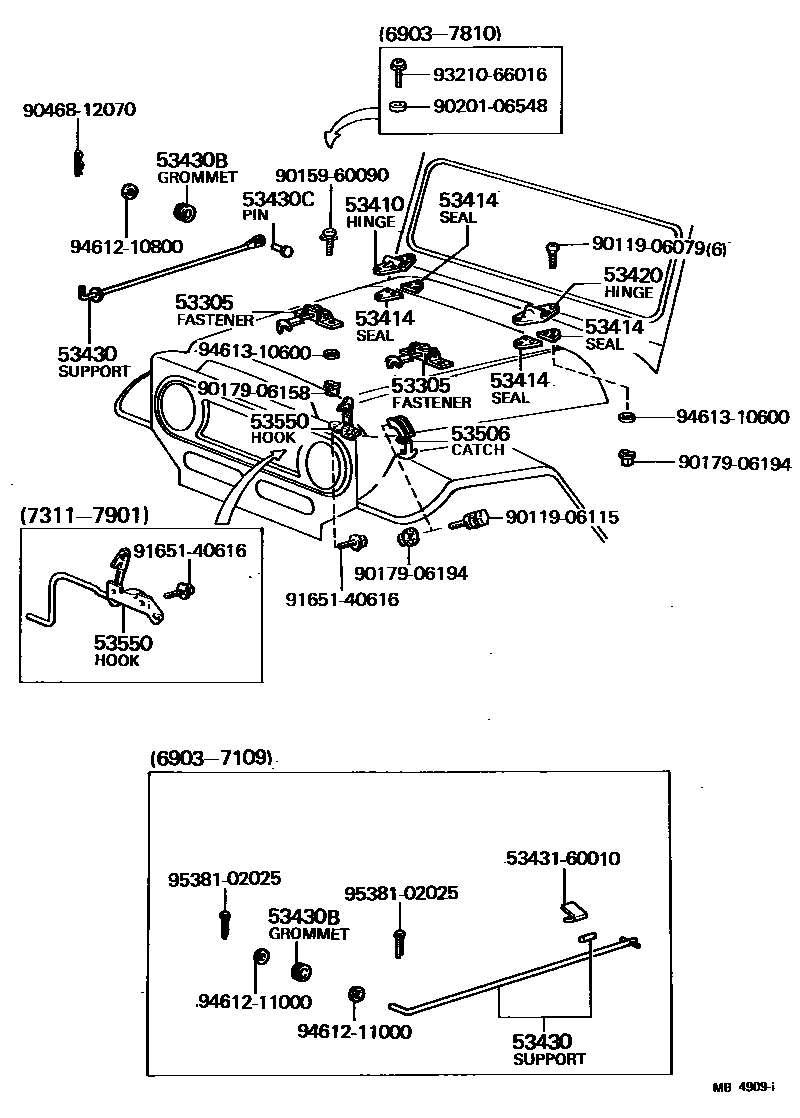

HOOD LOCK & HINGE

0001 1 0002 1

53305FASTENER SUB-ASSY, HOOD

main53304-60020iBJ40,FJ4#196903-197903

sub53504-90300

main53504-90300iBJ40,FJ4#197903-198007

53410HINGE ASSY, HOOD, RH

main53410-60010iFJ40196903-197409

sub53410-90300

main53410-90300iBJ40,FJ4#197409-197804

sub53410-90301

sub90119-06076

sub90179-06194

main53410-90301iBJ40,FJ4#197804-198007

main53410-90351iFJ55196903-198007

53414SEAL, HOOD HINGE

main53412-60010iFJ40196903-197102

sub53412-90300

main53412-90300iBJ40,FJ4#197102-198007

53420HINGE ASSY, HOOD, LH

main53410-60010iFJ40196903-197409

sub53410-90300

main53410-90300iBJ40,FJ4#197409-197804

sub53410-90301

sub90119-06076

sub90179-06194

main53410-90301iBJ40,FJ4#197804-198007

main53410-90351iFJ55196903-198007

53430SUPPORT ASSY, HOOD

main53401-90351iFJ55196903-197112

main53403-60010iFJ40196903-197109

main53403-90300iBJ40,FJ4#197109-198007

main53451-90352iFJ55197112-197501

main53451-90353iFJ55197501-197901

main53451-90354iFJ55197901-198007

53430BGROMMET(FOR HOOD SUPPORT)

main90480-14053iFJ55196903-197112

main90480-16060iBJ40,FJ4#197112-198007

main90480-20023iFJ40196903-197109

53430CPIN, W/HOLE(FOR HOOD SUPPORT)

main90240-08007iFJ40,55196903-198007

53506CATCH SUB-ASSY, HOOD

main53506-60010iFJ40196903-197109

main53506-90300iBJ40,FJ4#197109-198007

sub53506-90900

53550HOOK ASSY, HOOD AUXILIARY CATCH

main53505-90303iBJ40,FJ4#197901-198007

main53550-90300iFJ40197311-197501

sub53550-90303

main53550-90302iFJ40197501-197505

sub53550-90303

main53550-90303iBJ40,FJ4#197505-197901

main53550-90351iFJ55196903-198007

5343160010SPACER, HOOD HINGE, LOWER

main53431-60010

9011906079

main90119-06079

9011906115

main90119-06115

9015960090

main90159-60090

9017906158

main90179-06158

9017906194

main90179-06194

9020106548

main90201-06548

9046812070

main90468-12070

9165140616

main91651-40616

9321066016

main93210-66016

9461210800

main94612-10800

9461211000

main94612-11000

9461310600

main94613-10600

9538102025

main95381-02025

23 parts on this diagram · 2 diagrams in section
