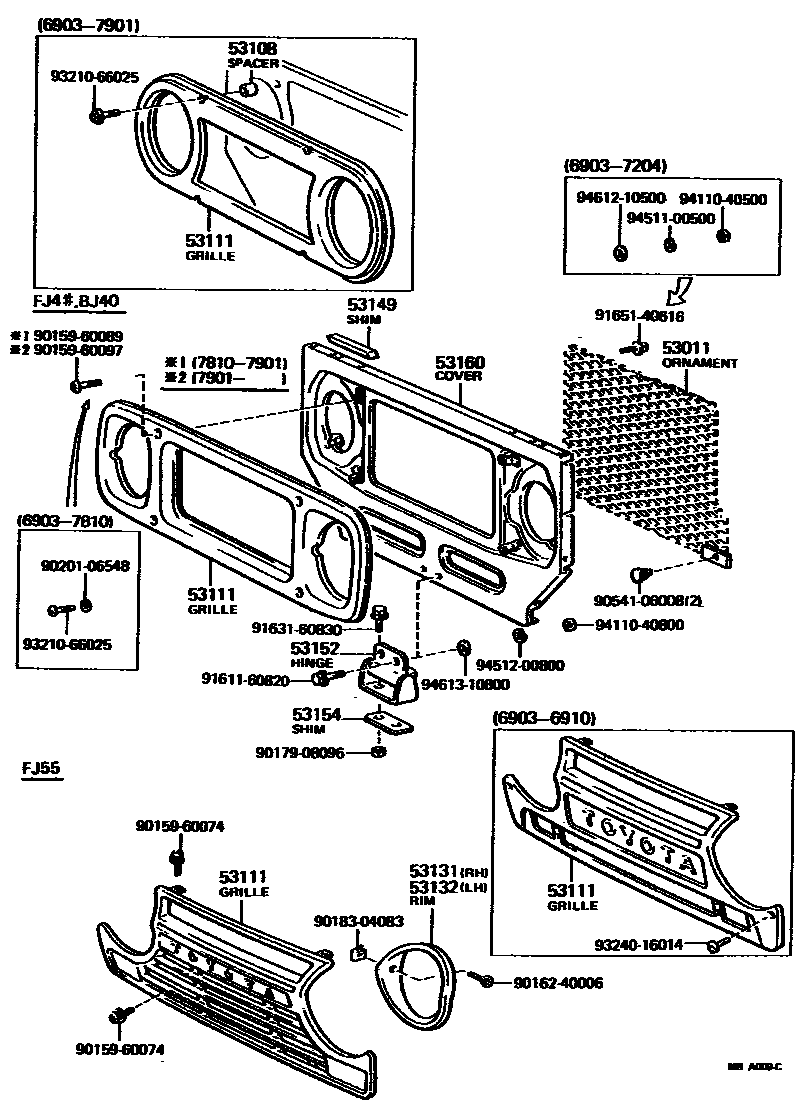

RADIATOR GRILLE

53011ORNAMENT SUB-ASSY, RADIATOR GRILLE

main53011-60010iFJ40196903-197309

main53011-90300iFJ4#197309-197608

sub53011-90301

main53011-90301iBJ40197803-197901

main53011-90302iFJ4#197608-197901

main53011-90304iFJ4#197901-198007

sub53011-90305

main53011-90305iBJ40197901-198007

53108SPACER SUB-ASSY, RADIATOR GRILLE

main53112-60010iFJ4#196903-197711

sub53112-90300

main53112-90300iBJ40,FJ4#197711-197901

53111GRILLE, RADIATOR

main53101-90351iFJ55196903-196910

main53101-90352iFJ55196903-196910

CHROME PLATED

main53101-90353iFJ55196910-197901

sub53101-90355

main53101-90354iFJ55196910-197709

CHROME PLATED

sub53101-90356

main53101-90355iFJ55197901-198007

main53111-60010iBJ40,FJ4#196903-197901

main53111-60030iFJ4#196903-197901

CHROME PLATED

sub53111-60010

main53111-90302iBJ40,FJ4#197901-198007

sub53111-90301

53131RIM, HEADLAMP, RH

main53103-90351iFJ55196903-198007

main53103-90352iFJ55196903-197901

CHROME PLATED

53132RIM, HEADLAMP, LH

main53104-90351iFJ55196903-198007

main53104-90352iFJ55196903-197901

CHROME PLATED

53149SHIM,RADIATOR COVER CUSHION

main53148-90300iFJ4#197312-198007

L=160

sub51464-90800

main53149-60010iFJ4#196903-197702

L=260

sub51464-90800

53152HINGE, RADIATOR COVER SUPPORT

main53107-90300iBJ40,FJ4#196903-198007

53154SHIM,RADIATOR COVER SUPPORT BRACKET

main53154-60010iBJ40,FJ4#196903-198007

sub53154-90800

sub53149-90800

53160COVER ASSY, RADIATOR

main53106-60011iFJ40196903-196910

main53106-60012iFJ40196910-197102

sub53106-90300

main53106-90300iFJ40197102-197109

main53106-90301iFJ4#197109-197901

main53106-90303iFJ4#197608-197901

main53106-90304iBJ40,FJ4#197901-198007

sub53106-90307

9015960074

main90159-60074

9015960089

main90159-60089

9015960097

main90159-60097

9016240006

main90162-40006

9017908096

main90179-08096

9018304083

main90183-04083

9020106548

main90201-06548

9054106008

main90541-06008

9161160820

main91611-60820

9163160830

main91631-60830

9165140616

main91651-40616

9321066025

main93210-66025

9324016014

main93240-16014

9411040500

main94110-40500

9411040800

main94110-40800

9451100500

main94511-00500

9451200800

main94512-00800

9461210500

main94612-10500

9461310800

main94613-10800

28 parts on this diagram · 1 diagram in section
